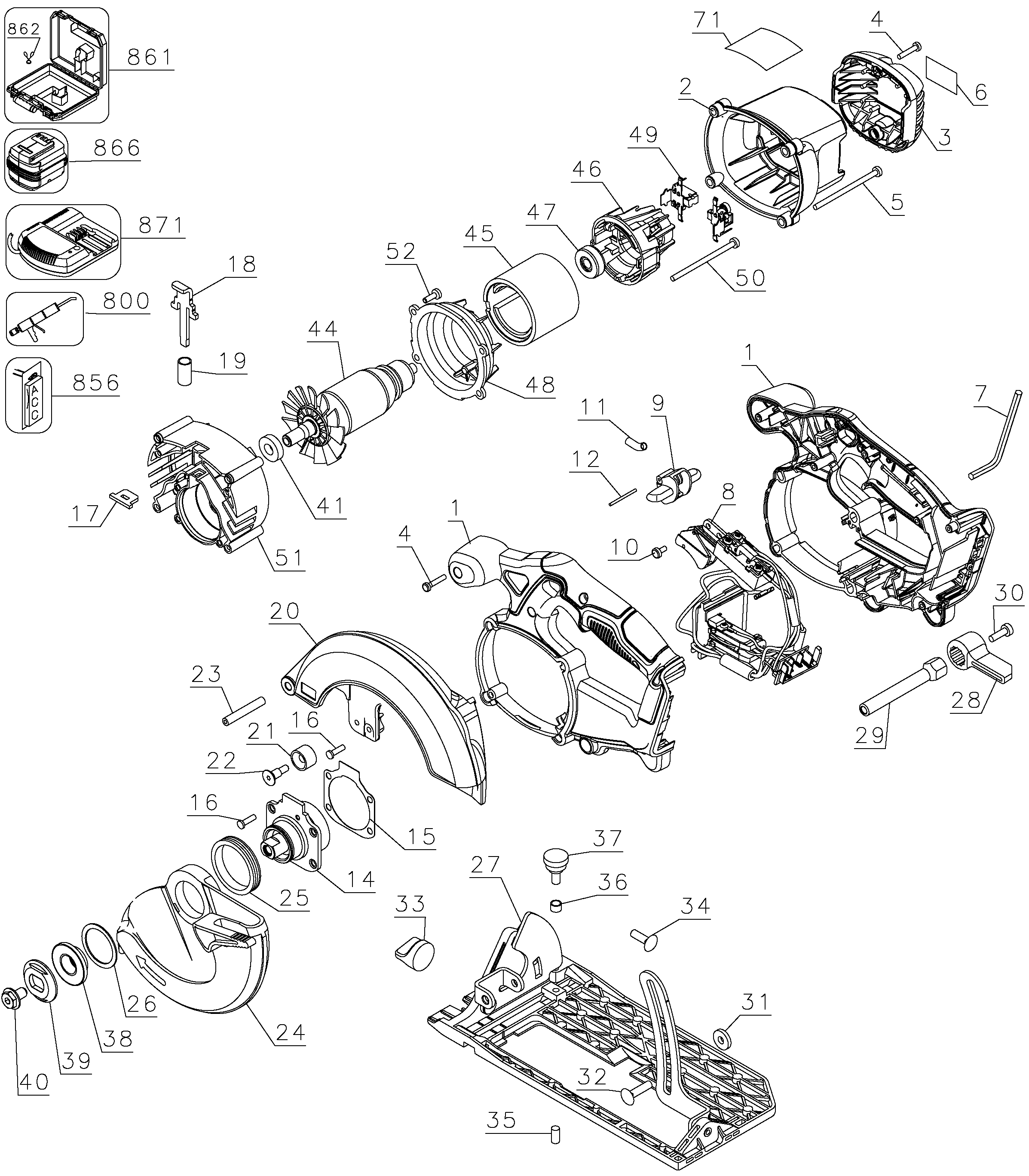

DCS391B CORDLESS CIRCULAR SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N064324 | 1 | CLAMSHELL SET | B3 | |||
| 2 | N054423 | 1 | MOTOR COVER | B3 | |||
| 3 | N173219 | 1 | END CAP | B3 | |||
| 4 | 330019-04 | 8 | SCREW | B3 | |||
| 5 | 398987-00 | 4 | SCREW | B3 | |||
| 6 | N094669 | 1 | ID LABEL | B3 | |||
| 7 | 098000-11 | 1 | HEX KEY | B3 | |||
| 8 | N092315 | 1 | SWITCH ASSEMBLY | B3 | |||
| 9 | 605107-00 | 1 | BUTTON LOCK-OFF | B3 | |||
| 10 | 330019-40 | 1 | SCREW | B3 | |||
| 11 | 389120-00 | 1 | SPRING | B3 | |||
| 12 | 388531-00 | 1 | PIN | B3 | |||
| 14 | 659417-00SV | 1 | SPINDLE SA | B3 | |||
| 15 | 605081-01 | 1 | GASKET | B3 | |||
| 16 | 613783-00 | 8 | SCREW | B3 | |||
| 17 | 605094-00 | 1 | WIPER | B3 | |||
| 18 | 629444-00 | 1 | SPINDLE LOCK | B3 | |||
| 19 | 058698-00 | 1 | SPRING | B3 | |||
| 20 | N086834 | 1 | UPPER GUARD | B3 | |||
| 21 | N248899 | 1 | BUMPER | B3 | |||
| 22 | 610134-00 | 1 | SCREW | B3 | |||
| 23 | 614048-00 | 1 | SPIROL PIN | B3 | |||
| 24 | 611925-00 | 1 | GUARD LOWER | B3 | |||
| 25 | N035365 | 1 | SPRING | B3 | |||
| 26 | 150383-00 | 1 | RETAINER | B3 | |||
| 27 | 605076-00SV | 1 | SHOE SA | B3 | |||
| 28 | 605105-00 | 1 | LEVER | B3 | |||
| 29 | 618901-00 | 1 | SHAFT | B3 | |||
| 30 | 330045-14 | 1 | SCREW | B3 | |||
| 31 | N112241 | 1 | WASHER | B3 | |||
| 32 | 098128-85 | 1 | CARRIAGE BOLT | B3 | |||
| 33 | 395889-00 | 1 | KNOB | B3 | |||
| 34 | N022876 | 1 | CARRIAGE BOLT | M6x1.0x25 NYLOCK | B3 | ||
| 35 | 381069-00 | 1 | SCREW | B3 | |||
| 36 | 058287-00 | 1 | SPRING | B3 | |||
| 37 | 396992-02 | 1 | KNOB | MALE, 1/4-20 THD | B3 | ||
| 38 | 650109-00 | 1 | WASHER INNER CLAMP | B3 | |||
| 39 | N621119 | 1 | WASHER OUTER CLAMP | B3 | |||
| 40 | 648697-00 | 1 | BLADE BOLT | M8x1.25-6G-L.H. THREAD | B3 | ||
| 41 | 330003-64 | 1 | BEARING | B3 | |||
| 44 | N415778 | 1 | ARMATURE SA | B3 | |||
| 45 | 611202-00SV | 1 | MAGNET | B3 | |||
| 46 | N171820 | 1 | SUPPORT BEARING | B3 | |||
| 47 | 391032-00 | 1 | BEARING & SEAL | B3 | |||
| 48 | 610124-01 | 1 | BAFFLE | B3 | |||
| 49 | 610126-00 | 2 | BRUSHBOX SA | B3 | |||
| 50 | 330019-25 | 2 | SCREW | B3 | |||
| 51 | N068175SV | 1 | GEARCASE SA | B3 | |||
| 52 | 330045-45 | 4 | SCREW | B3 | |||
| 71 | N126171 | 1 | NAME PLATE | B3 | |||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B3 | ||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | B3 | ||
| 856 | N703809 | 1 | BLADE | 6 1/2 -16T 5/8 Arbor | B3 | ||
| 856 | 381091-00 | 1 | GUIDE | imperial | Not Included with Unit | B3 | |
| 861 | N153976 | 1 | KITBOX | Not Included with Unit | B3 | ||
| 862 | 605265-00 | 1 | SPRING CLIP | Not Included with Unit | B3 | ||
| 866 | DCB200 | 1 | BATTERY PACK | 20V MAX 3.0Ah SOC | Not Included with Unit | B3 | |
| 871 | DCB115 | 1 | CHARGER | 12-20V 4 Amp | Not Included with Unit | B3 |
