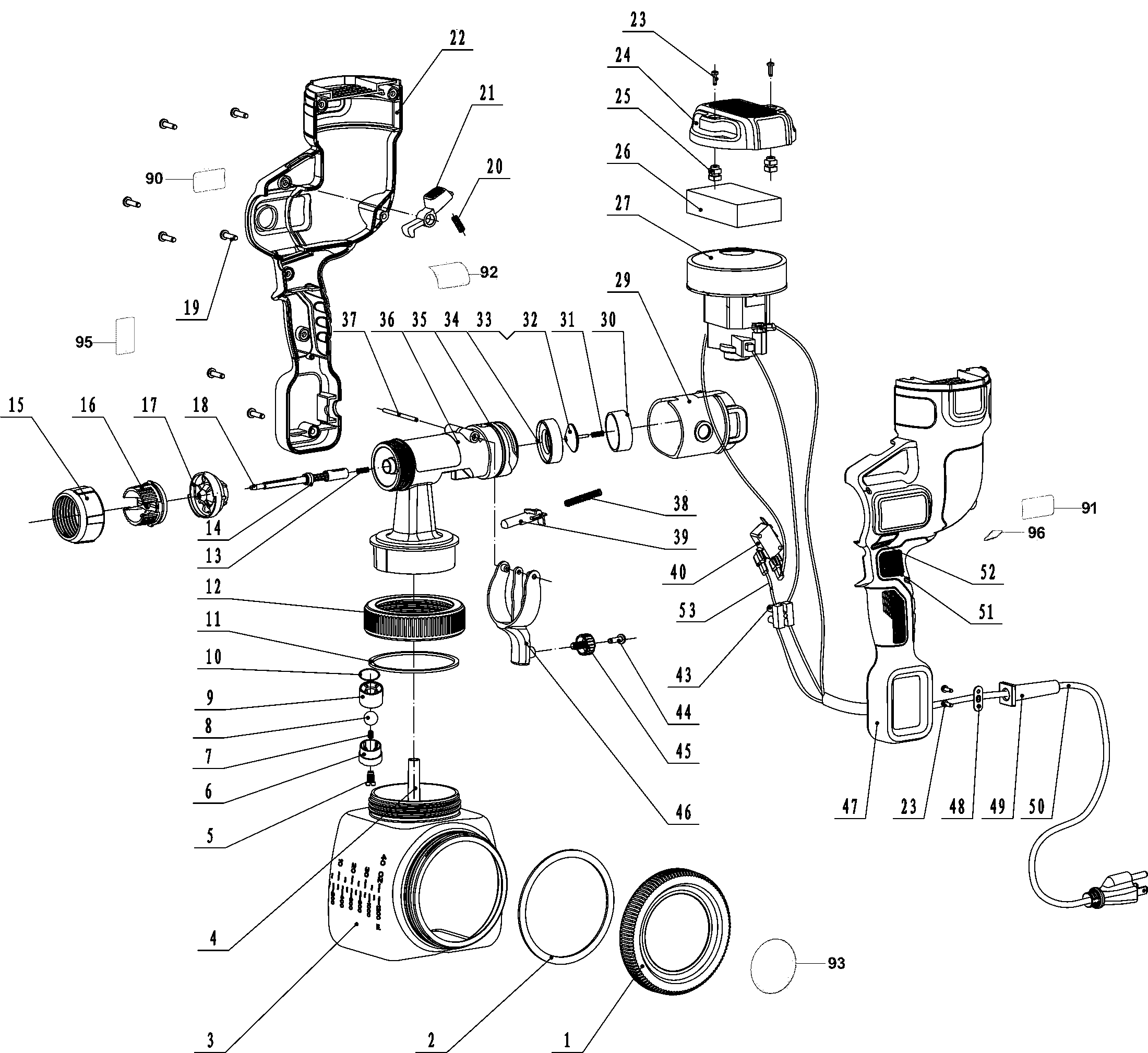

BDPH200B SPRAYER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004570-02 | 1 | COVER | B3 | |||
| 2 | 1004570-01 | 1 | SEAL | B3 | |||
| 3 | 90573633 | 1 | CANISTER | B3 | |||
| 4 | 90573632 | 1 | SUCTION TUBE | B3 | |||
| 5 | 5140127-89 | 1 | CHECK VALVE SCREW | B3 | |||
| 6 | 5140127-88 | 1 | CHECK VALVE BASE | B3 | |||
| 7 | 5140127-87 | 1 | CHECK VALVE SPRING | B3 | |||
| 8 | 5140127-86 | 1 | CHECK VALVE BALL | B3 | |||
| 9 | 5140127-85 | 1 | CHECK VALVE CAP | B3 | |||
| 10 | 5140127-63 | 1 | O-RING | B3 | |||
| 11 | 90573630 | 1 | O-RING | 67x3MM | B3 | ||
| 12 | 1004570-24 | 1 | LID | B3 | |||
| 13 | 5140128-00 | 1 | NEEDLE SPRING | B3 | |||
| 14 | 5140127-80 | 2 | O-RING | B3 | |||
| 15 | 5140127-80 | 1 | O-RING | B3 | |||
| 16 | 5140127-83 | 1 | WIND TIP | B3 | |||
| 17 | 5140127-82 | 1 | SPRAY NOZZLE | B3 | |||
| 18 | 5140128-01 | 1 | NEEDLE | B3 | |||
| 19 | 1004570-17 | 7 | SCREW | 4x16 | B3 | ||
| 20 | 5140128-02 | 1 | SPRING | Detach | B3 | ||
| 21 | 5140128-03 | 1 | BUTTON | Detach | B3 | ||
| 22 | 5140160-04 | 1 | CLAMSHELL SET | B3 | |||
| 23 | 5140112-29 | 4 | SCREW | B3 | |||
| 24 | 5140112-30 | 1 | COVER | B3 | |||
| 25 | 5140128-06 | 2 | SCREW FIXING SEAT | B3 | |||
| 26 | 5140128-07 | 1 | FILTER | B3 | |||
| 27 | 5140128-08 | 1 | MOTOR | B3 | |||
| 29 | 5140128-09 | 1 | COUPLER | Rear | B3 | ||
| 30 | 5140128-10 | 1 | SINGLE VALVE BASE | B3 | |||
| 31 | 5140128-11 | 1 | SPRING | Back | B3 | ||
| 32 | 5140128-12 | 1 | SINGLE VALVE TIP | B3 | |||
| 33 | 5140128-13 | 1 | SOFT VALVE PIECE | B3 | |||
| 34 | 5140128-14 | 1 | SINGLE VALVE CAP | B3 | |||
| 35 | 5140128-15 | 1 | O-RING | B3 | |||
| 36 | 5140128-16 | 1 | NEEDLE BASE | B3 | |||
| 37 | 5140127-90 | 1 | PIN | B3 | |||
| 38 | 5140128-17 | 1 | TRIGGER SPRING | B3 | |||
| 39 | 5140128-18 | 1 | TRIGGER SHAFT | B3 | |||
| 40 | 5140128-19 | 1 | SWITCH | B3 | |||
| 43 | 5140128-21 | 1 | TERMINAL BLOCK | B3 | |||
| 44 | 5140128-22 | 1 | SCREW | B3 | |||
| 45 | 5140128-23 | 1 | ADJUSTING KNOB | B3 | |||
| 46 | 5140128-24 | 1 | TRIGGER | B3 | |||
| 47 | 5140160-04 | 1 | CLAMSHELL SET | B3 | |||
| 48 | 5140128-26 | 1 | CORD CLAMP | B3 | |||
| 49 | 1004570-03 | 1 | SLEEVE | B3 | |||
| 50 | 5140127-71 | 1 | CORD | B3 | |||
| 51 | 5140160-04 | 1 | CLAMSHELL SET | B3 | |||
| 52 | 5140128-27 | 1 | INDICATOR WINDOW | B3 |
