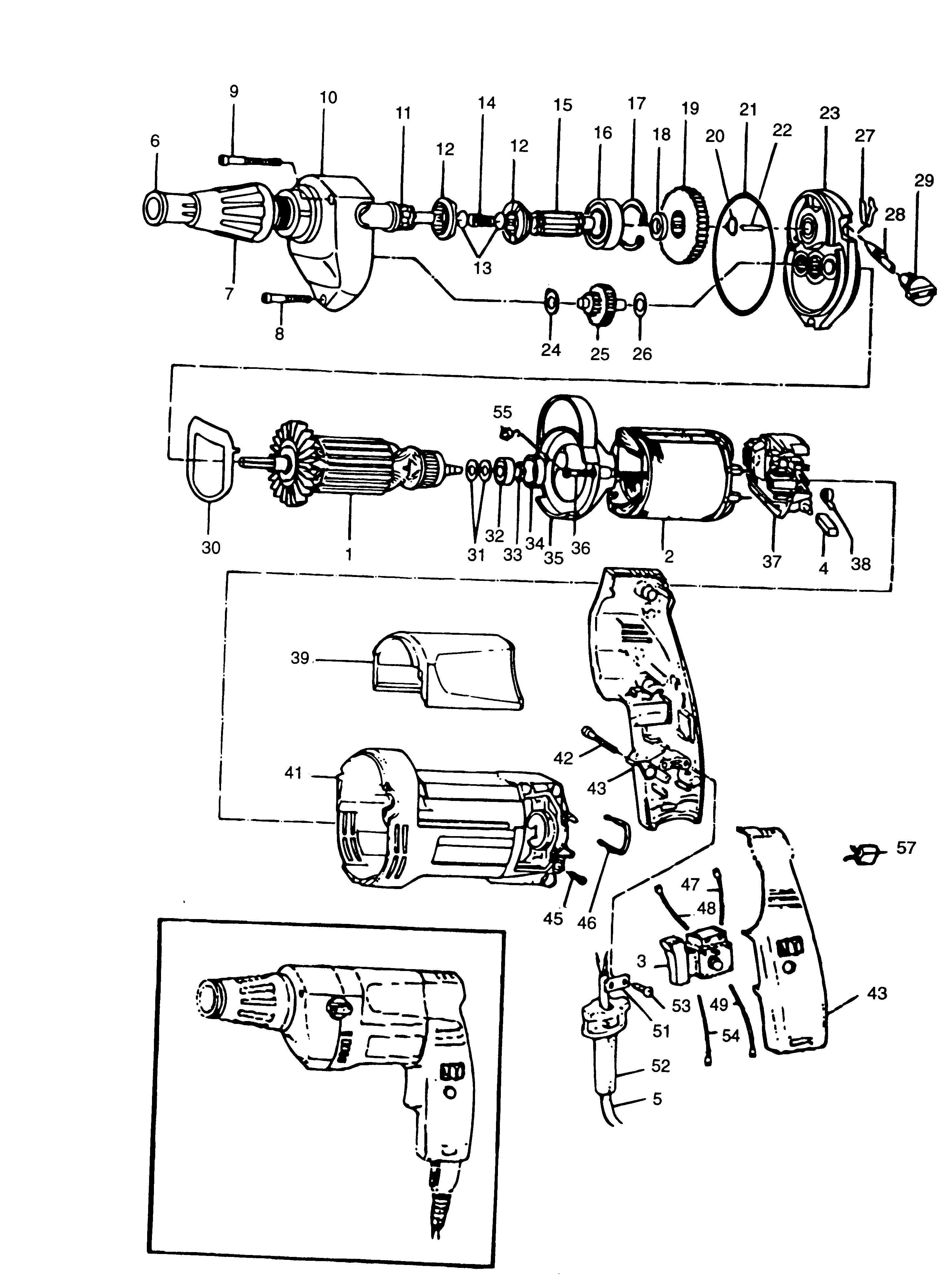

ESD706 SCREWDRIVER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 932955 | 1 | ARMATURE | GB 115V | CH | ||
| 1 | 932954 | 1 | ARMATURE | GB 240v | CH | ||
| 1 | 932954 | 1 | ARMATURE | CH | |||
| 2 | 934020 | 1 | FIELD | GB 115V | CH | ||
| 2 | 934022 | 1 | FIELD | GB 240v | CH | ||
| 2 | 934021 | 1 | FIELD 220/240V | CH | |||
| 3 | 940324-04 | 1 | SWITCH | GB 240v | CH | ||
| 3 | 940324-05 | 1 | SWITCH | GB 115V | CH | ||
| 3 | 940324-04 | 1 | SWITCH | CH | |||
| 4 | 930760-00 | 2 | BRUSH 230V | GB 240v | CH | ||
| 4 | 930760-00 | 2 | BRUSH 230V | CH | |||
| 4 | 930802-00 | 2 | BRUSH | GB 115V | CH | ||
| 5 | 949770-06 | 1 | CABLE & PLUG | GB 240v | CH | ||
| 5 | 330061-07 | 1 | CABLE SA | GB 115V | CH | ||
| 5 | 949843-14 | 1 | CABLE | CH | |||
| 6 | 933014 | 1 | BUSH | CH | |||
| 7 | 934263 | 1 | NOSE | CH | |||
| 8 | 931297-00 | 1 | SCREW | CH | |||
| 9 | 931298 | 2 | SCREW | CH | |||
| 10 | 932969-02 | 1 | GEARBOX SA | CH | |||
| 11 | 932986 | 1 | SHAFT | CH | |||
| 12 | 932990 | 2 | JOINT | CH | |||
| 13 | 932991 | 2 | RING SA | CH | |||
| 14 | 932984 | 1 | SPRING | CH | |||
| 15 | 932983 | 1 | HOLDER | CH | |||
| 16 | 932971 | 1 | BEARING | CH | |||
| 17 | 934392 | 1 | CIRCLIP | CH | |||
| 18 | 932992 | 1 | SPACER | CH | |||
| 19 | 932995 | 1 | GEAR | CH | |||
| 20 | 934378 | 1 | RING | CH | |||
| 21 | 931286 | 1 | SEAL | CH | |||
| 22 | 932985 | 1 | ROLLER | CH | |||
| 23 | 934261 | 1 | GEARCASE COVER SA | CH | |||
| 24 | 932269 | 1 | WASHER | CH | |||
| 25 | 936928 | 1 | GEAR & PINION | CH | |||
| 26 | 930102-00 | 1 | WASHER | CH | |||
| 27 | 933021 | 1 | SPRING | CH | |||
| 28 | 933022 | 1 | SCREW.TEMP | CH | |||
| 29 | 933020 | 1 | KNOB | CH | |||
| 30 | 935678 | 1 | SPRING | CH | |||
| 31 | 932933-00 | 2 | WASHER | CH | |||
| 32 | 330003-02 | 1 | BEARING | CH | |||
| 33 | 939624-00 | 1 | RING | CH | |||
| 34 | 930029-00 | 1 | HOLDER BEARING | CH | |||
| 35 | 932934 | 1 | BAFFLE | CH | |||
| 36 | 930752-00 | 2 | SCREW | CH | |||
| 37 | 938310-03 | 1 | BRUSH HOLDER SA | GB 240v | CH | ||
| 37 | 938310-03 | 1 | BRUSH HOLDER SA | CH | |||
| 37 | 938310-00 | 1 | BRUSH HOLDER SA | GB 115V | CH | ||
| 38 | 930090-00 | 2 | BRUSH SPRING | CH | |||
| 39 | 938241-02 | 1 | COVER | CH | |||
| 41 | 938890-00 | 1 | FIELDCASE | CH | |||
| 42 | 930079-01 | 4 | SCREW | CH | |||
| 43 | 940332-04 | 1 | HANDLE SA | CH | |||
| 45 | 931254-00 | 1 | SCREW | CH | |||
| 46 | 932930 | 1 | RING | CH | |||
| 48 | 940603-02 | 1 | LEAD | CH | |||
| 49 | 940603-01 | 1 | LEAD | CH | |||
| 51 | 930103-00 | 1 | CORD CLAMP | CH | |||
| 52 | 931113-00 | 1 | CORD PROTECTOR | CH | |||
| 53 | 930276 | 2 | SCREW | CH | |||
| 54 | 940603-00 | 1 | LEAD | CH | |||
| 55 | 933657-00 | 2 | CAP | CH | |||
| 57 | 949877-01 | 1 | CAPACITOR | CH | |||
| 60 | 932989 | 1 | BALL STEEL | PARTS NOT DRAWN | CH | ||
| 61 | 932988 | 1 | CIRCLIP | PARTS NOT DRAWN | CH |
