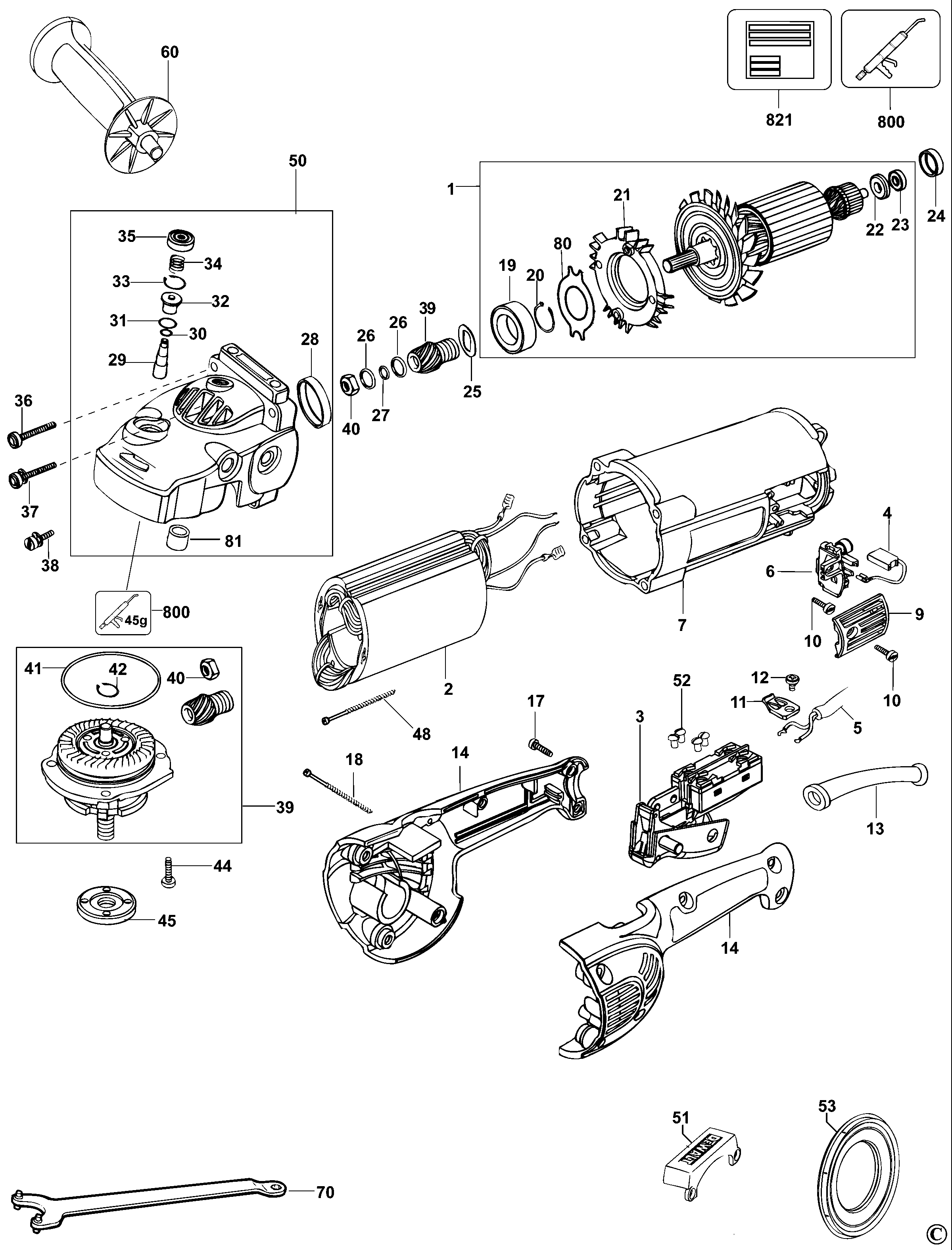

D28409 SANDER/GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N065055 | 1 | ARMATURE SA | 230v | B1 | ||
| 2 | 617004-06 | 1 | FIELD 230V | 230V | B1 | ||
| 3 | 394375-04 | 1 | SWITCH SA | B1 |  |
||
| 4 | N036459 | 1 | BRUSH PAIR 230V | B1 | |||
| 5 | 330120-40 | 1 | CABLE | B1 | |
||
| 6 | 617001-00 | 2 | BRUSH HOLDER SA | B1 | |
||
| 7 | 393239-00 | 1 | FIELD CASE | B1 | |
||
| 9 | 394387-00 | 2 | BRUSH COVER | B1 | |
||
| 10 | 330019-11 | 4 | SCREW | M4.55x13 T20 | B1 | |
|
| 11 | 608780-00 | 1 | CORD CLAMP | B1 |  |
||
| 12 | 330019-11 | 2 | SCREW | M4.55x13 T20 | B1 | |
|
| 13 | 604118-00 | 1 | CORD PROTECTOR | B1 | |
||
| 14 | 395184-00 | 1 | HANDLE SA | B1 | |
||
| 17 | 330019-32 | 4 | SCREW | B1 | |
||
| 18 | 330019-18 | 3 | SCREW | M4.55 x 50 PLASTIC THD FMG | B1 | ||
| 19 | 605040-27 | 1 | BEARING | B1 | |
||
| 20 | 398605-00 | 1 | RETAINER | B1 | |
||
| 21 | 614708-00 | 1 | SPACER | B1 | |
||
| 22 | 393238-00 | 1 | SHIELD | B1 | |
||
| 23 | N110359 | 1 | BEARING | B1 | |
||
| 23 | N110359 | 1 | BEARING | B1 | |
||
| 24 | 609970-00 | 1 | SLEEVE INSULATING | B1 | |
||
| 25 | 608568-00 | 1 | WASHER | B1 | |
||
| 26 | 607502-00 | 2 | WASHER | B1 | |
||
| 27 | 614045-00 | 1 | WASHER SPRING | B1 | |
||
| 28 | 609971-00 | 1 | SLEEVE | B1 | |
||
| 29 | 611212-00 | 1 | LOCK PIN | B1 | |||
| 30 | 603608-00 | 1 | O RING | B1 | |
||
| 31 | 050049-00 | 1 | RING | B1 | |
||
| 32 | 611213-00 | 1 | SLEEVE | B1 | |||
| 33 | 603470-00 | 1 | RETAINER | B1 | |
||
| 34 | 395029-00 | 1 | SPRING | B1 | |
||
| 35 | 610999-00 | 1 | CAP | B1 | |
||
| 36 | 330019-26 | 4 | SCREW | B1 | |
||
| 37 | 330045-70 | 2 | SCREW | M5X40 | B1 | ||
| 38 | 330045-67 | 1 | SCREW | B1 | |
||
| 39 | N064421 | 1 | GEARCASE COVER SA | B1 | |
||
| 40 | 609125-00 | 1 | LOCK NUT | B1 | |
||
| 41 | 397031-00 | 1 | O RING | B1 | |
||
| 42 | 034109-00 | 1 | RETAINER | B1 | |
||
| 44 | 330045-15 | 4 | SCREW | B1 | |
||
| 45 | 401678-05 | 1 | OUTER FLANGE | B1 | |
||
| 48 | 330019-19 | 2 | SCREW | B1 | |
||
| 50 | 398618-00 | 1 | GEARCASE SA | B1 | |
||
| 51 | 620579-00 | 1 | BUMPER | B1 | |
||
| 52 | 384127-01 | 4 | SCREW | B1 | |
||
| 53 | 614542-00 | 1 | BAFFLE | B1 | |||
| 60 | 651858-00 | 1 | SIDE HANDLE | B1 | |
||
| 70 | 401680-00 | 1 | WRENCH | B1 | |
||
| 80 | 613366-00 | 1 | INSERT | B1 | |
||
| 81 | 330004-06 | 1 | BEARING NEEDLE | B1 | |
||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B1 | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B1 | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | B1 | |
|
| 821 | N028859 | 1 | RATING PLATE | B1 |
