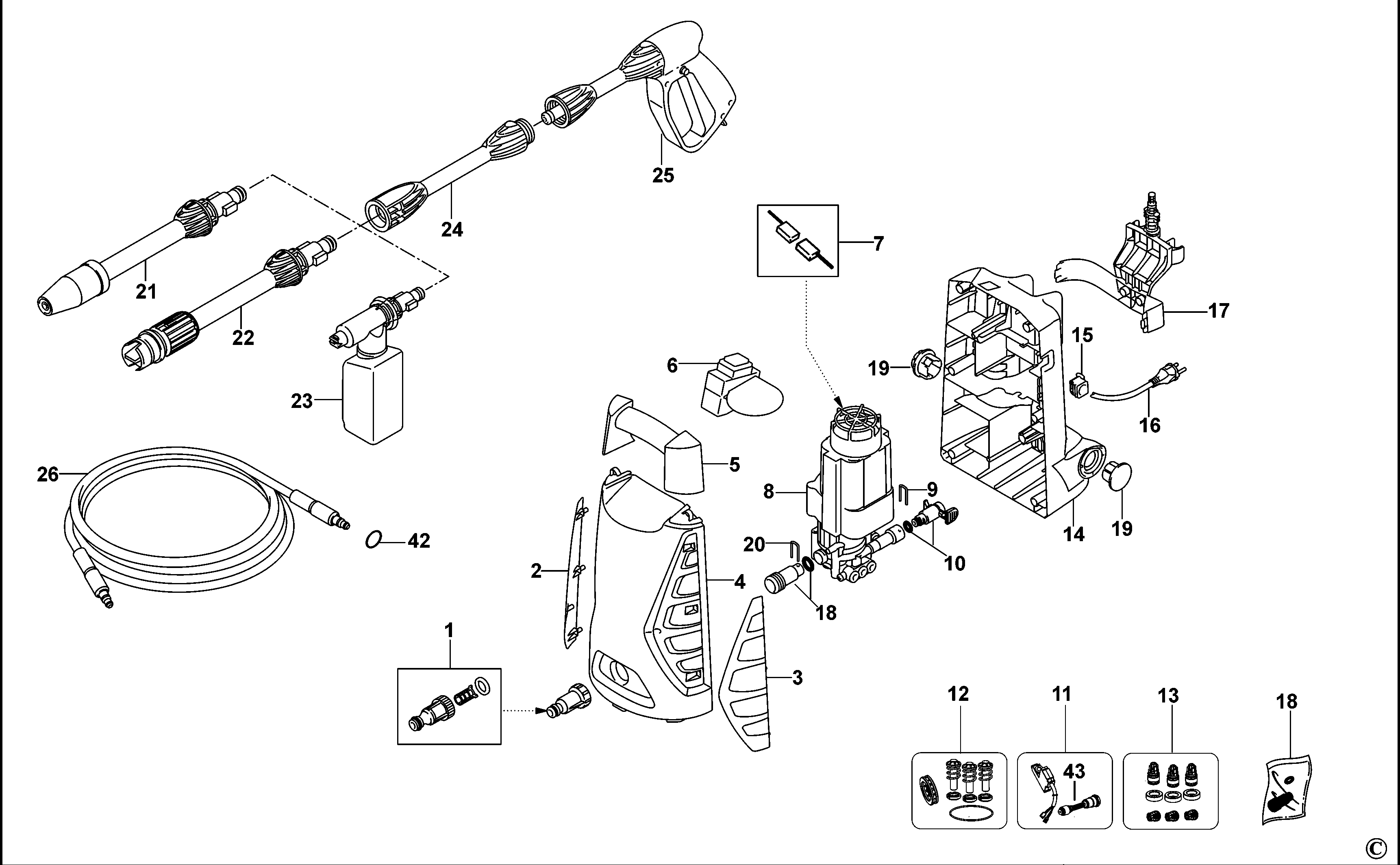

PW1370TD PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004455-15 | 1 | FILTER & INLET KIT | XD | |||
| 2 | 1004512-01 | 1 | DOOR | XD |  |
||
| 3 | 1004512-02 | 1 | DOOR | XD | |
||
| 4 | 1004512-03 | 1 | HOUSING FRONT | XD | |
||
| 5 | 1004512-04 | 1 | HANDLE | XD | |
||
| 6 | 1004512-05 | 1 | SWITCH | XD |  |
||
| 7 | 1004512-06 | 1 | BRUSH KIT | XD | |
||
| 8 | 1004512-07 | 1 | MOTOR & PUMP SA 240V | XD | |
||
| 9 | 1004512-08 | 1 | FORK | XD | |
||
| 10 | 1004512-09 | 1 | OUTLET | XD | |
||
| 11 | 1004512-10 | 1 | SWITCH KIT 220V | XD | |
||
| 12 | 1004512-11 | 1 | PISTONS & SEALS KIT | XD | |
||
| 13 | 1004512-12 | 1 | VALVES & SEALS KIT | XD | |
||
| 14 | 1004512-13 | 1 | BASE | XD | |
||
| 15 | 1004455-07 | 1 | GLAND | XD | |
||
| 16 | 5170000-88 | 1 | CORDSET | XD | |||
| 17 | 1004512-16 | 1 | CARRIER | XD | |
||
| 18 | 1004512-17 | 1 | SUCTION GROUP | XD | |
||
| 19 | 1004512-18 | 2 | CAP | XD | |
||
| 20 | 1004512-19 | 1 | FORK | XD | |
||
| 21 | 1004512-20 | 1 | SPRAY SA | XD | |
||
| 22 | 5170041-71 | 1 | SPRAY SA | XD | |
||
| 23 | 1004512-21 | 1 | TANK | XD | |
||
| 24 | 1004455-23 | 1 | EXTENSION | XD | |
||
| 25 | 1004455-24 | 1 | ADJUSTER HANDLE | XD | |
||
| 26 | 1004512-22 | 1 | HOSE SA | XD | |
||
| 26 | 1004512-68 | 1 | HOSE SA, REINFORCED | XD | |||
| 42 | 5170000-32 | 1 | O RING | XD |
