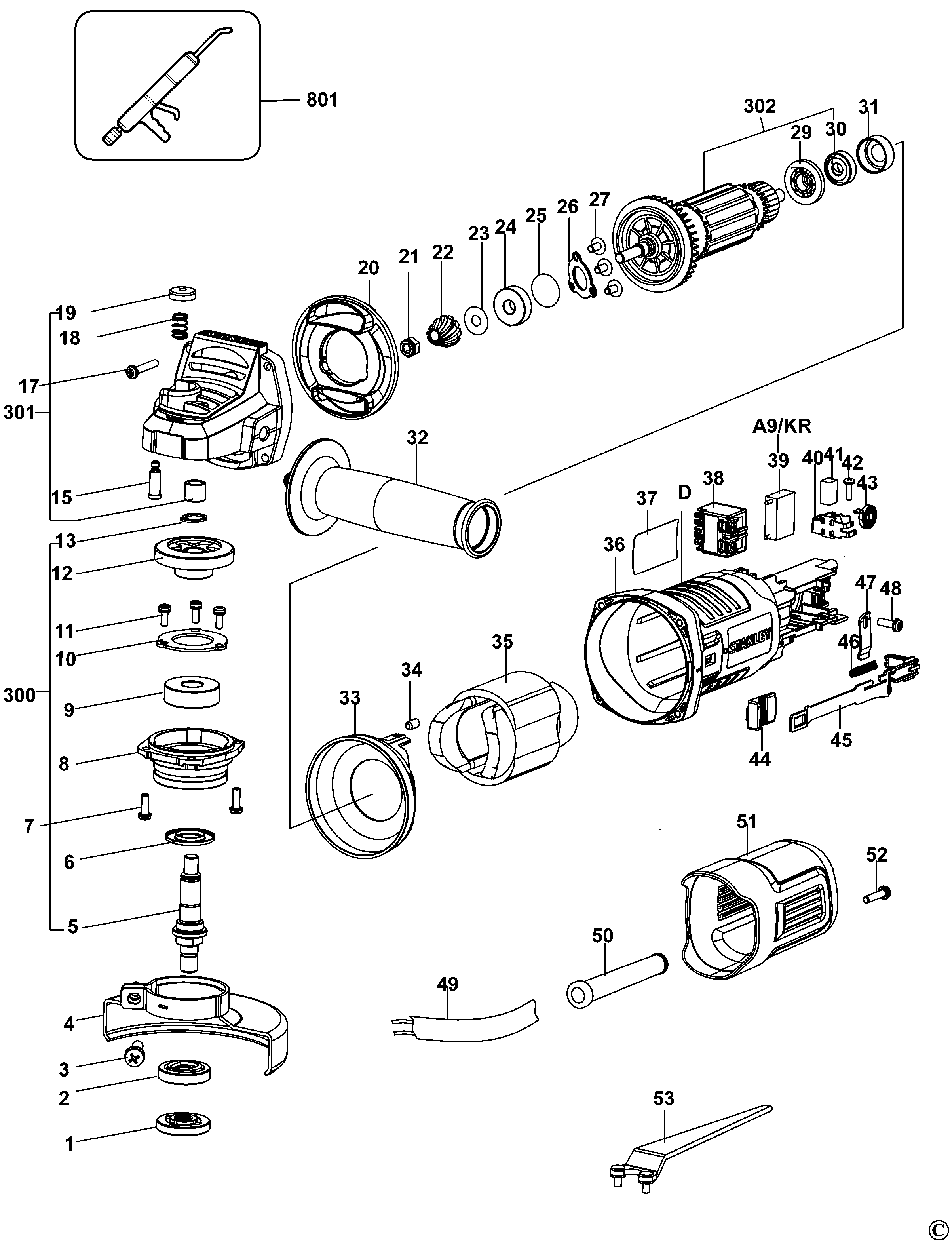

STGS9100 SMALL ANGLE GRINDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N862876 | 1 | OUTER FLANGE | B1 |  |
||
| 2 | N803469 | 1 | INNER FLANGE | B1 |  |
||
| 3 | N866043 | 1 | SCREW | B1 | |
||
| 4 | 4140304008 | 1 | GUARD SA | B1 | |
||
| 5 | N613148 | 1 | SPINDLE | B1 | |
||
| 6 | N494772 | 1 | COVER | B1 | |
||
| 7 | 49209042 | 4 | SCREW | B1 | |
||
| 8 | N866050 | 1 | GEARCASE COVER | B1 | |
||
| 9 | 49111017 | 1 | BEARING | B1 | |
||
| 10 | N787677 | 1 | BEARING PLATE | B1 | |
||
| 11 | 49203006 | 3 | SCREW | 4 x 10 mm; 4*10 | B1 | ||
| 12 | N802377 | 1 | GEAR | B1 | |
||
| 13 | N851381 | 1 | CIRCLIP | B1 | |
||
| 15 | N743788 | 1 | LOCK PIN | B1 | |
||
| 17 | N802853 | 4 | SCREW | B1 | |
||
| 18 | 4140308003 | 1 | SPRING | B1 | |
||
| 19 | 4140301012 | 1 | LOCK BUTTON | B1 | |
||
| 20 | N726572 | 1 | BAFFLE | B1 | |
||
| 21 | N867028 | 1 | NUT | B1 | |
||
| 22 | N802378 | 1 | PINION | B1 | |
||
| 23 | 4140304012 | 1 | WASHER | 6 x 16.5 x 0.2 mm; 6*16.5*0.2 | B1 | |
|
| 24 | N793193 | 1 | BEARING | B1 | |
||
| 25 | N880529 | 1 | O RING | B1 | |
||
| 26 | N826429 | 1 | BEARING PLATE | B1 | |
||
| 27 | N826930 | 3 | SCREW | B1 | |
||
| 29 | 4140301009 | 1 | WASHER INSULATING | B1 | |
||
| 30 | N793199 | 1 | BEARING | B1 | |
||
| 31 | 4140303002 | 1 | SLEEVE BEARING | B1 | |
||
| 32 | N865425 | 1 | SIDE HANDLE | B1 | |
||
| 33 | N757714 | 1 | BAFFLE | B1 | |
||
| 34 | 4240203008 | 2 | RUBBER | PIN | B1 | |
|
| 35 | N794274 | 1 | FIELD SA | B1 | |
||
| 36 | N703582 | 1 | FIELD CASE | B1 | |
||
| 37 | N845755 | 1 | RATING LABEL | B1 | |
||
| 38 | N622597 | 1 | SWITCH | B1 | |
||
| 40 | N767128 | 2 | BRUSH HOLDER | B1 | |
||
| 41 | N875883 | 1 | BRUSH PAIR | B1 | |
||
| 42 | N810030 | 2 | SCREW | B1 | |
||
| 43 | 4140308002 | 1 | BRUSH SPRING | B1 | |
||
| 44 | 4141401003 | 1 | BUTTON | B1 | |
||
| 45 | N745222 | 1 | ARM LINK | B1 | |
||
| 46 | 4140308001 | 1 | SPRING | B1 | |
||
| 47 | 4140301013 | 1 | CORD CLAMP | B1 | |
||
| 48 | 49206016 | 1 | SCREW | self-tapping 4*12; self-tapping 4x12 mm | B1 | |
|
| 49 | Z49306009-1 | 1 | CORDSET | B1 | |
||
| 50 | N802854 | 1 | CORD PROTECTOR | B1 | |
||
| 51 | N703584 | 1 | END CAP | B1 | |
||
| 52 | 49206018 | 1 | SCREW | SELF-TAPPING 4*15 | B1 | |
|
| 53 | 4140304007 | 1 | WRENCH SET | B1 | |
||
| 300 | N909280 | 1 | OUTPUT SHAFT SA | B1 | |
||
| 301 | N875885 | 1 | GEARCASE SA | B1 | |
||
| 302 | N910746 | 1 | ARMATURE SA | B1 | |
||
| 801 | N910760 | 1 | GREASE | B1 | |
