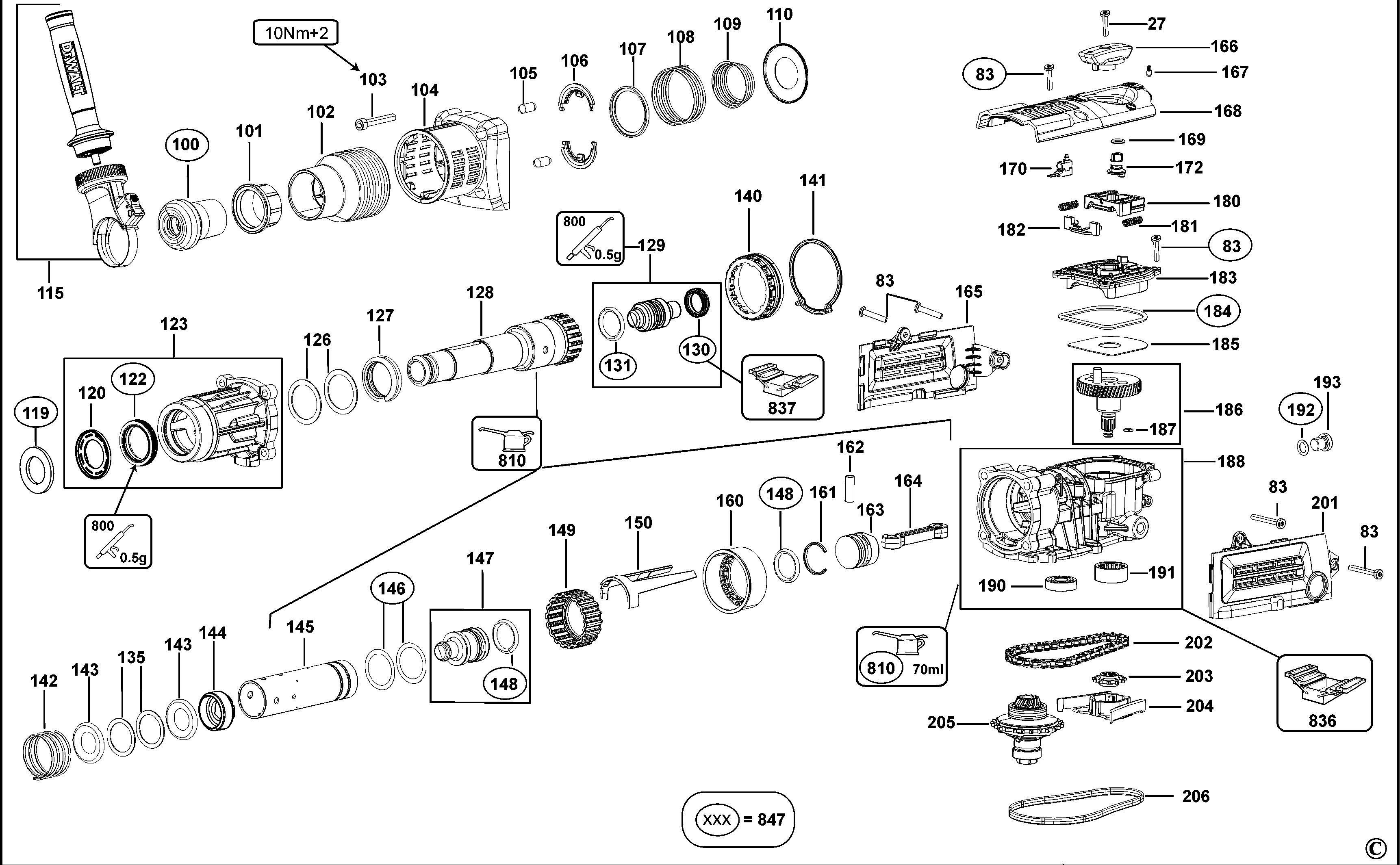

D25601K ROTARY HAMMER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N046420 | 1 | ARMATURE 230V | B2 | |||
| 2 | N041827 | 1 | FIELD 230V | B2 | |||
| 3 | N047284 | 1 | HOUSING SA | B2 | |||
| 4 | 330003-39 | 1 | BEARING | B2 | |||
| 5 | 327141-03 | 1 | SEAL | B2 | |||
| 6 | 577746-00 | 1 | RING | B2 | |||
| 9 | 330065-21 | 2 | SCREW | B2 | |||
| 11 | 1007970-00 | 2 | CONNECTOR | B2 | |||
| 12 | N020117 | 1 | CABLE | L/C | B2 | ||
| 20 | N110359 | 1 | BEARING | B2 | |||
| 21 | 1007732-00 | 1 | SLEEVE | B2 | |||
| 22 | 1007798-00 | 1 | BRIDGE | B2 | |||
| 23 | N047446 | 1 | BRUSH & HOLDER 230V | B2 | |||
| 24 | N047424 | 1 | BRUSH PAIR 230V | B2 | |||
| 25 | N047444 | 1 | BRUSH & HOLDER 230V | B2 | |||
| 26 | N481200 | 1 | BAFFLE | B2 | |||
| 27 | 330065-08 | 25 | SCREW | M4x18 T20 | B2 | ||
| 28 | 1006592-01 | 1 | FAN SA | B2 | |||
| 29 | 324119-02 | 1 | SCREW | B2 | |||
| 40 | 1006577-00 | 1 | END CAP | B2 | |||
| 41 | 1006576-02 | 1 | MOTOR COVER | B2 | |||
| 42 | N565615 | 1 | GACC MODULE 230V | B2 | |||
| 49 | 1005672-00 | 1 | SCREW | B2 | |||
| 50 | N532301 | 1 | COVERPLATE | B2 | |||
| 60 | 1007569-00 | 1 | SPRING | B2 | |||
| 61 | 1007567-00 | 1 | BUSH | B2 | |||
| 62 | 1007566-00 | 1 | STOP | B2 | |||
| 63 | 1007565-00 | 1 | BELLOWS | B2 | |||
| 64 | 1006579-01 | 1 | SWITCH HANDLE | B2 | |||
| 65 | 587114-01 | 1 | TRIGGER | B2 | |||
| 66 | N467530 | 1 | SWITCH | B2 | |||
| 67 | 1006580-00 | 1 | HANDLE COVER | B2 | |||
| 72 | 582573-01 | 1 | CORDSET | B2 | |||
| 80 | 1008678-00 | 1 | BELLOWS | B2 | |||
| 81 | N038214 | 2 | BUSH | B2 | |||
| 82 | N062047 | 1 | PIN | B2 | |||
| 83 | 324007-11 | 19 | SCREW | M5 X 18 | B2 | ||
| 85 | 821070 | 1 | CORD CLAMP | B2 | |||
| 86 | 323091-01 | 1 | CORD PROTECTOR | B2 | |||
| 88 | 1008391-00 | 1 | COVER | B2 | |||
| 90 | N532302 | 1 | GUIDE | B2 | |||
| 100 | 329816-00 | 1 | LIP SEAL | B2 | |||
| 101 | 326575-01 | 1 | COLLAR | B2 | |||
| 102 | 479247-00 | 1 | SLEEVE SA | B2 | |||
| 103 | 918825-02 | 1 | SCREW | B2 | |||
| 104 | 1006572-00 | 1 | COVER | B2 | |||
| 105 | 325878-00 | 2 | ROLLER | B2 | |||
| 106 | 325929-00 | 2 | HALF WASHER | B2 | |||
| 107 | 327208-00 | 1 | GUIDE | B2 | |||
| 108 | 323395-06 | 1 | SPRING | B2 | |||
| 109 | 487118-00 | 1 | SPRING | B2 | |||
| 110 | N313860 | 1 | GUIDE | B2 | |||
| 115 | N501145 | 1 | SIDE HANDLE | B2 | |||
| 119 | N038151 | 1 | FELT | B2 | |||
| 120 | N045793 | 1 | BUSH | B2 | |||
| 122 | 1007828-00 | 1 | SEAL | 32x42x7/9 | B2 | ||
| 123 | N041835 | 1 | HOUSING | Inc 120, 122 | Inc. 120,122 | B2 | |
| 126 | 1005982-00 | 2 | WASHER | B2 | |||
| 127 | 496191-00 | 1 | DAMPER | B2 | |||
| 128 | N041834 | 1 | SPINDLE | B2 | |||
| 129 | N041847 | 1 | BEAT PIECE | B2 | |||
| 130 | N244259 | 1 | SEAL | B2 | |||
| 131 | 323711-10 | 1 | O RING | B2 | |||
| 135 | N064329 | 2 | WASHER | B2 | |||
| 140 | 494857-00 | 1 | BUSH | B2 | |||
| 141 | 1006283-00 | 1 | GASKET | B2 | |||
| 142 | 1005748-00 | 1 | SPRING | 2X40.2 | B2 | ||
| 143 | N210233 | 2 | O RING | B2 | |||
| 144 | 1006778-00 | 1 | BUSH | B2 | |||
| 145 | N041846 | 1 | CYLINDER | B2 | |||
| 146 | 577744-00 | 2 | O RING | 25.5 X 2 | B2 | ||
| 147 | N041845 | 1 | RAM | 5KG | B2 | ||
| 148 | 576232-01 | 2 | O RING | 23 X 4 | B2 | ||
| 149 | N041844 | 1 | SLEEVE | B2 | |||
| 150 | 1005749-00 | 1 | SELECTOR FORK | B2 | |||
| 160 | N041842 | 1 | BEVEL GEAR | B2 | |||
| 161 | 325905-00 | 1 | RETAINER | B2 | |||
| 162 | 330041-22 | 1 | PIN | B2 | |||
| 163 | N041843 | 1 | PISTON | B2 | |||
| 164 | 494724-00 | 1 | CON ROD | B2 | |||
| 165 | N511772 | 1 | COVER RH | Black | B2 | ||
| 166 | 1006786-00 | 1 | SELECTOR | B2 | |||
| 167 | 326467-00 | 1 | DETENT | B2 | |||
| 168 | 1006575-00 | 1 | COVER-TOP | B2 | |||
| 169 | 323711-57 | 1 | O RING | 8 X 2.2 | B2 | ||
| 170 | N019533 | 1 | MICRO SWITCH | B2 | |||
| 172 | 496856-00 | 1 | ECCENTRIC | B2 | |||
| 180 | 1006784-00 | 1 | SLIDER | 5 KG | B2 | ||
| 181 | 323395-32 | 2 | SPRING | B2 | |||
| 182 | 1006783-00 | 1 | CONNECTOR | 5 KG | B2 | ||
| 183 | 496857-00 | 1 | COVER | B2 | |||
| 184 | 323711-59 | 1 | O RING | 65 X 4 | B2 | ||
| 185 | 1006785-00 | 1 | PLATE | B2 | |||
| 186 | N041841 | 1 | CRANKSHAFT | 5 KG | B2 | ||
| 187 | 323711-26 | 1 | O RING | B2 | |||
| 188 | N527066 | 1 | HOUSING SA | inc 190 + 191 | B2 | ||
| 190 | 577745-01 | 1 | BEARING,BALL | B2 | |||
| 191 | 586301-00 | 1 | BEARING,NEEDLE | B2 | |||
| 192 | 323711-57 | 1 | O RING | 8 X 2.2 | B2 | ||
| 193 | 1008427-00 | 1 | SCREW.SPECIAL | B2 | |||
| 201 | N511771 | 1 | COVER LH | Black | B2 | ||
| 202 | N041839 | 1 | CHAIN | P8 X 40 | B2 | ||
| 203 | N041837 | 1 | GEAR | B2 | |||
| 204 | 1006280-00 | 1 | GUIDE | B2 | |||
| 205 | N551770 | 1 | CLUTCH SA | 1 STEP | | B2 |
| |
| 206 | 1006282-00 | 1 | GASKET | B2 | |||
| 300 | N454223 | 1 | BRUSH COVER | B2 | |||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | B2 | ||
| 810 | N040237 | 1 | TUBE OIL | Renolin PG150 - 90ml | B2 | ||
| 816 | N064908 | 1 | BRAND LABEL | B2 | |||
| 817 | 487395-01 | 1 | LABEL | B2 | |||
| 821 | N554403 | 1 | RATING LABEL | B2 | |||
| 836 | 559645-99 | 1 | S.T.SEAL FITTING TOOL | B2 | |||
| 847 | N095940 | 1 | SERVICE KIT 230V | B2 | |||
| 861 | 574931-22 | 1 | KITBOX | B2 |
