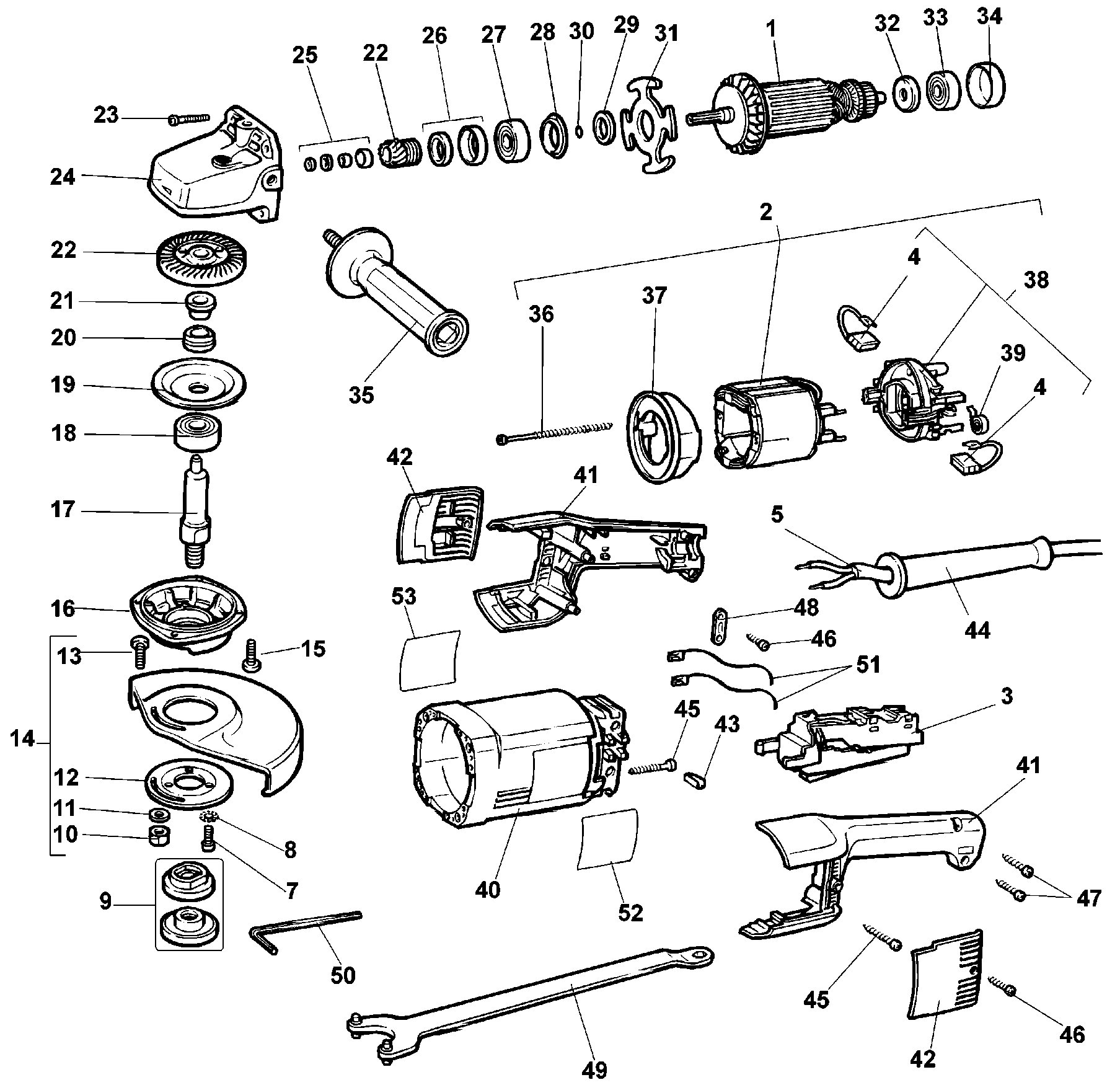

DW848 ANGLE GRINDER Type 5 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 186178-01 | 1 | ARMATURE | 220v | AR | ||
| 2 | 186179-01 | 1 | FIELD | 220V | AR | ||
| 3 | 949825-04 | 1 | SWITCH LOCK-ON | AR | |||
| 4 | 940160-03 | 2 | BRUSH CUT OFF 230V | AR | |||
| 5 | 185283-01 | 1 | CORD & PLUG | AR | |||
| 7 | 933058-00 | 3 | SCREW | AR | |||
| 8 | 932369 | 3 | WASHER | AR | |||
| 9 | 947451-03 | 1 | FLANGE ASSY. | AR | |||
| 10 | 860083-03 | 1 | NUT | AR | |||
| 11 | 930925 | 1 | WASHER | AR | |||
| 12 | 930929 | 1 | FLANGE | AR | |||
| 13 | 949892-07 | 1 | SCREW | AR | |||
| 14 | 932525-02 | 1 | GUARD 7" | AR | |||
| 15 | 330024-14 | 4 | SCREW,PLASTIC | AR | |||
| 16 | 947962-00 | 1 | GEARCASE COVER | AR | |||
| 17 | 578243-00 | 1 | SPINDLE | AR | |||
| 18 | 574853-11 | 1 | BEARING | AR | |||
| 19 | 930924 | 1 | FLANGE | AR | |||
| 20 | 930923 | 1 | SEAL | AR | |||
| 21 | 930922 | 1 | SPACER | AR | |||
| 22 | 932576 | 1 | GEAR & PINION | AR | |||
| 23 | 186210-00 | 4 | SCREW | AR | |||
| 24 | 401048-00 | 1 | GEARCASE SA | AR | |||
| 25 | 937098 | 1 | CLIP SA | AR | |||
| 26 | 930909 | 1 | SEAL SA | AR | |||
| 27 | 330003-14 | 1 | BEARING | AR | |||
| 28 | 931067 | 1 | SEAL SA | AR | |||
| 29 | 931062 | 1 | SPACER | AR | |||
| 30 | 930028-00 | 1 | O RING | AR | |||
| 31 | 931066 | 1 | FLANGE | AR | |||
| 32 | 938331 | 1 | SPACER | AR | |||
| 33 | 330003-36 | 1 | BEARING | AR | |||
| 34 | 938332 | 1 | SLEEVE | AR | |||
| 35 | 933499 | 1 | HANDLE SIDE SA | AR | |||
| 36 | 931072 | 2 | SCREW | AR | |||
| 37 | 402808-00 | 1 | BAFFLE | AR | |||
| 38 | 949405-03 | 1 | BRUSH PLATE SA | AR | |||
| 39 | 402816-00 | 2 | SPRING | AR | |||
| 40 | 578193-00 | 1 | FIELD CASE | AR | |||
| 41 | 578194-00 | 1 | HANDLE & COVER | AR | |||
| 42 | 933364-02 | 2 | COVER | AR | |||
| 43 | 930934 | 4 | SHOCK ABSORBER | AR | |||
| 44 | 947964-01 | 1 | CORD PROTECTOR | AR | |||
| 45 | 931297-00 | 4 | SCREW | AR | |||
| 46 | 931469-02 | 4 | SCREW | AR | |||
| 47 | 930284-01 | 2 | SCREW | AR | |||
| 48 | 931477 | 1 | CORD CLAMP | AR | |||
| 49 | 938733 | 1 | WRENCH PIN | AR | |||
| 50 | 807043 | 2 | WRENCH | 4mm | AR | ||
| 51 | 403462-00 | 2 | LEAD | AR | |||
| 52 | 578506-14 | 1 | NAMEPLATE | DW848-AR/B2 | AR | ||
