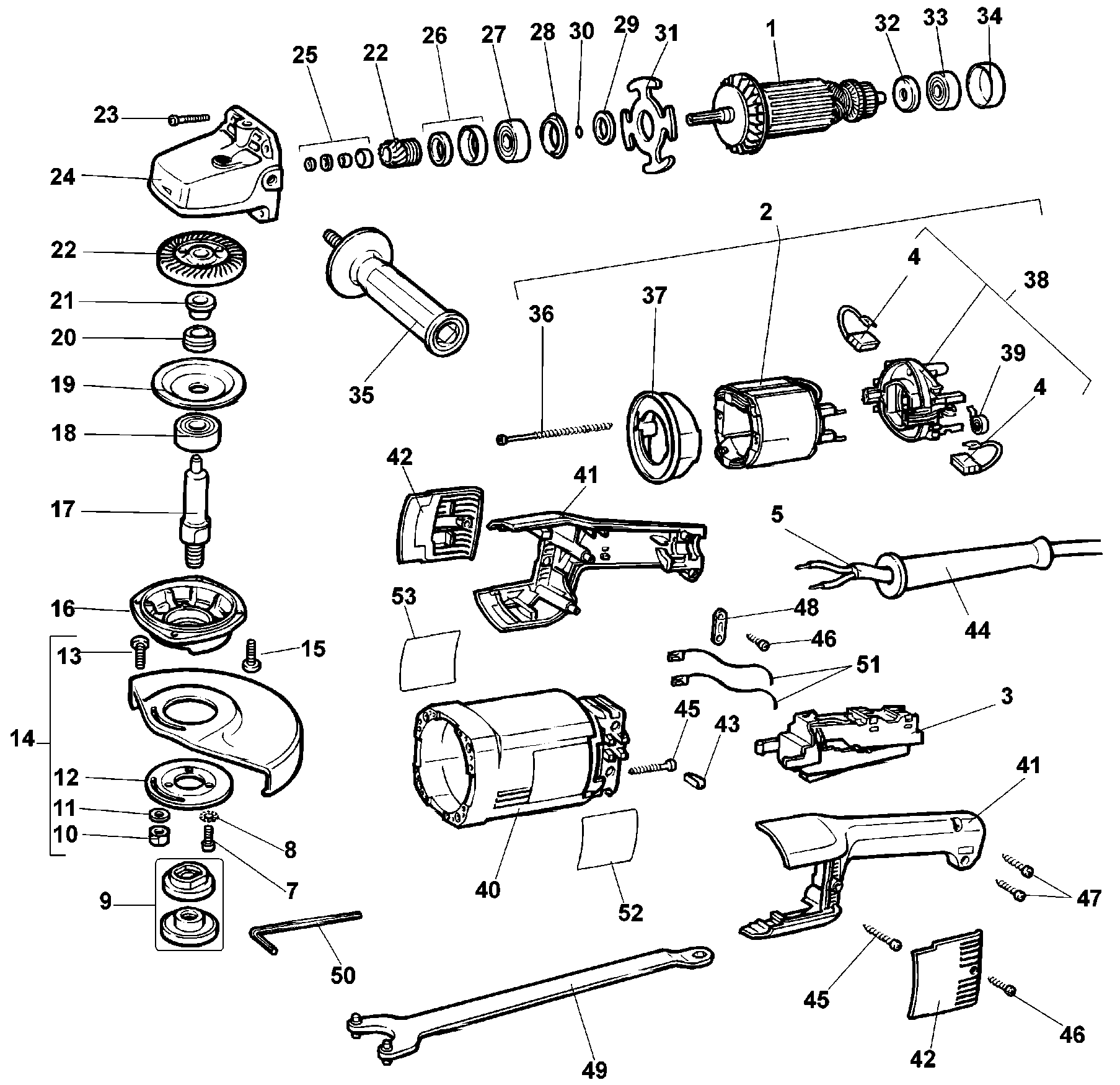

DW852 ANGLE GRINDER Type 5 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	186178-01	1	ARMATURE	220v	B2
2	186179-01	1	FIELD	220V	B2
3	949825-04	1	SWITCH LOCK-ON		B2
4	940160-03	2	BRUSH CUT OFF 230V		B2
5	185283-00	1	CORD		B2
7	933058-00	3	SCREW		B2
8	932369	3	WASHER		B2
9	947451-03	1	FLANGE ASSY.		B2
10	860083-03	1	NUT		B2
11	930925	1	WASHER		B2
12	930929	1	FLANGE		B2
13	949892-07	1	SCREW		B2
14	931942-02	1	GUARD 9"		B2
15	330024-14	4	SCREW,PLASTIC		B2
16	947962-00	1	GEARCASE COVER		B2
17	578243-00	1	SPINDLE		B2
18	574853-11	1	BEARING		B2
19	930924	1	FLANGE		B2
20	930923	1	SEAL		B2
21	930922	1	SPACER		B2
22	932522	1	GEAR & PINION SA		B2
23	186210-00	4	SCREW		B2
24	401048-00	1	GEARCASE SA		B2
25	937098	1	CLIP SA		B2
26	930909	1	SEAL SA		B2
27	330003-14	1	BEARING		B2
28	931067	1	SEAL SA		B2
29	931062	1	SPACER		B2
30	930028-00	1	O RING		B2
31	931066	1	FLANGE		B2
32	938331	1	SPACER		B2
33	330003-36	1	BEARING		B2
34	938332	1	SLEEVE		B2
35	933499	1	HANDLE SIDE SA		B2
36	931072	2	SCREW		B2
37	402808-00	1	BAFFLE		B2
38	949405-03	1	BRUSH PLATE SA		B2
39	402816-00	2	SPRING		B2
40	578193-00	1	FIELD CASE		B2
41	578194-00	1	HANDLE & COVER		B2
42	933364-02	2	COVER		B2
43	930934	4	SHOCK ABSORBER		B2
44	947964-01	1	CORD PROTECTOR		B2
45	931297-00	4	SCREW		B2
46	931469-02	4	SCREW		B2
47	930284-01	2	SCREW		B2
48	931477	1	CORD CLAMP		B2
49	938733	1	WRENCH PIN		B2
50	807043	2	WRENCH	4mm	B2
51	403462-00	2	LEAD		B2
52	578506-12	1	NAMEPLATE		B2
53	578476-00	1	ID LABEL		B2
