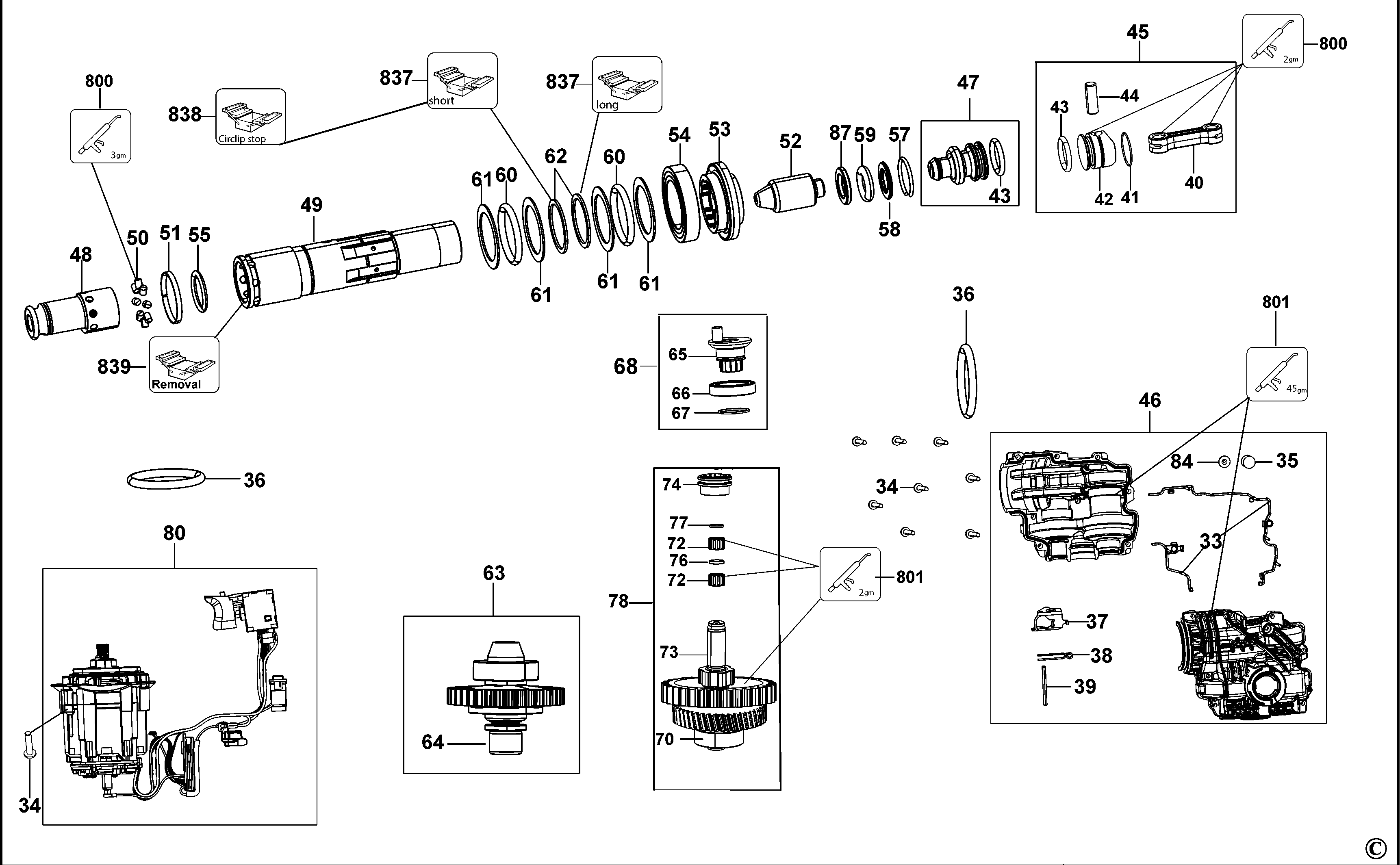

DCH323 ROTARY HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 323489-00 | 1 | CAP | QW | |||
| 2 | 579212-00 | 1 | RING | QW | |||
| 3 | N910599 | 1 | TUBE | QW | |||
| 4 | 583890-00 | 1 | BALL | QW | |||
| 5 | 578387-00 | 1 | WASHER | QW | |||
| 6 | 871690 | 1 | SPRING | QW | |||
| 7 | N570012 | 1 | HOUSING FRONT | +seal +bearing | QW | ||
| 8 | N152623 | 1 | STOP | QW | |||
| 9 | N106188 | 1 | SPRING COMPRESSION | QW | |||
| 10 | N106221-01 | 1 | BELLOWS | QW | |||
| 11 | N466894 | 1 | HANDLE SA | QW | |||
| 12 | N431292 | 1 | BAR | F/R | QW | ||
| 13 | N438439 | 1 | INSERT | QW | |||
| 14 | N438438 | 1 | INSERT | QW | |||
| 15 | N400082 | 1 | SPRING | QW | |||
| 16 | N094649 | 1 | PLATE | QW | |||
| 17 | N122099 | 1 | BLOCK | QW | |||
| 18 | N119679 | 1 | SPRING | QW | |||
| 19 | N427167 | 1 | BELLOWS | QW | |||
| 20 | N457361 | 1 | END CAP | QW | |||
| 21 | N449438 | 1 | END CAP | QW | |||
| 22 | N159443 | 1 | AXIS | QW | |||
| 23 | N466995 | 1 | MOTOR HOUSING SA | QW | |||
| 24 | N461541 | 1 | HOOK | Belt | QW | ||
| 25 | N400130 | 1 | SCREW | M5x8 | QW | ||
| 26 | 330019-20 | 4 | SCREW | QW | |||
| 27 | 330019-80 | 17 | SCREW | QW | |||
| 28 | N445349 | 1 | LED LIGHT | QW | |||
| 29 | N452980 | 1 | INDICATOR | QW | |||
| 30 | 656183-00 | 1 | LENS | QW | |||
| 31 | N471922 | 1 | SELECTOR SA | Yellow | QW | ||
| 32 | N091381-00 | 1 | O RING | QW | |||
| 33 | N433272 | 1 | SEAL SA | QW | |||
| 34 | 324006-15 | 12 | SCREW | QW | |||
| 35 | N038257 | 1 | FELT | QW | |||
| 36 | N423558 | 2 | O RING | O-RING 43x3.5 | QW | ||
| 37 | N431392 | 1 | PLATE | Switch | QW | ||
| 38 | N663642 | 1 | SPRING | QW | |||
| 39 | N433763 | 1 | PIN | QW | |||
| 40 | N390874 | 1 | CON ROD | QW | |||
| 41 | N517447 | 1 | O RING | 19X1 | QW | ||
| 42 | N510098 | 1 | PISTON | QW | |||
| 43 | N394408 | 2 | O RING | 17x3 | QW | ||
| 44 | N123257 | 1 | PIN | QW | |||
| 45 | N505552 | 1 | PISTON KIT | QW | |||
| 46 | N616792 | 1 | GEARCASE SA | QW | |||
| 47 | N505553 | 1 | RAM SA | QW | |||
| 48 | N783458 | 1 | SPINDLE | QW | |||
| 49 | N583351 | 1 | SPINDLE | QW | |||
| 49 | N583351 | 1 | SPINDLE | QW | |||
| 50 | N468472 | 8 | PIN | 4X6 | QW | ||
| 51 | N467014 | 1 | RETAINER | QW | |||
| 52 | N459378 | 1 | BEAT PIECE | 3kg OPP 2 | QW | ||
| 53 | N406771 | 1 | BEVEL GEAR | QW | |||
| 54 | 479478-00 | 1 | BEARING,BALL | 6906 | QW | ||
| 55 | N412167 | 1 | O RING | 20x3 | QW | ||
| 57 | N413186 | 1 | CIRCLIP | 23x2 | QW | ||
| 58 | N502900 | 1 | WASHER | QW | |||
| 58 | N502900 | 1 | WASHER | QW | |||
| 59 | N412168 | 1 | O RING | 12x5 | QW | ||
| 60 | N421627 | 2 | O RING | 30X4 | QW | ||
| 61 | N395027 | 4 | WASHER | QW | |||
| 62 | N422601 | 2 | CIRCLIP | QW | |||
| 63 | N605730 | 1 | CLUTCH SA | QW | |||
| 64 | 330004-06 | 1 | BEARING NEEDLE | QW | |||
| 65 | N452829 | 1 | CRANKSHAFT | QW | |||
| 66 | N427179 | 1 | BEARING | QW | |||
| 67 | N453028 | 1 | CLIP | QW | |||
| 68 | N505555 | 1 | CRANKSHAFT | 3KG | inc 65,66,67 | QW | |
| 70 | N110358 | 1 | BEARING | QW | |||
| 72 | N427177 | 2 | BEARING CAGE | QW | |||
| 73 | N513678 | 1 | GEAR SA | QW | |||
| 74 | N264669 | 1 | COLLAR | QW | |||
| 76 | N433668 | 1 | BUSH | QW | |||
| 77 | 323763-10 | 1 | LOCKING RING | 8; | QW | ||
| 78 | N593071 | 1 | TRANSMISSION SA | QW | |||
| 80 | N543354 | 1 | MOTOR & SWITCH SA | + Module 60V | QW | ||
| 81 | N186764 | 2 | RUBBER PAD | 4.5x8.0mm | QW | ||
| 82 | N413662 | 1 | HANDLE SIDE SA | QW | |||
| 83 | 798846-02 | 1 | DEPTH STOP | QW | |||
| 84 | N374339 | 1 | INSERT | QW | |||
| 87 | N388939 | 1 | WASHER | 14mm | QW | ||
| 800 | 578970-04 | 1 | GREASE | 80g | QW | ||
| 801 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | QW | ||
| 821 | N491322 | 1 | RATING LABEL | QW | |||
| 837 | 1003968-99 | 1 | S.T.CIRCLIP INSERTER | 3KG | Long | QW | |
| 837 | 1003969-99 | 1 | S.T.CIRCLIP INSERTER | 3KG | Short | QW | |
| 838 | 1003967-99 | 1 | S.T.CIRCLIP INSERTER | 3KG | Limit Stop | QW | |
| 839 | 1003970-99 | 1 | S.T.DIS-ASSEMBLY JIG | 3KG | Piston Ram Removal | QW | |
| 860 | H1400196008 | 1 | HANDLE | QW | |||
| 862 | H1500082520 | 2 | LATCH | QW | |||
| 863 | P910190 | 2 | LATCH | QW | |||
| 864 | N493397 | 1 | INSERT | T-STACK | QW | ||
| 866 | N473851 | 1 | BATTERY 3 X18V-6.0AH-108WH | Li-Ion - DCB546-XJ | DCH323T2 | QW | |
| 867 | N473860 | 1 | CHARGER QW | DCB118-QW | DCH323T2 | QW | |
| 871 | N462141 | 1 | SAFETY CAP | DCH323T2 | QW |
