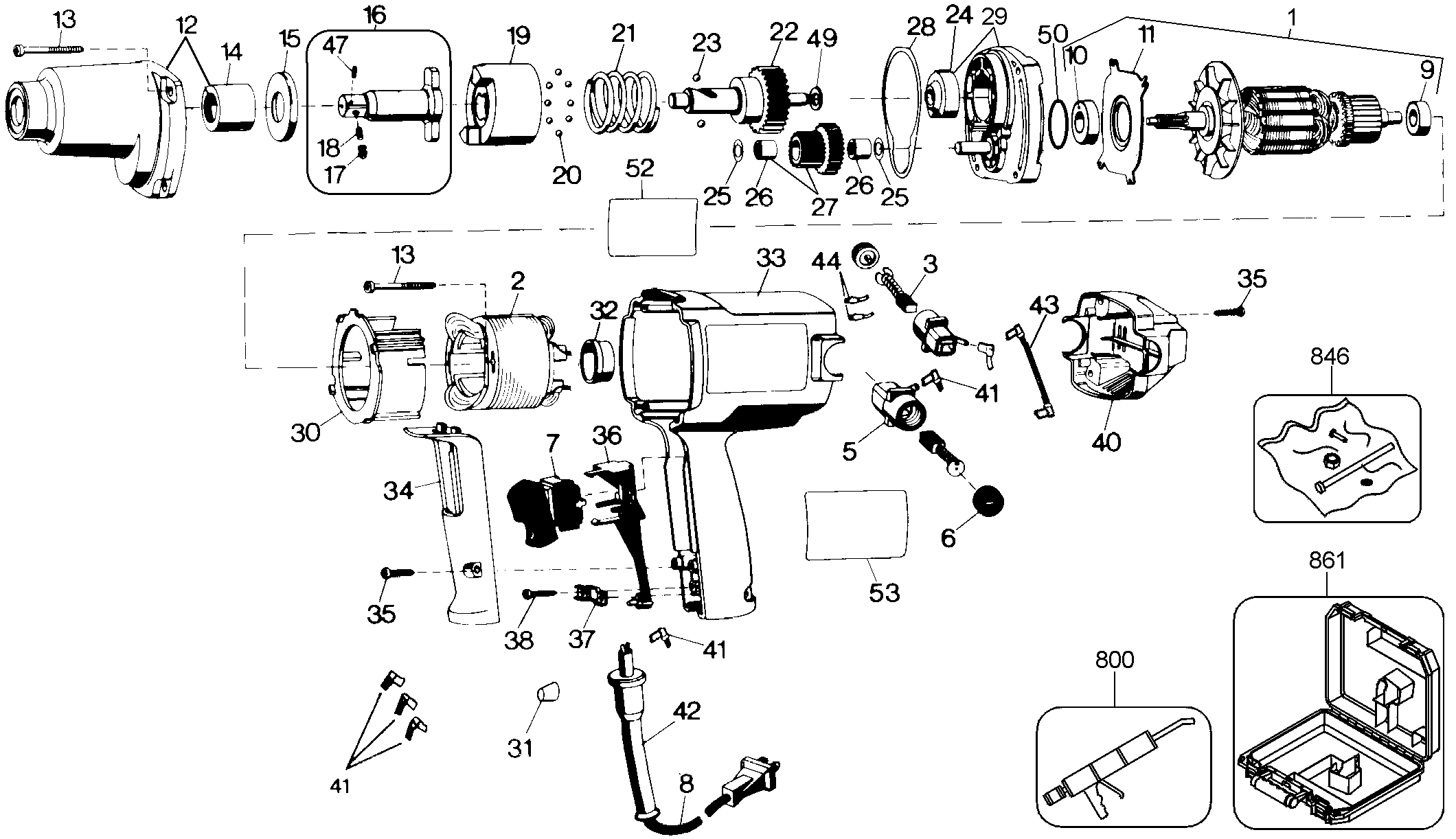

DW290 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 450807-00SV | 1 | ARMATURE & FAN | 8TEETH ; INC 9-11 | BR | ||
| 2 | 450379-71SV | 1 | FIELD | BR | |||
| 3 | 450374-12 | 2 | BRUSH & SPRING | BR | |||
| 5 | 448083-01 | 2 | BRUSHBOX SA | BR | |||
| 6 | 448084-01 | 2 | BRUSH CAP | BR | |||
| 7 | 449524-00 | 1 | SWITCH | NPP | BR | ||
| 8 | 330122-11 | 1 | CORD,PWR.SUPPLY | BR | |||
| 9 | 330003-04 | 1 | BEARING | BR | |||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | BR | ||
| 11 | 448079-00 | 1 | PLATE | BR | |||
| 12 | 449448-00 | 1 | GEARCASE | INC 14 | BR | ||
| 13 | 330019-18 | 6 | SCREW | M4.55 x 50 PLASTIC THD FMG | BR | ||
| 14 | 450544-00SV | 1 | BEARING & SEAL | BR | |||
| 15 | 616859-00 | 1 | WASHER THRUST | BR | |||
| 16 | 627238-00SV | 1 | ANVIL ASSEMBLY | INCL.17,18,47 | BR | ||
| 17 | N020802 | 1 | DETENT | BR | |||
| 18 | 038769-00 | 1 | SPRING | BR | |||
| 19 | 448298-00 | 1 | IMPACTOR | BR | |||
| 20 | 000475-00 | 25 | BALL STEEL | BR | |||
| 21 | 135065-00 | 1 | SPRING | BR | |||
| 22 | 449759-01 | 1 | GEAR SA | 35 TEETH | BR | ||
| 23 | 005190-00 | 2 | BALL STEEL | 9/32 inch | BR | ||
| 24 | 450736-00 | 1 | BEARING | BR | |||
| 25 | 135089-00 | 2 | WASHER | BR | |||
| 26 | 330004-02 | 2 | BEARING NEEDLE | BR | |||
| 27 | 135093-01SV | 1 | GEAR & PINION | INC 26 ; 17/37TEETH | BR | ||
| 28 | 135082-00 | 1 | GASKET | BR | |||
| 29 | 449452-00SV | 1 | COVER-GEAR CASE | INC 24 | BR | ||
| 30 | 447786-00 | 1 | BAFFLE FAN | BR | |||
| 31 | 32114-00 | 1 | CONNECTOR | BR | |||
| 32 | 445217-02 | 1 | SLEEVE | BR | |||
| 33 | 392275-05 | 1 | FIELD CASE | BR | |||
| 34 | 392274-06 | 1 | HANDLE COVER | BR | |||
| 35 | 330019-13 | 6 | SCREW | M4X19 T20 | BR | ||
| 36 | 449472-00 | 1 | SWITCH SUPPORT | BR | |||
| 37 | 450877-00 | 1 | CORD CLAMP | BR | |||
| 38 | 330019-03 | 2 | SCREW | BR | |||
| 40 | 449460-01 | 1 | END CAP | BR | |||
| 41 | 135110-00 | 6 | TERMINAL | BR | |||
| 42 | 330005-01 | 1 | CORD PROTECTOR | BR | |||
| 43 | 158491-00 | 1 | LEAD | 6-3/4 INCH BLACK | BR | ||
| 44 | 448172-00 | 2 | TERMINAL | BR | |||
| 47 | 099205-07 | 1 | ROLL PIN | BR | |||
| 49 | 450667-00 | 1 | WASHER | BR | |||
| 50 | 99180-24 | 1 | SEAL | BR | |||
| 52 | 615384-00 | 1 | NAME PLATE | DW290-BR TY.1 | BR | ||
| 53 | 627212-00 | 1 | BRAND LABEL | DEWALT | BR | ||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | BR | ||
| 846 | 94783-00 | 1 | KIT,1/2 DET.PIN | INC 17,18,47 | BR | ||
| 861 | 630094-00 | 1 | KITBOX | BR |
