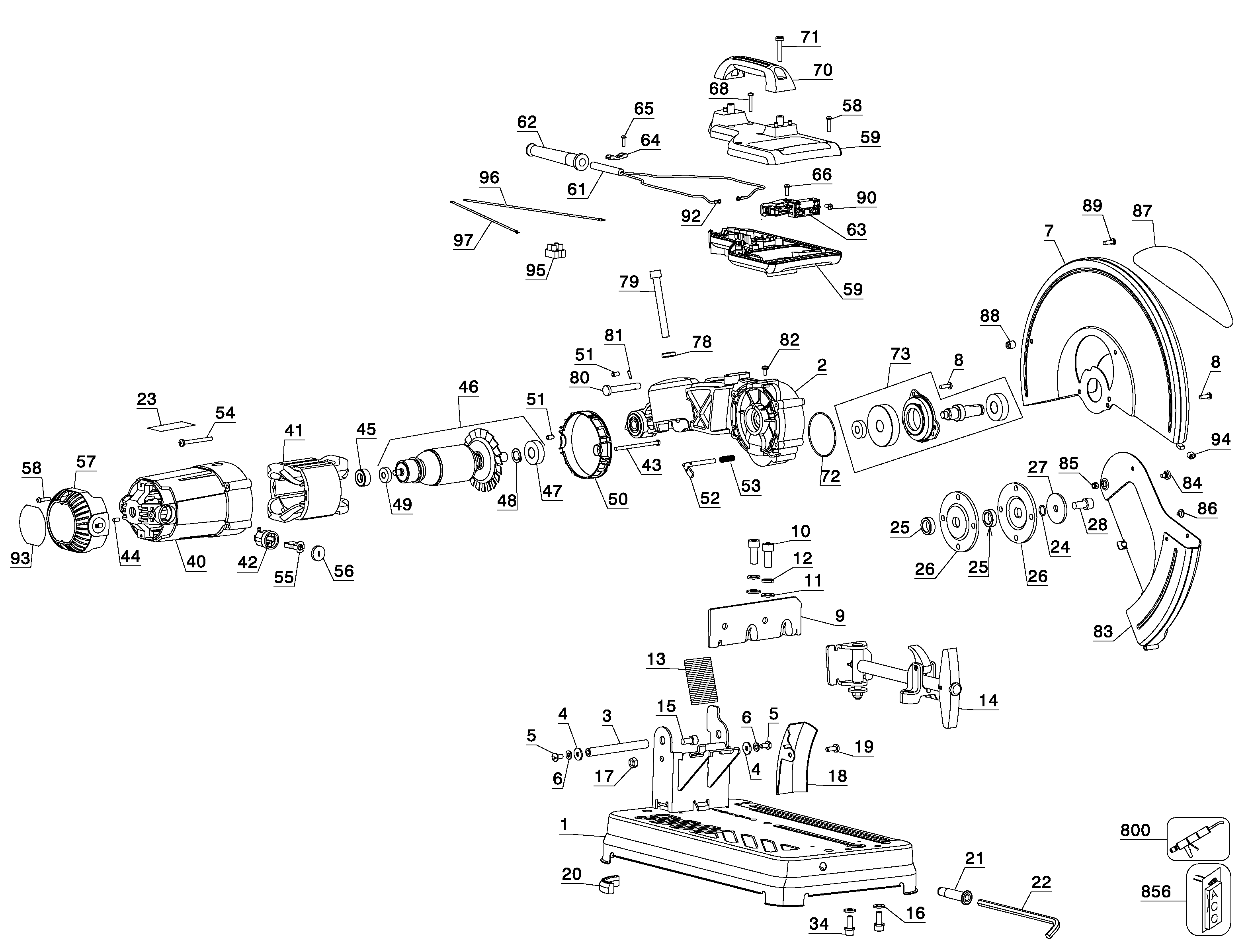

D28700 CHOP SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 622274-01 | 1 | BASE SA | B2 | |||
| 2 | N105335 | 1 | ARM | ALSO ORDER 51,80,81 | B2 | ||
| 3 | 621101-00 | 1 | PIVOT SHAFT | B2 | |||
| 4 | 330016-18 | 2 | WASHER | B2 | |||
| 5 | 153778-01 | 2 | SCREW | B2 | |||
| 6 | 098197-10 | 2 | WASHER LOCK | B2 | |||
| 7 | 622262-00 | 1 | GUARD UPPER | B2 | |||
| 8 | 330045-14 | 4 | SCREW | B2 | |||
| 9 | 621096-00 | 1 | FENCE | B2 | |||
| 10 | 383450-00 | 2 | SCREW | B2 | |||
| 11 | 330016-04 | 2 | WASHER | B2 | |||
| 12 | 98197-07 | 2 | WASHER LOCK | B2 | |||
| 13 | 387282-00 | 1 | SPRING | B2 | |||
| 14 | 623024-00 | 1 | VICE JAW FRONT | B2 | |||
| 15 | 098123-16 | 1 | SCREW | B2 | |||
| 16 | 098197-09 | 2 | WASHER | B2 | |||
| 17 | 330021-02 | 1 | NUT | B2 | |||
| 18 | 384159-00 | 1 | DEFLECTOR | B2 | |||
| 19 | 330045-23 | 1 | SCREW | B2 | |||
| 20 | 621103-00 | 3 | FOOT | B2 | |||
| 21 | 386765-00 | 1 | HOLDER TOOL | B2 | |||
| 22 | 384717-00 | 1 | WRENCH | B2 | |||
| 23 | 629837-00 | 1 | NAMEPLATE | B2 | |||
| 24 | 695606-00 | 1 | O RING | B2 | |||
| 25 | 621081-00 | 2 | ADAPTOR | B2 | |||
| 26 | 621079-00 | 2 | WASHER CLAMP | B2 | |||
| 27 | 383246-00 | 1 | WASHER | B2 | |||
| 28 | 383286-00 | 1 | SCREW | B2 | |||
| 34 | 5140054-57 | 2 | CAP SCREW | M8 1.25P 20 | B2 | ||
| 40 | 621067-02 | 1 | FIELDCASE | B2 | |||
| 41 | 621068-01 | 1 | FIELD 220V | B2 | |||
| 42 | 622440-00 | 2 | BRUSH HOLDER | B2 | |||
| 43 | 330019-34 | 2 | SCREW | B2 | |||
| 44 | 330022-16 | 2 | SCREW | B2 | |||
| 45 | 609970-00 | 1 | SLEEVE INSULATING | B2 | |||
| 46 | 621069-01 | 1 | ARMATURE SA | 230V | B2 | ||
| 47 | 605040-27 | 1 | BEARING | B2 | |||
| 48 | 144803-00 | 1 | CIRCLIP | B2 | |||
| 49 | N110359 | 1 | BEARING | B2 | |||
| 50 | 391375-00 | 1 | BAFFLE FAN | B2 | |||
| 51 | 623092-00 | 2 | PLUG | RUBBER | B2 | ||
| 52 | 621087-00 | 1 | SPINDLE LOCK | B2 | |||
| 53 | 621088-00 | 1 | SPRING | B2 | |||
| 54 | 98094-55 | 4 | SCREW | M5 X 55mm T25 | B2 | ||
| 55 | N558583 | 2 | BRUSH | B2 | |||
| 55 | N558583 | 2 | BRUSH | B2 | |||
| 56 | 622441-00 | 2 | BRUSH CAP | B2 | |||
| 57 | 621118-00 | 1 | END CAP | B2 | |||
| 58 | 330019-13 | 5 | SCREW | M4X19 T20 | B2 | ||
| 59 | 622918-00 | 1 | HANDLE SA | B2 | |||
| 61 | 330122-37 | 1 | CORD & PLUG | B2 | |||
| 62 | 330005-02 | 1 | CORD PROTECTOR | B2 | |||
| 63 | 626214-00 | 1 | SWITCH | B2 | |||
| 64 | 003618-00 | 1 | CORD CLAMP | B2 | |||
| 65 | 330019-02 | 2 | SCREW | B2 | |||
| 66 | 330019-11 | 1 | SCREW | M4.55x13 T20 | B2 | ||
| 68 | 330045-08 | 4 | SCREW | B2 | |||
| 70 | 621082-00 | 1 | HANDLE | B2 | |||
| 71 | 330019-22 | 2 | SCREW | M5.74x32 | B2 | ||
| 72 | 099180-46 | 1 | O RING | B2 | |||
| 73 | 5140125-80 | 1 | SPINDLE & GEAR SA | B2 | |||
| 78 | 623091-00 | 1 | STOP | LOCK DOWN | B2 | ||
| 79 | 623090-00 | 1 | BOLT | DOWN STOP | B2 | ||
| 80 | 621104-00 | 1 | PIN | LOCK DOWN | B2 | ||
| 81 | N058667 | 1 | PIN,SPIRAL | 3mm X 12mm | B2 | ||
| 82 | 385865-00 | 1 | SCREW | B2 | |||
| 83 | 621092-00 | 1 | GUARD LOWER | B2 | |||
| 84 | 384844-00 | 1 | SCREW SPECIAL | B2 | |||
| 85 | 148641-00 | 1 | LOCK-NUT | B2 | |||
| 86 | 383637-00 | 3 | BUMPER | RUBBER | B2 | ||
| 87 | 621093-00 | 1 | IDENTITY LABEL | B2 | |||
| 88 | 629619-00 | 1 | SPACER | B2 | |||
| 89 | 330045-16 | 1 | SCREW | B2 | |||
| 90 | 384127-01 | 4 | SCREW | B2 | |||
| 92 | 625933-00 | 2 | TERMINAL | RING INSULATED | B2 | ||
| 93 | 391325-00 | 1 | IDENTITY LABEL | B2 | |||
| 94 | 386526-00 | 1 | STOP RUBBER | B2 | |||
| 95 | 393520-00 | 1 | TERMINAL BLOCK | B2 | |||
| 96 | 628956-00 | 1 | LEAD BLACK | B2 | |||
| 97 | 628957-00 | 1 | LEAD WHITE | B2 | |||
| 800 | 5140061-28 | 1 | GREASE | B2 | |||
| 856 | DW8001 Z | 1 | 14X7/64X1 SAW WHEEL | B2 |
