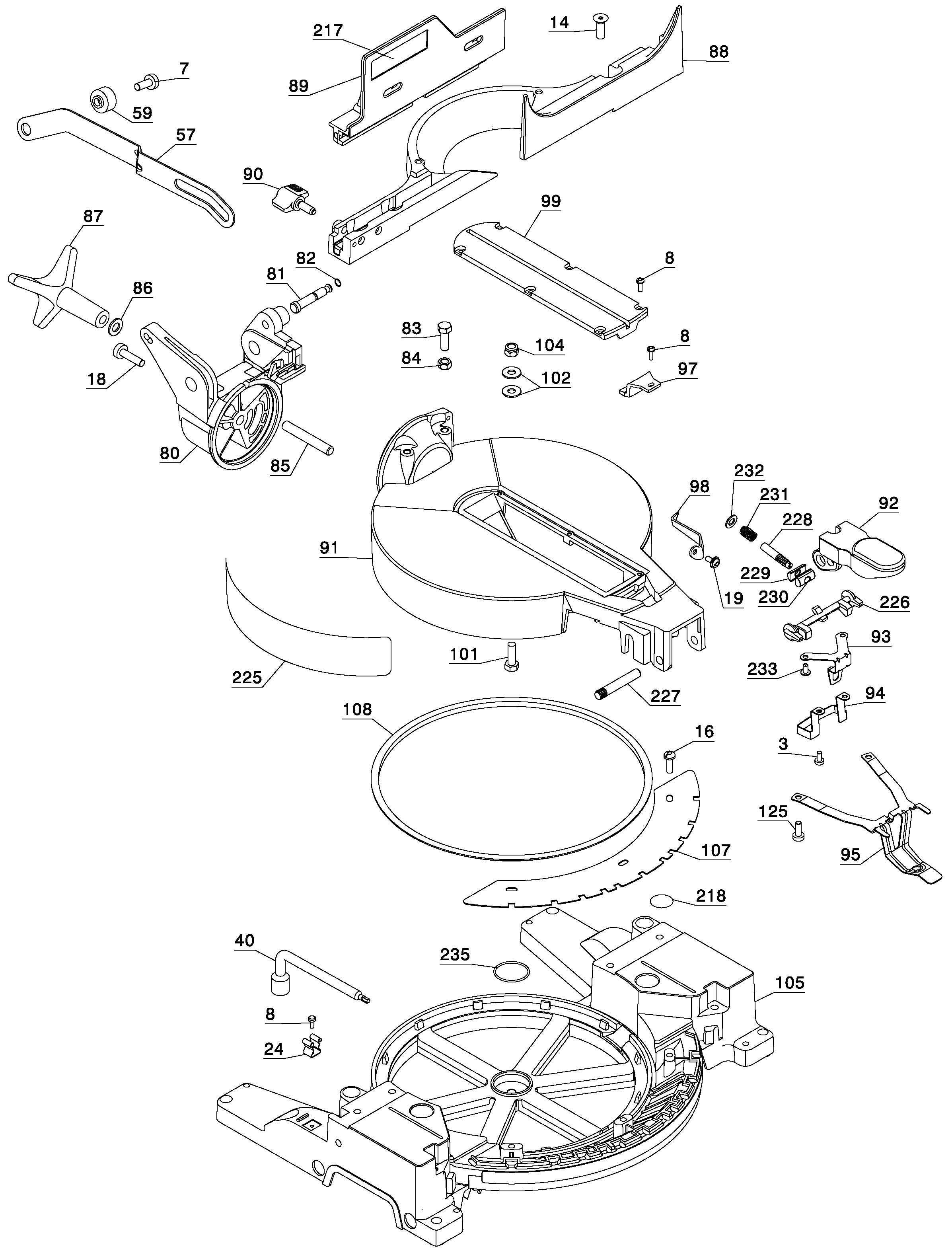

DW713 MITRE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-14 | 3 | SCREW | BR | |||
| 2 | 330045-23 | 1 | SCREW | BR | |||
| 3 | 330045-13 | 6 | SCREW | BR | |||
| 5 | 385915-01 | 4 | SCREW | BR | |||
| 6 | 330045-25 | 1 | SCREW.TEMP | M6x25 MTL THD FMG | BR | ||
| 7 | 330045-32 | 1 | SCREW | BR | |||
| 8 | 330045-05 | 10 | SCREW | BR | |||
| 10 | 330045-45 | 1 | SCREW | BR | |||
| 11 | 330019-32 | 5 | SCREW | BR | |||
| 12 | 330045-08 | 4 | SCREW | BR | |||
| 13 | 330019-22 | 2 | SCREW | M5.74x32 | BR | ||
| 14 | 098105-03 | 5 | SCREW | BR | |||
| 15 | 393868-00 | 1 | ADAPTOR | BR | |||
| 16 | 604410-00 | 3 | SCREW | BR | |||
| 17 | 394589-01 | 2 | SCREW | BR | |||
| 18 | 330045-33 | 1 | SCREW | BR | |||
| 19 | 153460-00 | 1 | SCREW | BR | |||
| 20 | 614375-00 | 4 | SCREW | BR | |||
| 21 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | BR | ||
| 22 | 650680-00 | 1 | WASHER OUTER CLAMP | BR | |||
| 23 | 141987-06 | 1 | WASHER INNER CLAMP | BR | |||
| 24 | 391358-01 | 1 | HOLDER | BR | |||
| 25 | N026930 | 1 | COVER | LASER CAVITY | BR | ||
| 27 | 385915-02 | 4 | SCREW | BR | |||
| 28 | 391632-00 | 1 | GASKET | BR | |||
| 29 | 701297-00 | 1 | SEAL | BR | |||
| 30 | 330004-06 | 1 | BEARING NEEDLE | BR | |||
| 31 | 145350-03 | 1 | BUTTON | BR | |||
| 32 | 398736-00 | 1 | SPRING | BR | |||
| 33 | 146714-00 | 1 | LOCK | BR | |||
| 34 | 146710-00 | 1 | WIPER | BR | |||
| 35 | 642122-02 | 1 | ARM ASSEMBLY | INCL. 30,36,109,111 | BR | ||
| 36 | 148608-00 | 2 | INSERT | BR | |||
| 37 | 394496-00 | 1 | CHUTE | BR | |||
| 39 | 393731-00 | 1 | GUARD | BR | |||
| 40 | 608563-01 | 1 | WRENCH SPECIAL | M13 - T30 | BR | ||
| 42 | 146751-00 | 1 | SHAFT | BR | |||
| 43 | 398251-00 | 2 | SPACER | BR | |||
| 44 | 391606-00 | 1 | SPRING | BR | |||
| 45 | 148296-00 | 2 | WASHER | BR | |||
| 46 | 150075-00 | 2 | SCREW | BR | |||
| 47 | 641072-02 | 1 | LOWER GUARD | BR | |||
| 48 | 641326-00 | 1 | GUARD PLATE | BR | |||
| 49 | 146774-00 | 1 | ROLLER | BR | |||
| 50 | 603232-00 | 1 | CIRCLIP | EXTERNAL | BR | ||
| 51 | 399139-00 | 1 | PIVOT | BR | |||
| 52 | 146768-00 | 1 | BUMPER | BR | |||
| 53 | 398735-00 | 1 | SPRING | BR | |||
| 54 | 148295-00 | 1 | SLEEVE | BR | |||
| 55 | N391680 | 1 | RETAINER | BR | |||
| 56 | 148612-00 | 1 | WASHER | BR | |||
| 57 | 391630-00 | 1 | LINK | BR | |||
| 58 | 146740-01 | 1 | BUSH | BR | |||
| 59 | 399042-00 | 1 | BUSHING | BR | |||
| 60 | 640596-00 | 1 | HANDLE SA | ASIA | BR | ||
| 61 | 391926-01 | 1 | SWITCH | BR | |||
| 62 | 647080-04 | 1 | CORDSET | INCL. 64 | BR | ||
| 64 | 330005-02 | 1 | CORD PROTECTOR | BR | |||
| 68 | 640885-00 | 1 | COVER | BR | |||
| 69 | N467585 | 1 | CABLE SA | CORD, LASER | BR | ||
| 70 | 385137-01 | 1 | NUT,STOP | BR | |||
| 71 | 618270-00 | 1 | COVER | HANDLE CAVITY | BR | ||
| 76 | 396375-00 | 1 | Handle | BR | |||
| 80 | 391578-00 | 1 | TRUNNION | BR | |||
| 81 | 387130-00 | 1 | LOCKING PIN | BR | |||
| 82 | 034158-00 | 1 | O RING | BR | |||
| 83 | 149368-00 | 2 | SCREW | BR | |||
| 84 | 99368-04 | 2 | NUT | BR | |||
| 85 | 146760-02 | 1 | STUD | BR | |||
| 86 | 330016-04 | 1 | WASHER | BR | |||
| 87 | N126150 | 1 | Handle | BR | |||
| 88 | 642126-00 | 1 | FENCE | BR | |||
| 89 | 648857-02 | 1 | LEFT FENCE | INCL. 217 | BR | ||
| 90 | 147107-07 | 1 | KNOB LOWER | BR | |||
| 91 | 640456-02 | 1 | ROTARY TABLE | COMPLETE W/MITER LOCK COMPONENTS | BR | ||
| 92 | 649430-00 | 1 | LEVER LOCK | MITER | BR | ||
| 93 | 650051-00 | 1 | PLATE | MITER GUIDE | BR | ||
| 94 | N240659 | 1 | CLAMPING BAR | BR | |||
| 95 | 650130-00 | 1 | SPRING | BR | |||
| 97 | 391634-00 | 1 | POINTER | BR | |||
| 98 | 391631-00 | 1 | POINTER | BR | |||
| 99 | 146726-02 | 1 | PLATE | BR | |||
| 101 | 98025-25 | 1 | SCREW | BR | |||
| 102 | 153792-00 | 2 | WASHER | BR | |||
| 104 | 330021-02 | 1 | NUT | BR | |||
| 105 | 640457-00 | 1 | BASE | BR | |||
| 107 | 630233-00 | 1 | DETENT | BR | |||
| 108 | 391635-00 | 1 | RING | BR | |||
| 109 | 395021-00 | 1 | LABEL | BR | |||
| 110 | 391325-00 | 1 | IDENTITY LABEL | BR | |||
| 111 | 630403-00 | 1 | WARNING LABEL | BR | |||
| 112 | 648711-00 | 1 | NAMEPLATE | DW713-BR TY1 | BR | ||
| 113 | 330019-03 | 1 | SCREW | BR | |||
| 118 | 330019-04 | 1 | SCREW | BR | |||
| 125 | 330045-22 | 2 | SCREW | BR | |||
| 201 | 330019-13 | 2 | SCREW | M4X19 T20 | BR | ||
| 204 | 614367-00 | 2 | BRUSH & LEAD | BR | |||
| 205 | 614368-00 | 2 | BRUSH CAP | BR | |||
| 205 | 5140081-96 | 2 | BRUSH CAP | D/C 2009-26 AND LATER | BR | ||
| 206 | 651764-00 | 1 | FIELD & FLD.CSE | BR | |||
| 207 | 614366-00 | 1 | BAFFLE FAN | BR | |||
| 208 | 614373-00 | 1 | END CAP | BR | |||
| 209 | N147370 | 1 | ARM.,FAN, & BRG | 120V | BR | ||
| 213 | 391573-00 | 1 | GEARCASE COVER | BR | |||
| 214 | 392628-00 | 1 | SPINDLE & GEAR | BR | |||
| 215 | 330003-29 | 1 | BEARING,BALL | BR | |||
| 217 | 606512-00 | 1 | WARNING LABEL | BR | |||
| 218 | 394976-00 | 2 | LABEL | WARNING | BR | ||
| 219 | 147734-06 | 1 | DUSTBAG | BR | |||
| 220 | 605040-27 | 1 | BEARING | BR | |||
| 221 | 330003-04 | 1 | BEARING | BR | |||
| 225 | 646819-00 | 2 | WARNING LABEL | BR | |||
| 226 | 650034-00 | 1 | CAM LEVER | BR | |||
| 227 | 626611-00 | 1 | PIN | BR | |||
| 228 | 626610-00 | 1 | ROD | BR | |||
| 229 | 621321-00 | 1 | NUT | MITER LOCK | BR | ||
| 230 | 621322-00 | 1 | NUT | BR | |||
| 231 | 058698-00 | 1 | SPRING | BR | |||
| 232 | 330016-03 | 1 | WASHER | BR | |||
| 233 | 650142-00 | 2 | SCREW | BR | |||
| 235 | 049787-00 | 1 | O RING | BR | |||
| 800 | 93488-00 | 1 | GREASE | BR | |||
| 800 | 5140061-28 | 1 | GREASE | BR | |||
| 856 | DW7187 | 1 | LASER ASSEMBLY | BR | |||
| 856 | DW7080 | 1 | EXTENSION SYSTEM | ACCESSORY | BR | ||
| 856 | DW7055 | 1 | KERF PLATE | PLASTIC, UNCUT | BR | ||
| 856 | 5140050-83 | 1 | LENGTH STOP | WAS ACCY DW7051 | BR | ||
| 856 | DW7084 | 1 | STOP PLATE | BR | |||
| 856 | 153650-00 | 1 | CLAMP | BR |
