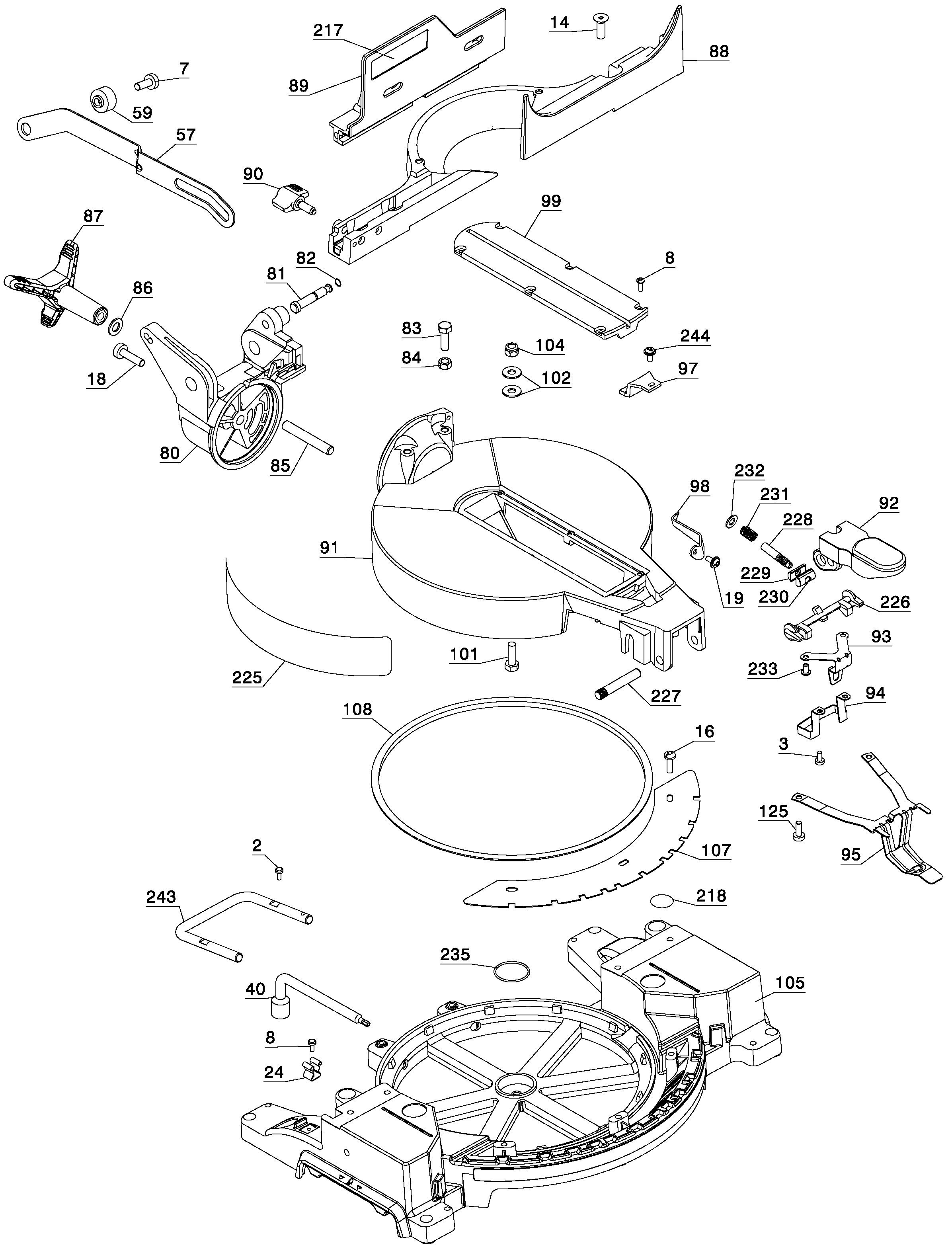

DW713 MITRE SAW Type 2 | Drawings
Documents
| Item No. |
Product Number |
Qty Per |
Product Description |
General Description |
Other Info |
Markets |
Product Status |
| 1 |
330045-14
|
3 |
SCREW
|
|
|
BR |
![]() |
| 2 |
330045-23
|
3 |
SCREW |
|
|
BR |
![]() |
| 3 |
330045-13
|
6 |
SCREW |
|
|
BR |
![]() |
| 5 |
N298367
|
4 |
SCREW |
|
|
BR |
![]() |
| 6 |
330045-25
|
1 |
SCREW.TEMP
|
M6x25 MTL THD FMG |
|
BR |
![]() |
| 7 |
330045-32
|
1 |
SCREW |
|
|
BR |
![]() |
| 8 |
330045-05
|
8 |
SCREW |
|
|
BR |
![]() |
| 11 |
330019-32
|
4 |
SCREW |
|
|
BR |
![]() |
| 12 |
330045-08
|
4 |
SCREW |
|
|
BR |
![]() |
| 13 |
330019-22
|
2 |
SCREW |
M5.74x32 |
|
BR |
![]() |
| 14 |
098105-03
|
5 |
SCREW
|
|
|
BR |
![]() |
| 16 |
604410-00
|
3 |
SCREW |
|
|
BR |
![]() |
| 17 |
394589-01
|
2 |
SCREW |
|
|
BR |
![]() |
| 18 |
330045-33
|
1 |
SCREW
|
|
|
BR |
![]() |
| 19 |
153460-00
|
1 |
SCREW |
|
|
BR |
![]() |
| 20 |
614375-00
|
4 |
SCREW |
|
|
BR |
![]() |
| 21 |
145344-01
|
1 |
BLADE BOLT
|
M8 X 20 LH |
|
BR |
![]() |
| 22 |
650680-00
|
1 |
WASHER OUTER CLAMP |
|
|
BR |
![]() |
| 23 |
141987-06
|
1 |
WASHER INNER CLAMP |
|
|
BR |
![]() |
| 24 |
391358-01
|
1 |
HOLDER |
|
|
BR |
![]() |
| 28 |
391632-00
|
1 |
GASKET |
|
|
BR |
![]() |
| 29 |
701297-00
|
1 |
SEAL |
|
|
BR |
![]() |
| 30 |
330004-06
|
1 |
BEARING NEEDLE |
|
|
BR |
![]() |
| 31 |
145350-03
|
1 |
BUTTON |
|
|
BR |
![]() |
| 32 |
398736-00
|
1 |
SPRING |
|
|
BR |
![]() |
| 33 |
146714-00
|
1 |
LOCK |
|
|
BR |
![]() |
| 34 |
146710-00
|
1 |
WIPER |
|
|
BR |
![]() |
| 35 |
N199293
|
1 |
ARM |
|
Inc. 30,36,109,111 |
BR |
![]() |
| 36 |
148608-00
|
2 |
INSERT |
|
|
BR |
![]() |
| 37 |
N126158
|
1 |
CHUTE |
|
|
BR |
![]() |
| 39 |
393731-00
|
1 |
GUARD |
|
|
BR |
![]() |
| 40 |
608563-02
|
1 |
WRENCH SPECIAL |
T30 x 13mm |
|
BR |
![]() |
| 42 |
N126153
|
1 |
PIVOT SHAFT
|
|
|
BR |
![]() |
| 43 |
146732-00
|
2 |
SPACER |
|
|
BR |
![]() |
| 44 |
391606-00
|
1 |
SPRING |
|
|
BR |
![]() |
| 45 |
148296-00
|
2 |
WASHER |
|
|
BR |
![]() |
| 46 |
150075-00
|
2 |
SCREW |
|
|
BR |
![]() |
| 47 |
N390970
|
1 |
LOWER GUARD ASSY |
|
Inc.5,6,49-55,70 |
BR |
![]() |
| 49 |
146774-00
|
1 |
ROLLER |
|
|
BR |
![]() |
| 50 |
603232-00
|
1 |
CIRCLIP |
EXTERNAL |
|
BR |
![]() |
| 51 |
399139-00
|
1 |
PIVOT |
|
|
BR |
![]() |
| 52 |
146768-00
|
1 |
BUMPER |
|
|
BR |
![]() |
| 53 |
398735-00
|
1 |
SPRING |
|
|
BR |
![]() |
| 54 |
148295-00
|
1 |
SLEEVE |
|
|
BR |
![]() |
| 55 |
N391680
|
1 |
RETAINER |
|
|
BR |
![]() |
| 57 |
391630-00
|
1 |
LINK |
|
|
BR |
![]() |
| 58 |
146740-01
|
1 |
BUSH |
|
|
BR |
![]() |
| 59 |
399042-00
|
1 |
BUSHING |
|
|
BR |
![]() |
| 60 |
N126140
|
1 |
HANDLE SA |
|
|
BR |
![]() |
| 61 |
N169598
|
1 |
SWITCH |
|
|
BR |
![]() |
| 62 |
N152789
|
1 |
CORD ASSY. |
|
|
BR |
![]() |
| 64 |
330005-02
|
1 |
CORD PROTECTOR |
|
|
BR |
![]() |
| 70 |
385137-01
|
1 |
NUT,STOP |
|
|
BR |
![]() |
| 76 |
396375-00
|
1 |
Handle |
|
|
BR |
![]() |
| 80 |
391578-00
|
1 |
TRUNNION
|
|
|
BR |
![]() |
| 81 |
387130-00
|
1 |
LOCKING PIN |
|
|
BR |
![]() |
| 82 |
034158-00
|
1 |
O RING |
|
|
BR |
![]() |
| 83 |
149368-00
|
2 |
SCREW |
|
|
BR |
![]() |
| 84 |
99368-04
|
2 |
NUT |
|
|
BR |
![]() |
| 85 |
146760-02
|
1 |
STUD
|
|
|
BR |
![]() |
| 86 |
330016-04
|
1 |
WASHER |
|
|
BR |
![]() |
| 87 |
N126150
|
1 |
Handle
|
|
|
BR |
![]() |
| 88 |
642126-00
|
1 |
FENCE |
|
|
BR |
![]() |
| 89 |
648857-01
|
1 |
FENCE LH |
INCL 217 |
|
BR |
![]() |
| 90 |
N126145
|
1 |
KNOB LOWER |
|
|
BR |
![]() |
| 91 |
640456-02
|
1 |
ROTARY TABLE
|
|
COMPLETE W/MITER LOCK PARTS |
BR |
![]() |
| 92 |
649430-00
|
1 |
LEVER LOCK |
MITER |
|
BR |
![]() |
| 93 |
650051-00
|
1 |
PLATE |
MITER GUIDE |
|
BR |
![]() |
| 94 |
N240659
|
1 |
CLAMPING BAR |
|
|
BR |
![]() |
| 95 |
650130-00
|
1 |
SPRING |
|
|
BR |
![]() |
| 97 |
391634-00
|
1 |
POINTER |
|
|
BR |
![]() |
| 98 |
391631-00
|
1 |
POINTER |
|
|
BR |
![]() |
| 99 |
146726-02
|
1 |
PLATE |
|
|
BR |
![]() |
| 101 |
98025-25
|
1 |
SCREW |
|
|
BR |
![]() |
| 102 |
153792-00
|
2 |
WASHER |
|
|
BR |
![]() |
| 104 |
330021-02
|
1 |
NUT
|
|
|
BR |
![]() |
| 105 |
N152784
|
1 |
BASE |
|
|
BR |
![]() |
| 107 |
N126155
|
1 |
DETENT |
|
|
BR |
![]() |
| 108 |
391635-00
|
1 |
RING |
|
|
BR |
![]() |
| 109 |
395021-00
|
1 |
LABEL |
|
|
BR |
![]() |
| 110 |
N200392
|
1 |
BRAND LABEL |
|
|
BR |
![]() |
| 111 |
630403-00
|
1 |
WARNING LABEL |
|
|
BR |
![]() |
| 112 |
N126111
|
1 |
NAME PLATE |
DW713-BR TY2 |
|
BR |
![]() |
| 113 |
330019-12
|
1 |
SCREW |
|
|
BR |
![]() |
| 125 |
330045-22
|
2 |
SCREW |
|
|
BR |
![]() |
| 201 |
330019-11
|
2 |
SCREW |
M4.55x13 T20 |
|
BR |
![]() |
| 204 |
614367-00
|
2 |
BRUSH & LEAD |
|
|
BR |
![]() |
| 205 |
614368-00
|
2 |
BRUSH CAP |
|
|
BR |
![]() |
| 206 |
651764-00
|
1 |
FIELD & FLD.CSE
|
|
|
BR |
![]() |
| 207 |
614366-00
|
1 |
BAFFLE FAN |
|
|
BR |
![]() |
| 208 |
N171521
|
1 |
END CAP |
|
|
BR |
![]() |
| 209 |
N147370
|
1 |
ARM.,FAN, & BRG |
120V |
|
BR |
![]() |
| 213 |
391573-00
|
1 |
GEARCASE COVER |
|
|
BR |
![]() |
| 214 |
392628-00
|
1 |
SPINDLE & GEAR |
|
|
BR |
![]() |
| 215 |
330003-29
|
1 |
BEARING,BALL |
|
|
BR |
![]() |
| 217 |
395301-00
|
1 |
LABEL |
|
|
BR |
![]() |
| 218 |
394976-00
|
2 |
LABEL |
WARNING |
|
BR |
![]() |
| 219 |
N126162
|
1 |
DUST BAG SA |
|
|
BR |
![]() |
| 220 |
605040-27
|
1 |
BEARING |
|
|
BR |
![]() |
| 221 |
330003-04
|
1 |
BEARING |
|
|
BR |
![]() |
| 225 |
646819-00
|
1 |
WARNING LABEL |
|
|
BR |
![]() |
| 226 |
650034-00
|
1 |
CAM LEVER |
|
|
BR |
![]() |
| 227 |
626611-00
|
1 |
PIN |
|
|
BR |
![]() |
| 228 |
626610-00
|
1 |
ROD |
|
|
BR |
![]() |
| 229 |
621321-00
|
1 |
NUT |
MITER LOCK |
|
BR |
![]() |
| 230 |
621322-00
|
1 |
NUT |
|
|
BR |
![]() |
| 231 |
058698-00
|
1 |
SPRING |
|
|
BR |
![]() |
| 232 |
330016-03
|
1 |
WASHER |
|
|
BR |
![]() |
| 233 |
650142-00
|
2 |
SCREW |
|
|
BR |
![]() |
| 235 |
049787-00
|
1 |
O RING |
|
|
BR |
![]() |
| 243 |
N126163
|
1 |
BAR |
STABILIZER BAR |
|
BR |
![]() |
| 244 |
153460-05
|
1 |
SCREW |
|
|
BR |
![]() |
| 800 |
93488-00
|
1 |
GREASE |
|
|
BR |
![]() |
| 800 |
5140061-28
|
1 |
GREASE |
|
|
BR |
![]() |
| 856 |
DW7080
|
1 |
EXTENSION SYSTEM |
ACCESSORY |
|
BR |
![]() |
| 856 |
DW7084
|
1 |
STOP PLATE |
|
|
BR |
![]() |
| 856 |
153650-00
|
1 |
CLAMP |
|
|
BR |
![]() |
| 856 |
DW3114
|
1 |
BLADE |
40T |
|
BR |
![]() |
| 856 |
5140050-83
|
1 |
LENGTH STOP |
WAS ACCY DW7051 |
|
BR |
![]() |
