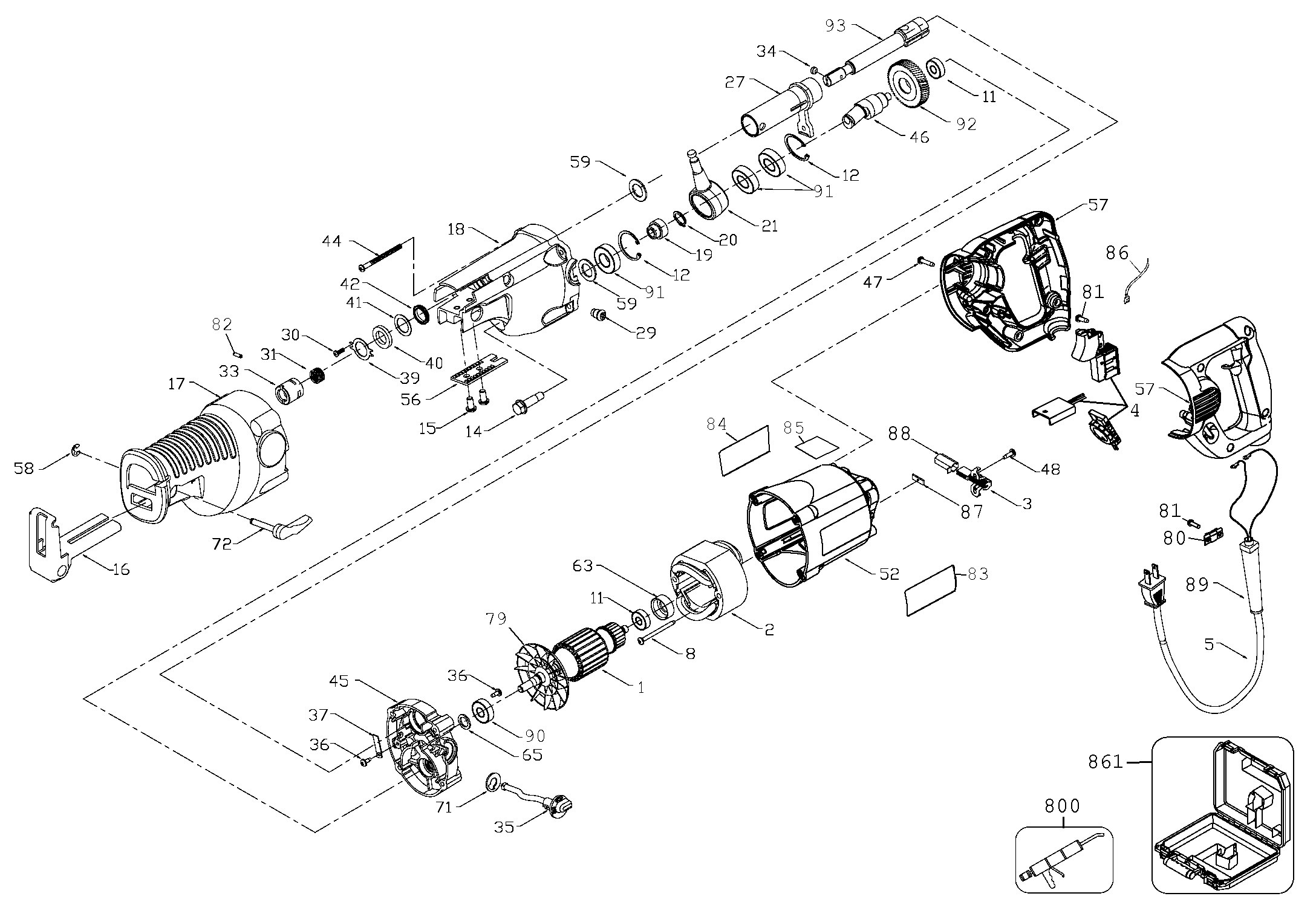

DW311K RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 634812-00SV | 1 | ARMATURE | INCL. 79 | BR | ||
| 2 | 634810-00SV | 1 | FIELD | BR | |||
| 3 | 874289 | 2 | BRUSH & HOLDER SA | BR | |||
| 4 | 5140102-37 | 1 | SWITCH KIT | INCL. FIELD | BR | ||
| 5 | 330122-58 | 1 | CORD SET | BR | |||
| 8 | 882704 | 2 | SCREW | BR | |||
| 11 | 330003-05 | 2 | BEARING | BR | |||
| 12 | 802302 | 2 | RING | BR | |||
| 14 | 879421 | 1 | SCREW | BR | |||
| 15 | 906952 | 2 | SCREW | 1/4-20x1/2SOC BTN HD | BR | ||
| 16 | 911450SV | 1 | SHOE SA | BR | |||
| 17 | 906725 | 1 | COVER | BR | |||
| 18 | 906701 | 1 | HOUSING FRONT | BR | |||
| 19 | 879429 | 1 | SPACER | BR | |||
| 20 | 853246 | 1 | RING | BR | |||
| 21 | 890819 | 1 | PLATE | BR | |||
| 27 | 883098 | 1 | CARRIER | BR | |||
| 29 | 879408 | 2 | SCREW | BR | |||
| 30 | 882255 | 2 | SCREW | BR | |||
| 31 | 648924-00 | 1 | SPRING | BR | |||
| 33 | 897774 | 1 | COLLAR | BR | |||
| 34 | 648594-00 | 1 | CLAMPING BAR | BR | |||
| 35 | 632169-00 | 1 | SELECTOR | BR | |||
| 36 | 882187 | 2 | SCREW | 8-32x3/8 TAPTITE T20 | BR | ||
| 37 | 847418 | 1 | SPRING | BR | |||
| 39 | 879458 | 1 | PLATE | BR | |||
| 40 | 879457 | 1 | FELT SEAL | BR | |||
| 41 | 684931 | 1 | WASHER | BR | |||
| 42 | 902998 | 1 | SEAL | BR | |||
| 44 | 330019-19 | 4 | SCREW | BR | |||
| 45 | 906705 | 1 | PLATE | BR | |||
| 46 | 883097SV | 1 | DRIVE SHAFT | BR | |||
| 47 | 330019-13 | 9 | SCREW | M4X19 T20 | BR | ||
| 48 | 882703 | 4 | SCREW | BR | |||
| 52 | 631342-00 | 1 | FIELD CASE | BR | |||
| 56 | 906043 | 1 | PLATE | BR | |||
| 57 | 631234-00 | 1 | HANDLE SA | BR | |||
| 58 | 697965 | 1 | RETAINER | BR | |||
| 59 | 882348 | 2 | FELT SEAL | BR | |||
| 63 | 694432 | 1 | HOLDER BEARING | BR | |||
| 65 | 801852 | 1 | SEAL | BR | |||
| 71 | 908873 | 1 | FELT SEAL | BR | |||
| 72 | 651021-00 | 1 | LEVER | BR | |||
| 78 | 450212-00 | 1 | TERMINAL | BR | |||
| 79 | 878904SV | 1 | FAN | BR | |||
| 80 | 450877-00 | 1 | CORD CLAMP | BR | |||
| 81 | 330019-02 | 3 | SCREW | BR | |||
| 82 | 638557-00 | 1 | SPIROL PIN | BR | |||
| 83 | 636945-00 | 1 | IDENTITY LABEL | BR | |||
| 84 | 650527-00 | 1 | NAME PLATE | BR | |||
| 85 | 636944-00 | 1 | WARNING LABEL | BR | |||
| 86 | 898878 | 1 | LEAD RED | RED | BR | ||
| 87 | 865321 | 2 | INSULATOR | BR | |||
| 88 | 865323 | 2 | BRUSH HOLDER | BR | |||
| 89 | 330005-01 | 1 | CORD PROTECTOR | BR | |||
| 90 | 330003-17 | 1 | BEARING | BR | |||
| 91 | 879431 | 3 | BEARING | BR | |||
| 92 | 879401 | 1 | GEAR | BR | |||
| 93 | N074353 | 1 | DRIVE SHAFT | BR | |||
| 800 | 5140061-28 | 1 | GREASE | BR | |||
| 800 | 5140061-28 | 1 | GREASE | BR | |||
| 800 | 286445-00 | 1 | GREASE | SHELL ALVANIA EP 2 | BR | ||
| 861 | N009458 | 1 | KITBOX | BR |
