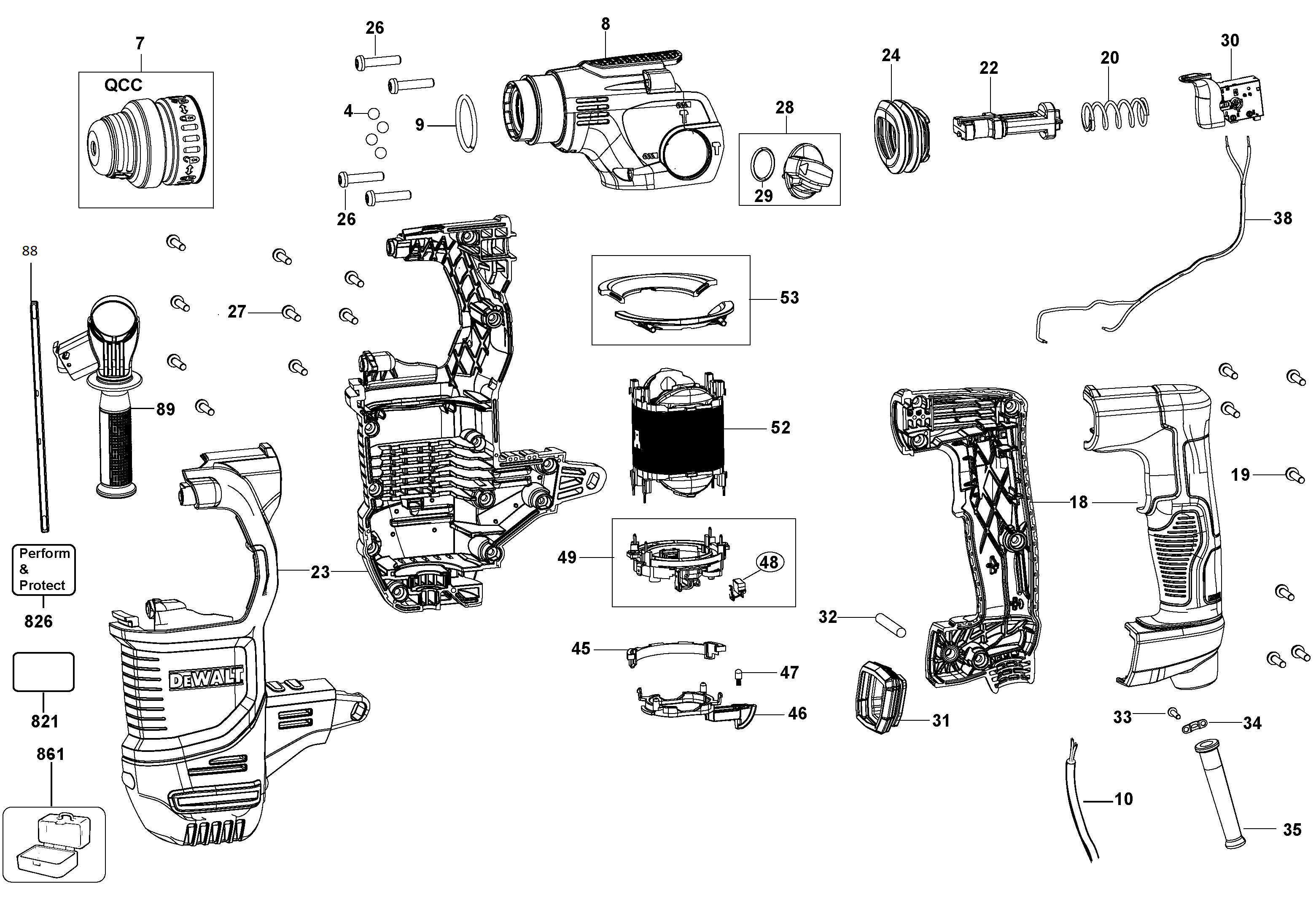

D25334K HAMMER DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 4 | 583890-00 | 5 | BALL | AR | |||
| 7 | N591846 | 1 | CHUCK SA | SDS PLUS | AR | ||
| 8 | N544184 | 1 | HOUSING FRONT | + Seal + Bearing | AR | ||
| 9 | 577795-00 | 1 | RING | AR | |||
| 10 | 330076-20 | 1 | CORDSET U.S.120V | AR | |||
| 18 | N544046 | 1 | HANDLE SA | Pair | AR | ||
| 19 | 330019-80 | 5 | SCREW | AR | |||
| 20 | N106188 | 1 | SPRING COMPRESSION | AR | |||
| 22 | N152623 | 1 | STOP | AR | |||
| 23 | N544064 | 1 | MOTOR HOUSING SA | Pair | AR | ||
| 24 | N106221-01 | 1 | BELLOWS | AR | |||
| 26 | 330019-20 | 4 | SCREW | AR | |||
| 27 | 330019-80 | 11 | SCREW | AR | |||
| 28 | N417861 | 1 | SELECTOR SA | AR | |||
| 29 | N091381-00 | 1 | O RING | AR | |||
| 30 | N228044 | 1 | SWITCH | DGQ HV | AR | ||
| 31 | N106222 | 1 | BELLOWS | AR | |||
| 32 | N159443 | 1 | AXIS | AR | |||
| 33 | 330019-80 | 2 | SCREW | AR | |||
| 34 | 821070 | 1 | CORD CLAMP | AR | |||
| 35 | 584090-00 | 1 | CORD PROTECTOR | AR | |||
| 36 | N412167 | 1 | O RING | 20x3 | AR | ||
| 37 | N544185 | 1 | SPINDLE SA | AR | |||
| 38 | N466472 | 1 | WIRE HARNESS | AR | |||
| 39 | N406771 | 1 | BEVEL GEAR | AR | |||
| 40 | 479478-00 | 1 | BEARING,BALL | 6906 | AR | ||
| 41 | N395027 | 4 | WASHER | AR | |||
| 42 | N421627 | 2 | O RING | 30X4 | AR | ||
| 43 | N395027 | 2 | WASHER | AR | |||
| 44 | N422601 | 2 | CIRCLIP | AR | |||
| 45 | N231636 | 1 | SUPPORT | AR | |||
| 46 | N453264 | 1 | LEVER | FR/REV | AR | ||
| 47 | 326467-00 | 1 | DETENT | AR | |||
| 48 | N544178 | 1 | BRUSH KIT | AR | |||
| 49 | N544068 | 1 | BRIDGE | ROTATING BRUSH | AR | ||
| 50 | N584772 | 1 | ARMATURE 230V | + MOTOR PLATE | AR | ||
| 51 | 605040-02 | 1 | BEARING | AR | |||
| 52 | N544427 | 1 | FIELD 230V | AR | |||
| 53 | N588464 | 1 | BAFFLE SA | AR | |||
| 54 | 870052 | 1 | SLEEVE | AR | |||
| 55 | N376455 | 1 | BEARING,BALL | AR | |||
| 56 | N433272 | 1 | SEAL SA | AR | |||
| 57 | N374339 | 1 | INSERT | AR | |||
| 58 | N038257 | 1 | FELT | AR | |||
| 59 | N616792 | 1 | GEARCASE SA | AR | |||
| 60 | 324006-15 | 8 | SCREW | AR | |||
| 61 | N423558 | 1 | O RING | O-RING 43x3.5 | AR | ||
| 62 | N459291 | 1 | BEAT PIECE | 3KG QCC | AR | ||
| 63 | N388939 | 2 | WASHER | 14mm | AR | ||
| 64 | N412168 | 1 | O RING | 12x5 | AR | ||
| 65 | N413186 | 1 | CIRCLIP | 23x2 | AR | ||
| 66 | N394408 | 2 | O RING | 17x3 | AR | ||
| 67 | N415558 | 1 | O RING | 19x1 | AR | ||
| 68 | N510098 | 1 | PISTON | AR | |||
| 69 | N123257 | 1 | PIN | AR | |||
| 70 | N390874 | 1 | CON ROD | AR | |||
| 71 | N505552 | 1 | PISTON KIT | AR | |||
| 72 | N505553 | 1 | RAM SA | AR | |||
| 73 | N431392 | 1 | PLATE | Switch | AR | ||
| 74 | 1005795-00 | 1 | SPRING | AR | |||
| 75 | N433763 | 1 | PIN | AR | |||
| 77 | N605730 | 1 | CLUTCH SA | AR | |||
| 78 | N452829 | 1 | CRANKSHAFT | AR | |||
| 79 | N427179 | 1 | BEARING | AR | |||
| 80 | N453028 | 1 | CLIP | AR | |||
| 81 | N505555 | 1 | CRANKSHAFT | 3KG | AR | ||
| 82 | N264669 | 1 | COLLAR | AR | |||
| 83 | 323763-10 | 1 | LOCKING RING | 8; | AR | ||
| 84 | N427177 | 2 | BEARING CAGE | AR | |||
| 85 | N433668 | 1 | BUSH | AR | |||
| 86 | N593071 | 1 | TRANSMISSION SA | AR | |||
| 87 | 330003-05 | 1 | BEARING | AR | |||
| 88 | 798846-02 | 1 | DEPTH STOP | AR | |||
| 89 | N413662 | 1 | HANDLE SIDE SA | AR | |||
| 90 | N513678 | 1 | GEAR SA | AR | |||
| 91 | N512476 | 1 | O RING | AR | |||
| 94 | 324006-14 | 4 | SCREW | AR | |||
| 96 | N468472 | 8 | PIN | 4X6 | AR | ||
| 97 | N463250 | 1 | SPINDLE | AR | |||
| 98 | N467014 | 1 | RETAINER | AR | |||
| 99 | N502900 | 1 | WASHER | AR | |||
| 800 | 578970-04 | 1 | GREASE | 80g | AR | ||
| 801 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | AR | ||
| 821 | N581591 | 1 | RATING LABEL | AR | |||
| 826 | N196274 | 1 | LABEL | PERFORM & PROTECT | AR | ||
| 837 | 1003969-99 | 1 | S.T.CIRCLIP INSERTER | 3KG | AR | ||
| 837 | 1003968-99 | 1 | S.T.CIRCLIP INSERTER | 3KG | AR | ||
| 838 | 1003967-99 | 1 | S.T.CIRCLIP INSERTER | 3KG | AR | ||
| 839 | 1003970-99 | 1 | S.T.DIS-ASSEMBLY JIG | 3KG | AR | ||
| 861 | N506514 | 1 | KITBOX | AR |
