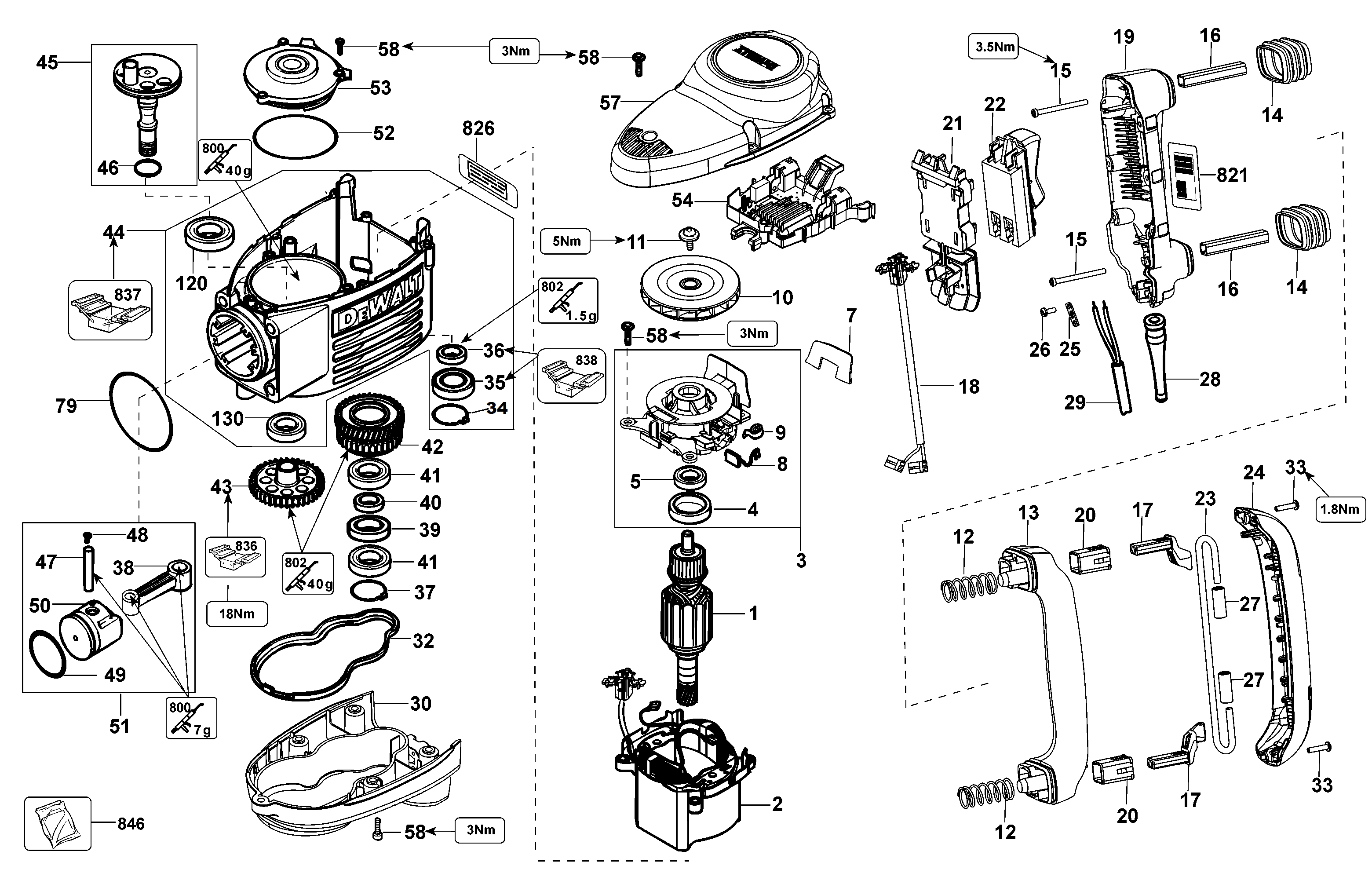

D25951K DEMOLITION HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 579837-02 | 1 | ARMATURE 230V | B2 | |||
| 2 | 579827-04 | 1 | FIELD SA 230V | B2 | |||
| 3 | 1007719-00 | 1 | BRUSH HOLDER SA | B2 | |||
| 4 | 590191-00 | 1 | SLEEVE INSULATING | B2 | |||
| 5 | 577745-00 | 1 | BEARING | B2 | |||
| 7 | 1007800-00 | 1 | SEAL | B2 | |||
| 8 | 1005550-02 | 1 | BRUSH PAIR 230V | B2 | |||
| 9 | 487377-00 | 2 | BRUSH SPRING | B2 | |||
| 10 | N542569 | 1 | FAN SA | B2 | |||
| 11 | 324119-02 | 1 | SCREW | B2 | |||
| 12 | 1005637-00 | 2 | SPRING COMPRESSION | B2 | |||
| 13 | 1005640-00 | 1 | HOUSING HANDLE | B2 | |||
| 14 | 1005643-00 | 2 | BELLOWS | B2 | |||
| 15 | 1005672-00 | 1 | SCREW | B2 | |||
| 16 | 1005646-00 | 2 | TUBE GUIDE | B2 | |||
| 17 | 1005644-00 | 2 | STOP | B2 | |||
| 18 | 487326-03 | 1 | LEAD & SOCKET SA | B2 | |||
| 19 | 1005639-00 | 1 | Handle | B2 | |||
| 20 | 1005496-01 | 2 | GUIDE BUSH | B2 | |||
| 21 | N572223 | 1 | CARRIER | B2 | |||
| 22 | N485854 | 1 | SWITCH | B2 | |||
| 23 | 1005645-00 | 1 | ROD | B2 | |||
| 24 | 1005641-00 | 1 | HANDLE COVER | B2 | |||
| 25 | 821070 | 1 | CORD CLAMP | B2 | |||
| 26 | 330065-08 | 7 | SCREW | M4x18 T20 | B2 | ||
| 27 | 1005942-00 | 2 | SLEEVE BEARING | B2 | |||
| 28 | 323091-01 | 1 | CORD PROTECTOR | B2 | |||
| 29 | 582573-11 | 1 | CORDSET | B2 | |||
| 30 | 1005642-00 | 1 | COVER GEARCASE | B2 | |||
| 32 | 487224-00 | 1 | SEAL | B2 | |||
| 33 | 330065-08 | 2 | SCREW | M4x18 T20 | B2 | ||
| 34 | 324821-04 | 1 | CIRCLIP | B2 | |||
| 35 | N110363 | 1 | BEARING | B2 | |||
| 35 | N570313 | 1 | BEARING | B2 | |||
| 36 | 487209-01 | 1 | SEAL | B2 | |||
| 37 | 324821-04 | 1 | CIRCLIP | B2 | |||
| 38 | N533907 | 1 | CON ROD | B2 | |||
| 39 | 578452-00 | 1 | SPACER | B2 | |||
| 40 | 578451-00 | 1 | SPACER | B2 | |||
| 41 | 605040-26 | 1 | BEARING | B2 | |||
| 42 | 582108-00 | 1 | GEAR SA | B2 | |||
| 43 | 582109-00 | 1 | GEAR | B2 | |||
| 44 | 582110-00 | 1 | GEARBOX SA | B2 | |||
| 45 | 582111-00 | 1 | CRANKSHAFT | B2 | |||
| 46 | 576451-00 | 1 | RING | B2 | |||
| 47 | 582387-00 | 1 | PIN | B2 | |||
| 48 | 581656-00 | 2 | PIN | B2 | |||
| 49 | 487287-00 | 1 | O RING | B2 | |||
| 50 | 582112-00 | 1 | PISTON | B2 | |||
| 51 | 582113-01 | 1 | PISTON KIT | B2 | |||
| 52 | 323711-47 | 1 | O RING | B2 | |||
| 53 | N147097 | 1 | COVER SA | B2 | |||
| 54 | 1007717-02 | 1 | GACC MODULE 230V | B2 | |||
| 55 | 479319-00 | 2 | CLAMPING INSERT | B2 | |||
| 56 | 487284-00 | 1 | WASHER CLAMP | B2 | |||
| 57 | 1005666-01 | 1 | COVER | B2 | |||
| 58 | 324007-11 | 23 | SCREW | M5 X 18 | B2 | ||
| 59 | 584240-01 | 1 | HANDLE SIDE SA | B2 | |||
| 60 | 487343-00 | 1 | BOLT | B2 | |||
| 61 | 487277-00 | 1 | Handle | B2 | |||
| 62 | 479317-01 | 2 | WASHER LOCK | B2 | |||
| 63 | 487393-00 | 1 | CLAMP | B2 | |||
| 64 | 487291-00 | 1 | KNOB SA | B2 | |||
| 65 | 949886-32 | 4 | SCREW | B2 | |||
| 66 | 487283-00 | 1 | COVER HOUSING | B2 | |||
| 67 | 582369-00 | 1 | BEAT PIECE | B2 | |||
| 68 | 582388-00 | 1 | BUSH | B2 | |||
| 69 | 496843-00 | 1 | DAMPER | B2 | |||
| 70 | 582114-00 | 1 | BUSH | B2 | |||
| 71 | 496842-00 | 1 | DAMPER | B2 | |||
| 72 | 496845-00 | 1 | BUSH | B2 | |||
| 73 | 487298-00 | 1 | O RING | B2 | |||
| 74 | 323711-46 | 1 | O RING | B2 | |||
| 75 | N075953 | 1 | CYLINDER | B2 | |||
| 76 | 582115-00 | 1 | RAM | B2 | |||
| 77 | 487287-00 | 2 | O RING | B2 | |||
| 78 | 323711-56 | 1 | O RING | B2 | |||
| 79 | 323711-55 | 1 | O RING | B2 | |||
| 80 | 582372-00 | 1 | HOUSING FRONT | B2 | |||
| 81 | 487317-00 | 2 | SPRING | B2 | |||
| 82 | 578784-00 | 2 | GUIDE | B2 | |||
| 83 | 582373-00 | 1 | COUNTERWEIGHT | B2 | |||
| 84 | 487316-00 | 2 | SPRING GUIDE | B2 | |||
| 90 | 582374-00 | 1 | BEARING | B2 | |||
| 91 | 487302-00 | 1 | DAMPER | B2 | |||
| 92 | N014013 | 1 | SEAL | B2 | |||
| 93 | 579784-00 | 1 | LOCKING RING | B2 | |||
| 94 | N578217 | 1 | SPINDLE SA | B2 | |||
| 95 | 323711-41 | 1 | O RING | B2 | |||
| 96 | 487218-00 | 1 | SPRING | B2 | |||
| 97 | 582375-00 | 1 | FLANGE | B2 | |||
| 98 | N532326 | 1 | BUSH | B2 | |||
| 99 | N537380 | 1 | SLEEVE | B2 | |||
| 100 | N532923 | 1 | LOCK | B2 | |||
| 101 | N546022 | 1 | SPRING | B2 | |||
| 102 | N532488 | 1 | GUIDE | B2 | |||
| 103 | 489672-00 | 2 | KEY | B2 | |||
| 105 | 487249-00 | 1 | BUSH | B2 | |||
| 106 | N546094 | 1 | SPRING | B2 | |||
| 107 | N580469 | 1 | SLEEVE SA | B2 | |||
| 108 | 487244-00 | 1 | RUBBER | B2 | |||
| 109 | 487241-00 | 1 | WASHER | B2 | |||
| 110 | 487205-00 | 1 | RING | B2 | |||
| 111 | 487238-01 | 1 | SEAL | B2 | |||
| 120 | 330003-68 | 1 | BEARING | B2 | |||
| 130 | 330003-69 | 1 | BEARING | B2 | |||
| 800 | 578970-06 | 1 | GREASE 150 GMS | B2 | |||
| 801 | 328771-07 | 1 | GREASE | 50G, BIT GREASE | B2 | ||
| 802 | 870889-02 | 1 | GREASE | B2 | |||
| 821 | N571478 | 1 | RATING LABEL | B2 | |||
| 826 | 487395-01 | 1 | LABEL | B2 | |||
| 836 | 559617-99 | 1 | S.T.SUPPORT JIG | Crank Gear removal. | B2 | ||
| 837 | 559618-99 | 1 | S.T.SUPPORT JIG | Motor assembly jig | B2 | ||
| 838 | 559621-99 | 1 | SERVICE TOOL | Armature brg tool | B2 | ||
| 840 | 559629-99 | 1 | S.T.CIRCLIP REMOVER | Snap ring SA kit | B2 | ||
| 843 | 559630-99 | 1 | SERVICE TOOLING KIT | Unique Kit parts, | B2 | ||
| 845 | 559628-99 | 1 | S.T.MANDREL | Seal insert tool | B2 | ||
| 846 | 1008770-00 | 1 | SERVICE KIT 230V | B2 | |||
| 861 | 487353-04 | 1 | KITBOX | B2 |
