DW562K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page

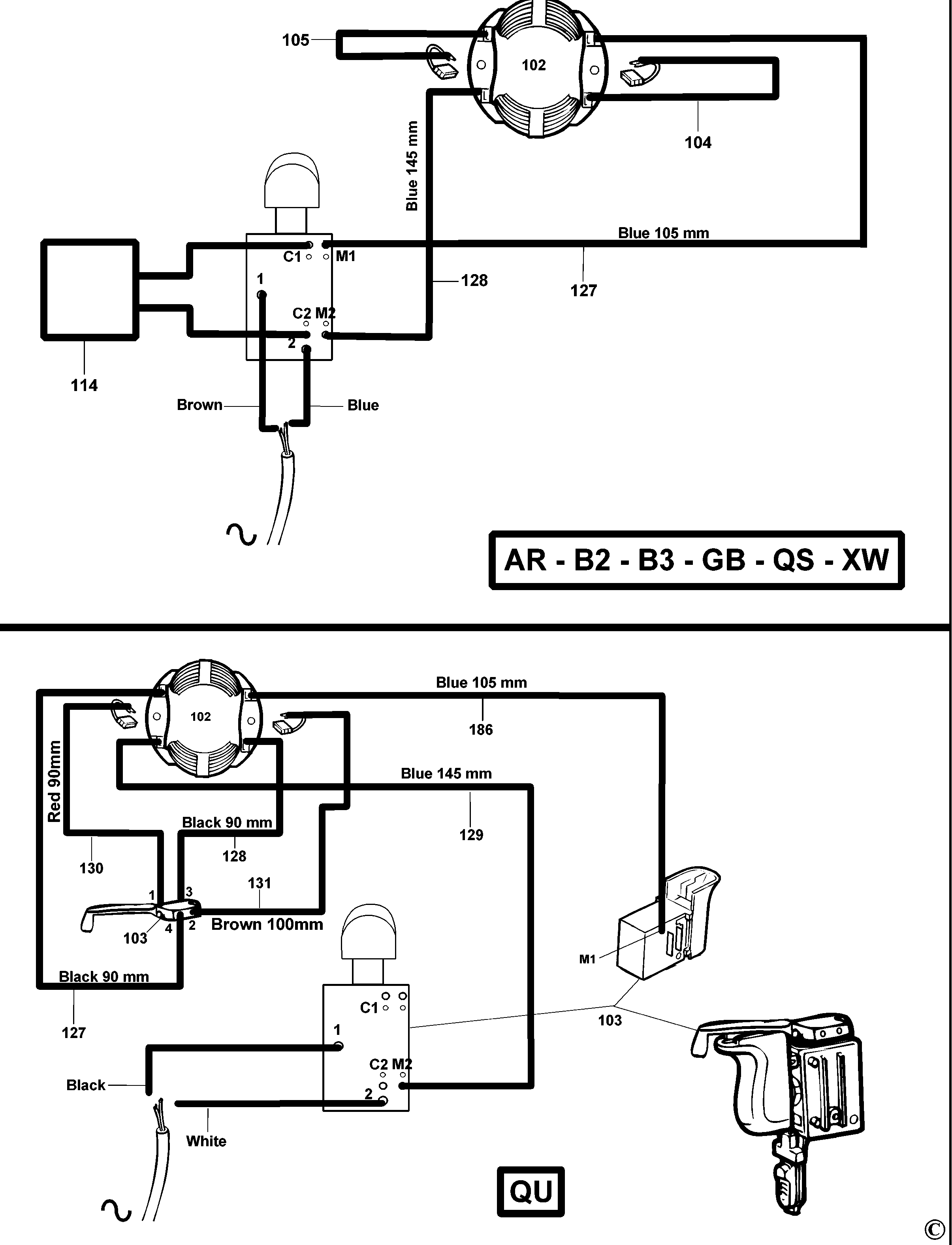

| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 377809-10 | 1 | ARMATURE 230V | B2 | |||
| 102 | 328961-17 | 1 | FIELD 230V | B2 | |||
| 103 | 176830-13 | 1 | SWITCH SA | B2 | |||
| 104 | 576980-02 | 1 | BRUSH 230V | B2 | |||
| 105 | 576980-04 | 1 | BRUSH 230V | B2 | |||
| 106 | 401878-00 | 1 | BRUSH HOLDER SA | B2 | |||
| 107 | 401877-00 | 1 | BRUSH HOLDER SA | B2 | |||
| 108 | 327293-00 | 1 | BAFFLE FAN | B2 | |||
| 109 | 949638-01 | 2 | BUFFER | B2 | |||
| 110 | 5103541-00 | 2 | SCREW | B2 | |||
| 113 | 327290-05 | 1 | HOUSING SA | Yellow | B2 | ||
| 114 | 949877-01 | 1 | CAPACITOR | B2 | |||
| 115 | 330065-06 | 2 | SCREW | B2 | |||
| 116 | 330003-19 | 1 | BEARING | B2 | |||
| 117 | 949876-25 | 1 | WASHER | B2 | |||
| 118 | 870052 | 1 | SLEEVE | B2 | |||
| 119 | 329794-00 | 1 | SCREW | B2 | |||
| 120 | 327296-00 | 1 | CAP | B2 | |||
| 121 | 327298-01 | 1 | SWITCH COVER | B2 | |||
| 122 | 330065-07 | 2 | SCREW | B2 | |||
| 123 | 930026-01 | 1 | BUMPER | B2 | |||
| 124 | 402649-00 | 1 | CORD CLAMP | B2 | |||
| 125 | 403395-00 | 1 | CORD PROTECTOR | B2 | |||
| 126 | 324438-68 | 1 | CORDSET (EURO) | B2 | |||
| 127 | 949801-70 | 1 | LEAD BLUE | B2 | |||
| 128 | 573310-00 | 1 | LEAD SA | B2 | |||
| 136 | 327110-00 | 1 | SPACER | B2 | |||
| 137 | 324044-02 | 4 | SCREW | B2 | |||
| 138 | 323489-00 | 1 | CAP | B2 | |||
| 139 | 576756-00 | 1 | COLLAR | B2 | |||
| 142 | 578387-00 | 1 | WASHER | B2 | |||
| 143 | 871690 | 1 | SPRING | B2 | |||
| 144 | 324432-00 | 1 | SEAL SA | B2 | |||
| 145 | 329968-06 | 1 | GEARCASE SA | B2 | |||
| 146 | 329907-00 | 1 | WASHER | B2 | |||
| 147 | 583890-00 | 1 | BALL | B2 | |||
| 148 | 325880-05 | 1 | PIN | B2 | |||
| 149 | 577080-01 | 1 | SPINDLE SA | B2 | |||
| 154 | 327100-00S | 1 | CASTING | B2 | |||
| 155 | 328507-00 | 1 | SHIELD | B2 | |||
| 156 | 323572-00 | 1 | SEAL | B2 | |||
| 161 | 327093-00 | 1 | FILTER | B2 | |||
| 162 | N032136 | 1 | RAM SA | INCL. 163 | B2 | ||
| 163 | 577168-00 | 1 | O RING | B2 | |||
| 164 | 487143-00 | 1 | AXLE | B2 | |||
| 165 | 327072-00 | 1 | SHIM | B2 | |||
| 166 | 323762-02 | 1 | CIRCLIP | B2 | |||
| 167 | 487401-00 | 1 | CLUTCH SA | B2 | |||
| 168 | 327074-00 | 1 | RING | B2 | |||
| 169 | 487067-00 | 1 | PISTON | B2 | |||
| 170 | 323395-33 | 1 | SPRING | B2 | |||
| 171 | 575193-01 | 1 | SPINDLE SA | B2 | |||
| 172 | 324430-03 | 1 | BEARING AXIAL | B2 | |||
| 173 | 324431-03 | 1 | WASHER 7 | B2 | |||
| 174 | 939794-02 | 1 | HANDLE SIDE SA | B2 | |||
| 175 | 580787-00 | 1 | DEPTH STOP | B2 | |||
| 800 | 870889-02 | 1 | GREASE | B2 | |||
| 816 | 395047-00 | 1 | BRAND LABEL | B2 |
