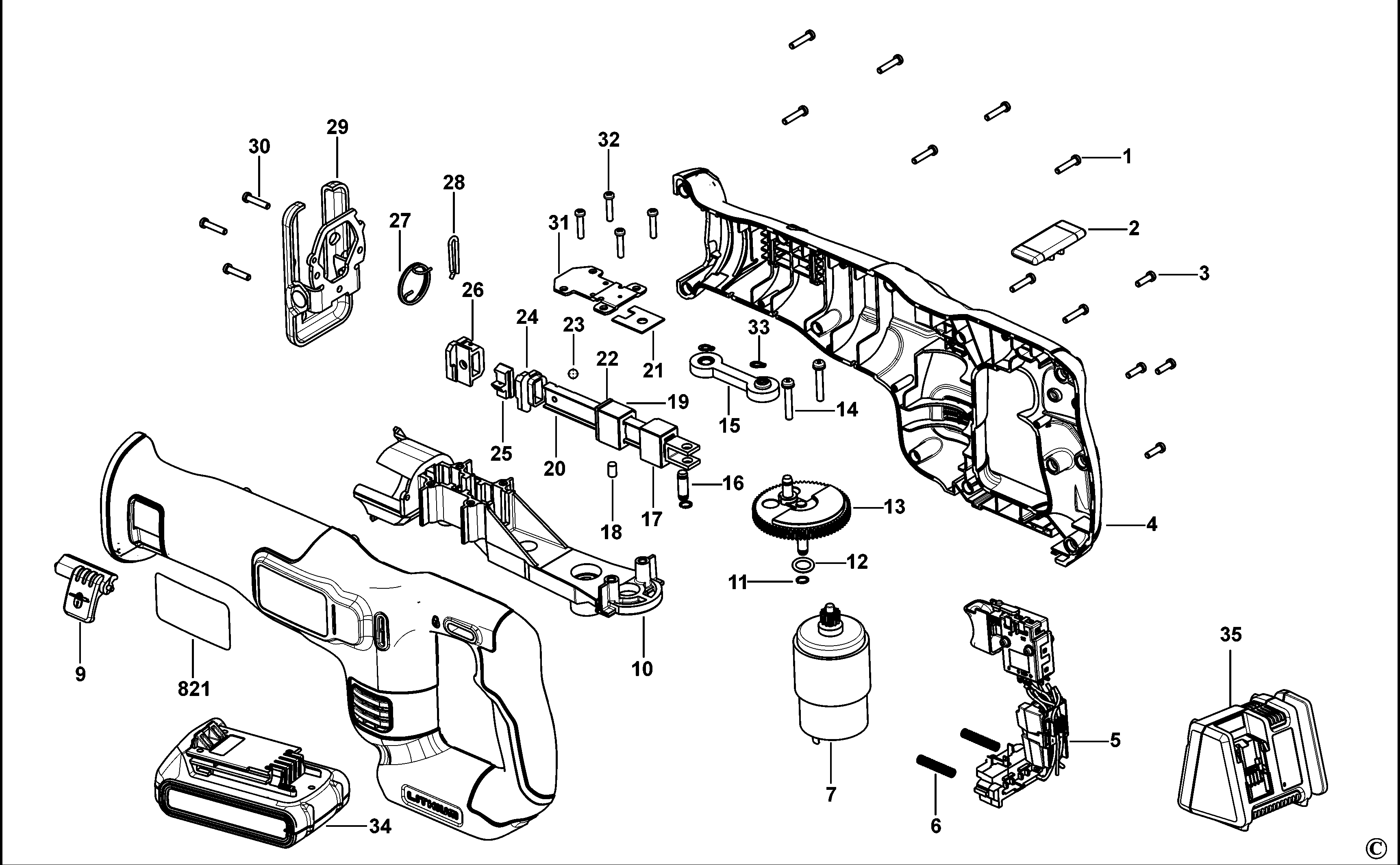

BDCR18 RECIPROCATING SAW Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 497283-01 | 8 | SCREW | QW | |||
| 2 | 90591822 | 1 | ACTUATOR | QW | |||
| 3 | 486563-00 | 4 | SCREW | QW | |||
| 4 | 90591332N | 1 | CLAMSHELL | QW | |||
| 5 | 90612185 | 1 | SWITCH SA | QW | |||
| 5 | 90612185 | 1 | SWITCH SA | QW | |||
| 6 | 5100035-03 | 2 | SPRING | QW | |||
| 7 | 90533876 | 1 | MOTOR & PINION | QW | |||
| 9 | 90593644 | 1 | LEVER SA | QW | |||
| 10 | 90591337 | 1 | GEARCASE SA | QW | |||
| 11 | 498946-00 | 1 | CIRCLIP | QW | |||
| 12 | 498945-00 | 1 | WASHER | QW | |||
| 13 | 90533879 | 1 | GEAR & PINION SA | QW | |||
| 14 | 498974-00 | 2 | SCREW | QW | |||
| 15 | 90533883 | 1 | CON ROD SA | QW | |||
| 16 | 498918-40 | 1 | SHAFT | QW | |||
| 17 | 90538467 | 1 | SLEEVE BEARING | QW | |||
| 18 | 498972-00 | 1 | PLUG | QW | |||
| 19 | 90538466 | 1 | SLEEVE BEARING | QW | |||
| 20 | 90536386 | 1 | BEAM | QW | |||
| 21 | 499574-00 | 1 | INSULATOR | QW | |||
| 22 | 499687-00 | 1 | DAMPER | QW | |||
| 23 | 000903-00 | 1 | BALL | QW | |||
| 24 | 498563-01 | 1 | COLLAR | QW | |||
| 25 | 498561-01 | 2 | SLIDER | QW | |||
| 26 | 498565-31 | 1 | COLLAR | QW | |||
| 27 | 498567-00 | 1 | SPRING | QW | |||
| 28 | 498566-00 | 2 | LOCKING PIN | QW | |||
| 29 | 498755-03 | 1 | SHOE SA | QW | |||
| 30 | 497283-01 | 3 | SCREW | QW | |||
| 31 | 90533069 | 1 | RETAINING PLATE | QW | |||
| 32 | 497283-01 | 4 | SCREW | QW | |||
| 33 | 498946-00 | 2 | CIRCLIP | QW | |||
| 34 | 90635616 | 1 | BATTERY 18V - 2.0AH - 36WH | Li-Ion - BL2018-XJ | BDCR18F | QW | |
| 34 | 90641356 | 1 | BATTERY 18V - 1.5AH - 27WH | Li-Ion - BL1518-XJ | BDCR18 | QW | |
| 34 | N726529 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - BL4018-XJ | BDCR18M1 | QW | |
| 34 | N763608 | 1 | BATTERY 18V - 2.5AH - 45WH | Li-Ion - BL2518 | BDCR18E1 | QW | |
| 34 | N763608 | 1 | BATTERY 18V - 2.5AH - 45WH | Li-Ion - BL2518 | BDCR18E1 | QW | |
| 34 | N494491 | 1 | BATTERY 18V - 2.0AH - 36WH | Li-Ion - BL2018ST | BDCR18ST | QW | |
| 35 | 90634971 | 1 | CHARGER SA | 1A - BDCA1-QW | BDCR18ST | QW | |
| 35 | 90634971 | 1 | CHARGER SA | 1A - BDCA1-QW | BDCR18F | QW | |
| 35 | 90634971 | 1 | CHARGER SA | 1A - BDCA1-QW | BDCR18E1 / M1 | QW | |
| 35 | N494098 | 1 | CHARGER SA | 0.4A | BDCR18 | QW | |
| 821 | 90620176 | 1 | RATING PLATE | BDCR18 | QW |
