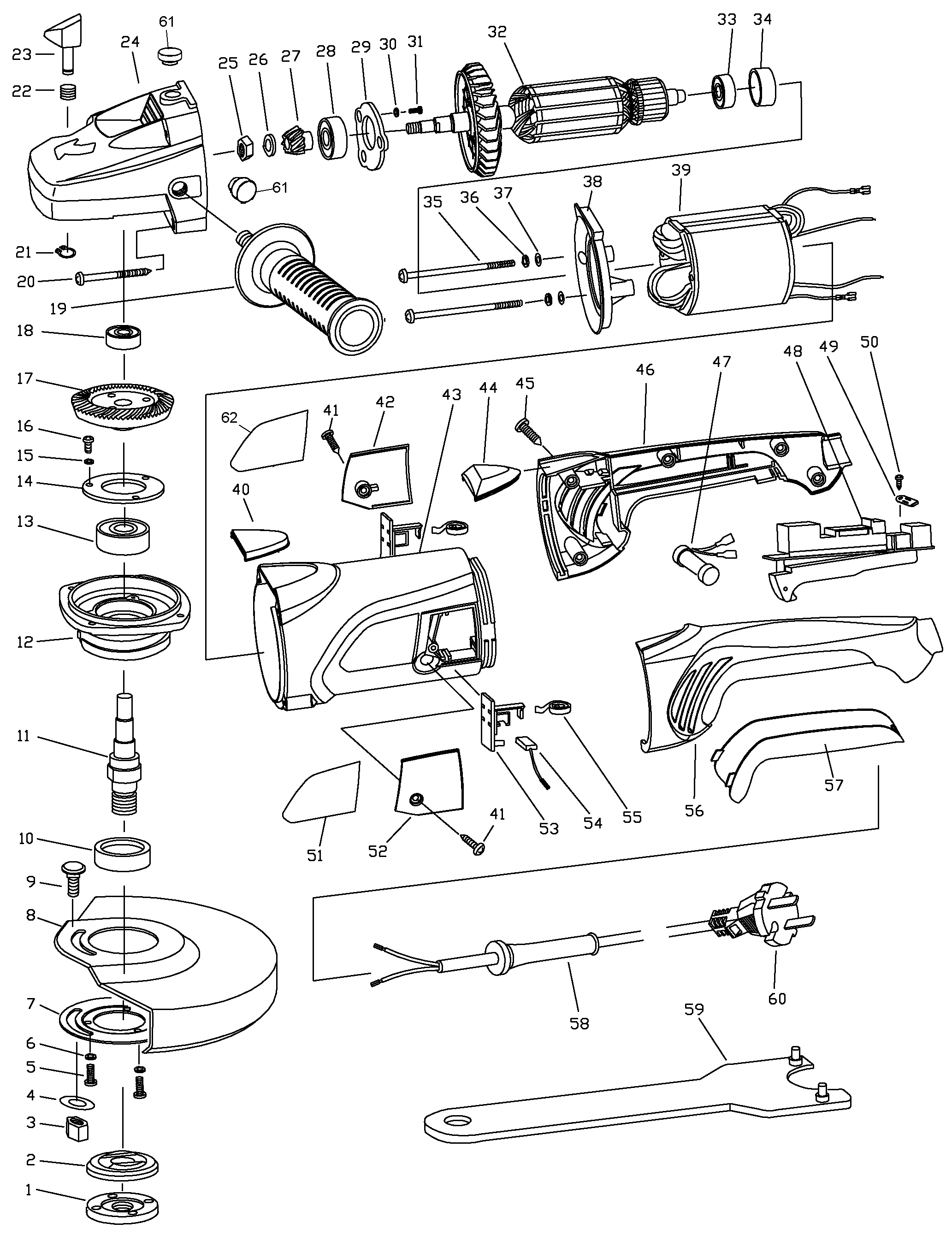

KG2001 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 569320-00 | 1 | OUTER FLANGE | AR | |||
| 2 | 569321-00 | 1 | INNER FLANGE | AR | |||
| 3 | 569322-00 | 1 | NUT | AR | |||
| 4 | 569323-00 | 1 | WASHER | AR | |||
| 5 | 569324-00 | 3 | SCREW | M5 X 20mm | AR | ||
| 6 | 569325-00 | 3 | WASHER SPRING | AR | |||
| 7 | 569326-00 | 1 | FLANGE | AR | |||
| 8 | 596079-00 | 1 | GUARD | 180mm | AR | ||
| 9 | 569328-00 | 1 | BOLT | AR | |||
| 10 | 569329-00 | 1 | COVER | 1004450-00 | AR | ||
| 11 | 569330-00 | 1 | SPINDLE | AR | |||
| 12 | 569331-00 | 1 | GEARCASE COVER | AR | |||
| 13 | 569332-00 | 1 | BEARING | 6203ZZ - 17x40x12mm | AR | ||
| 14 | 569333-00 | 1 | BEARING PLATE | AR | |||
| 15 | 569334-00 | 3 | WASHER SPRING | AR | |||
| 16 | 569335-00 | 3 | SCREW | M4 x 12 round head | AR | ||
| 17 | 596080-00 | 1 | GEAR | AR | |||
| 18 | 569337-00 | 1 | BEARING | 6000ZZ - 10x26x8mm | AR | ||
| 19 | 569338-00 | 1 | HANDLE | AR | |||
| 20 | 569339-00 | 4 | SCREW | AR | |||
| 21 | 569340-00 | 1 | CIRCLIP | AR | |||
| 22 | 569341-00 | 1 | SPRING | AR | |||
| 23 | 569342-00 | 1 | SPINDLE LOCK | AR | |||
| 24 | 1003728-00 | 1 | GEARCASE SA | Use after date code 2007-34 | AR | ||
| 24 | 569343-00 | 1 | GEARCASE | Use before date code 2007-34 | AR | ||
| 25 | 569344-00 | 1 | NUT | AR | |||
| 26 | 569345-00 | 1 | WASHER SPRING | AR | |||
| 27 | 596081-00 | 1 | PINION | AR | |||
| 28 | 569347-00 | 1 | BEARING | 6201ZZ - 12x32x10mm | AR | ||
| 29 | 569348-00 | 1 | BEARING PLATE | AR | |||
| 30 | 569349-00 | 3 | WASHER SPRING | AR | |||
| 31 | 569350-00 | 3 | SCREW | AR | |||
| 32 | 569351-00 | 1 | ARMATURE | AR | |||
| 33 | 569337-00 | 1 | BEARING | 6000ZZ - 10x26x8mm | AR | ||
| 34 | 569353-00 | 1 | BEARING HOLDER | AR | |||
| 35 | 569354-00 | 2 | SCREW | AR | |||
| 36 | 569355-00 | 2 | WASHER SPRING | AR | |||
| 37 | 569356-00 | 2 | WASHER | AR | |||
| 38 | 569357-00 | 1 | BAFFLE | AR | |||
| 39 | 569358-00 | 1 | FIELD | AR | |||
| 40 | 569359-00 | 1 | PAD | AR | |||
| 41 | 569360-00 | 2 | SCREW | AR | |||
| 42 | 569361-00 | 1 | BRUSH CAP | RH | AR | ||
| 43 | 1003729-00 | 1 | HOUSING MOTOR | Use after date code 2007-34 | AR | ||
| 43 | 569362-00 | 1 | HOUSING MOTOR | Use before date code 2007-34 | AR | ||
| 44 | 569363-00 | 1 | PAD | AR | |||
| 45 | 569364-00 | 5 | SCREW | AR | |||
| 46 | 569365-00 | 1 | HANDLE RH | AR | |||
| 47 | 569366-00 | 1 | RESISTOR | AR | |||
| 48 | 569367-00 | 1 | SWITCH | AR | |||
| 49 | 569368-00 | 1 | CABLE CLAMP | AR | |||
| 50 | 569369-00 | 1 | SCREW | AR | |||
| 51 | 569370-00 | 1 | BRAND LABEL | AR | |||
| 52 | 569371-00 | 1 | BRUSH CAP | LH | AR | ||
| 53 | 569372-00 | 2 | BRUSH HOLDER | AR | |||
| 54 | 569373-00 | 2 | BRUSH PAIR | AR | |||
| 55 | 569374-00 | 2 | BRUSH SPRING | AR | |||
| 56 | 569375-00 | 1 | HANDLE LH | AR | |||
| 57 | 569376-00 | 1 | HANDLE COVER | AR | |||
| 58 | 569377-00 | 1 | CORD PROTECTOR | AR | |||
| 59 | 569378-00 | 1 | WRENCH | AR | |||
| 60 | ZP230AR-60 | 1 | CORD & PLUG | AR | |||
| 61 | 569283-00 | 2 | CAP | AR | |||
| 62 | ZP180AR-62 | 1 | NAMEPLATE | KG2001-AR | AR |
