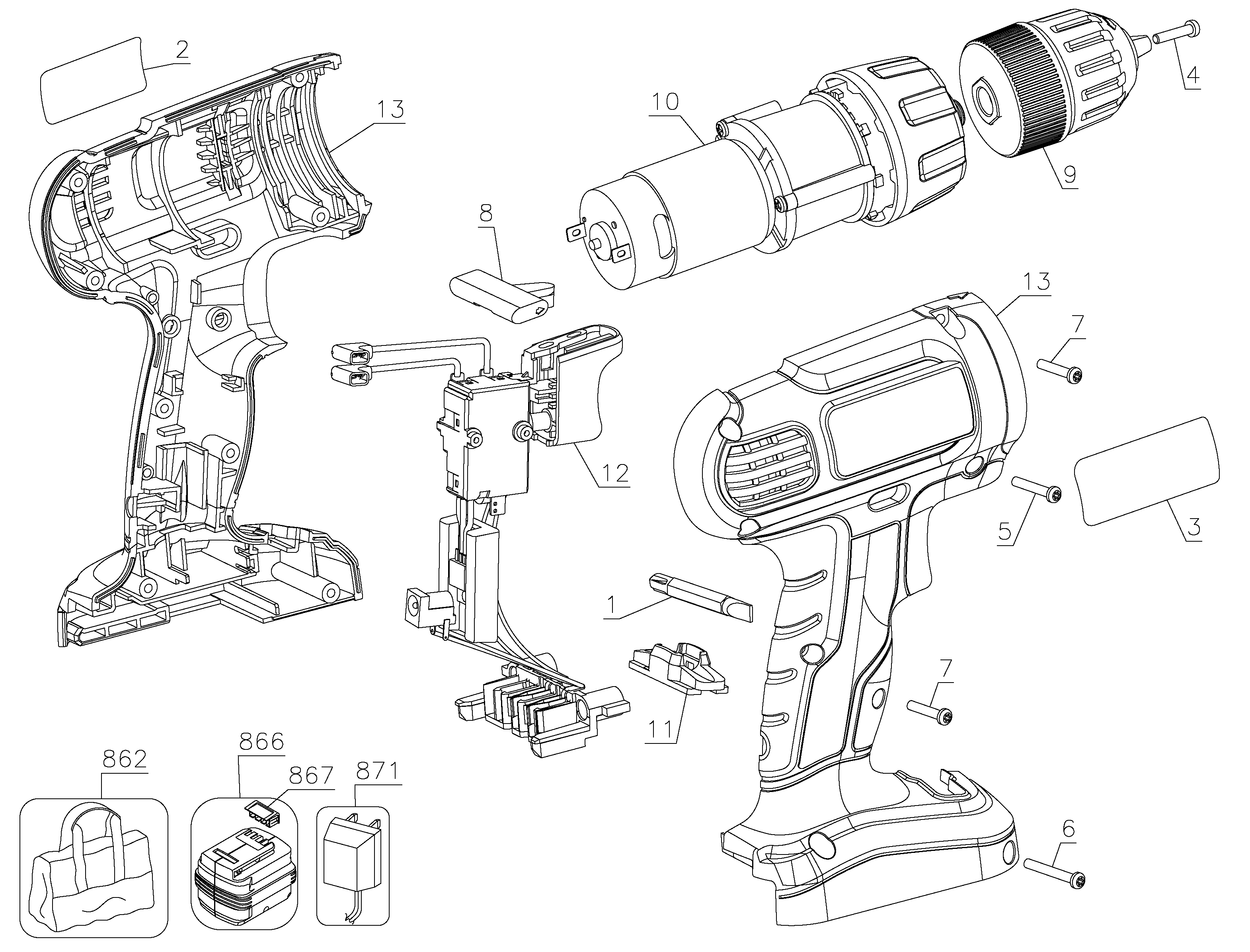

GC1440 CORDLESS DRILL/DRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 419581-01 | 1 | BIT | B2C | |||
| 2 | 90533185 | 1 | LABEL | B2C | |||
| 3 | 90533188 | 1 | NAMEPLATE | GC1440 Type 1 | B2C | ||
| 4 | 149518-01 | 1 | SCREW | B2C | |||
| 5 | 497283-01 | 2 | SCREW | B2C | |||
| 6 | 498099-00 | 2 | SCREW | B2C | |||
| 7 | 5106167-00 | 4 | SCREW | B2C | |||
| 8 | 90530825 | 1 | ACTUATOR FWD/REV | B2C | |||
| 9 | 90531604 | 1 | CHUCK 10MM | KEYLESS | B2C | ||
| 10 | 90565888-05 | 1 | MOTOR & GEARBOX | 14.4V motor | B2C | ||
| 11 | 90533048 | 1 | HOLDER BIT | B2C | |||
| 12 | 90533050 | 1 | SWITCH SA | B2C | |||
| 13 | 90534294 | 1 | CLAMSHELL | W/Jack Hole | B2C | ||
| 862 | 90641797 | 1 | BAG | B2C | |||
| 866 | HPB14 | 1 | BATTERY | 14.4 Volt | B2C | ||
| 867 | 5102026-00 | 1 | CAP | B2C | |||
| 871 | 90543175 | 1 | CHARGER | B2 | B2C |
