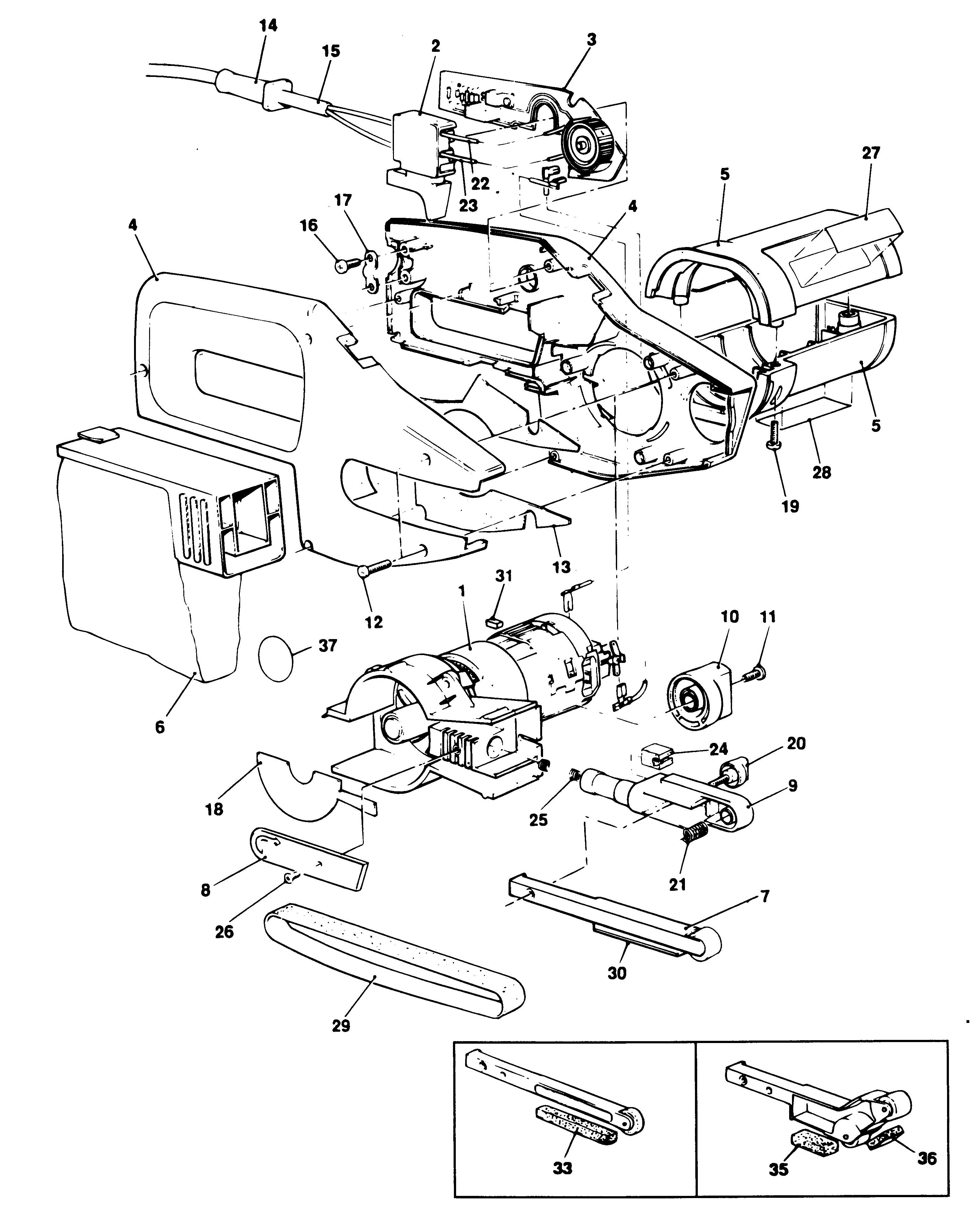

BD292E POWERFILE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 748552-05 | 1 | MOTOR | H2 | CH | ||
| 2 | 826249 | 1 | SWITCH | DE-AT (H1) | CH | ||
| 2 | 826249 | 1 | SWITCH | DE-AT (H2) | CH | ||
| 2 | 826249 | 1 | SWITCH | CH | |||
| 3 | 747847 | 1 | CONTROLLER SA | H2 | CH | ||
| 4 | 806733-07 | 1 | CLAMSHELL PAIR | CH | |||
| 5 | 806736-04 | 1 | HOUSING MOTOR | H2 | CH | ||
| 6 | 809394 | 1 | DUSTBAG | CH | |||
| 7 | 579537-00 | 1 | ARM 13MM STANDARD | CH | |||
| 8 | 831284 | 1 | GUARD | CH | |||
| 9 | 833810 | 1 | CASTING | CH | |||
| 10 | 826239-01 | 1 | KNOB | CH | |||
| 11 | 821032 | 1 | SCREW | CH | |||
| 12 | 330013-04 | 8 | SCREW | H2 | CH | ||
| 13 | 828050 | 1 | GASKET | CH | |||
| 14 | 770235 | 1 | PROTECTOR | CH | |||
| 15 | 330048-05 | 1 | CORDSET (EURO) | DE-AT (H1) | CH | ||
| 15 | 330048-05 | 1 | CORDSET (EURO) | DE-AT (H2) | CH | ||
| 15 | 330048-27 | 1 | CORDSET | CH | |||
| 16 | 821057 | 2 | SCREW | No 6 x 12.7mm | CH | ||
| 17 | 821070 | 1 | CORD CLAMP | CH | |||
| 18 | 821055 | 1 | PLATE | CH | |||
| 19 | 330013-04 | 3 | SCREW | H2 | CH | ||
| 20 | 826251 | 1 | KNOB | CH | |||
| 21 | 821020 | 1 | SPRING | CH | |||
| 22 | 811547 | 1 | LEAD SA | H2 | CH | ||
| 23 | 811548 | 1 | LEAD SA | H2 | CH | ||
| 24 | 828026 | 1 | SEAL | CH | |||
| 25 | 829954 | 1 | SPRING | CH | |||
| 26 | 747330 | 1 | SCREW | CH | |||
| 28 | 747242 | 1 | BRAND LABEL | CH | |||
| 30 | N542551 | 2 | PAD-STANDARD ARM | CH | |||
| 30 | N542551 | 2 | PAD-STANDARD ARM | CH | |||
| 31 | 832998-04 | 2 | BRUSH 230V | H2 | CH | ||
| 33 | 90522370 | 1 | PAD-NARROW ARM | PARTS NOT DRAWN | CH | ||
| 35 | 829149 | 1 | PAD | PARTS NOT DRAWN | CH | ||
| 36 | 828531 | 1 | PAD | PARTS NOT DRAWN | CH |
