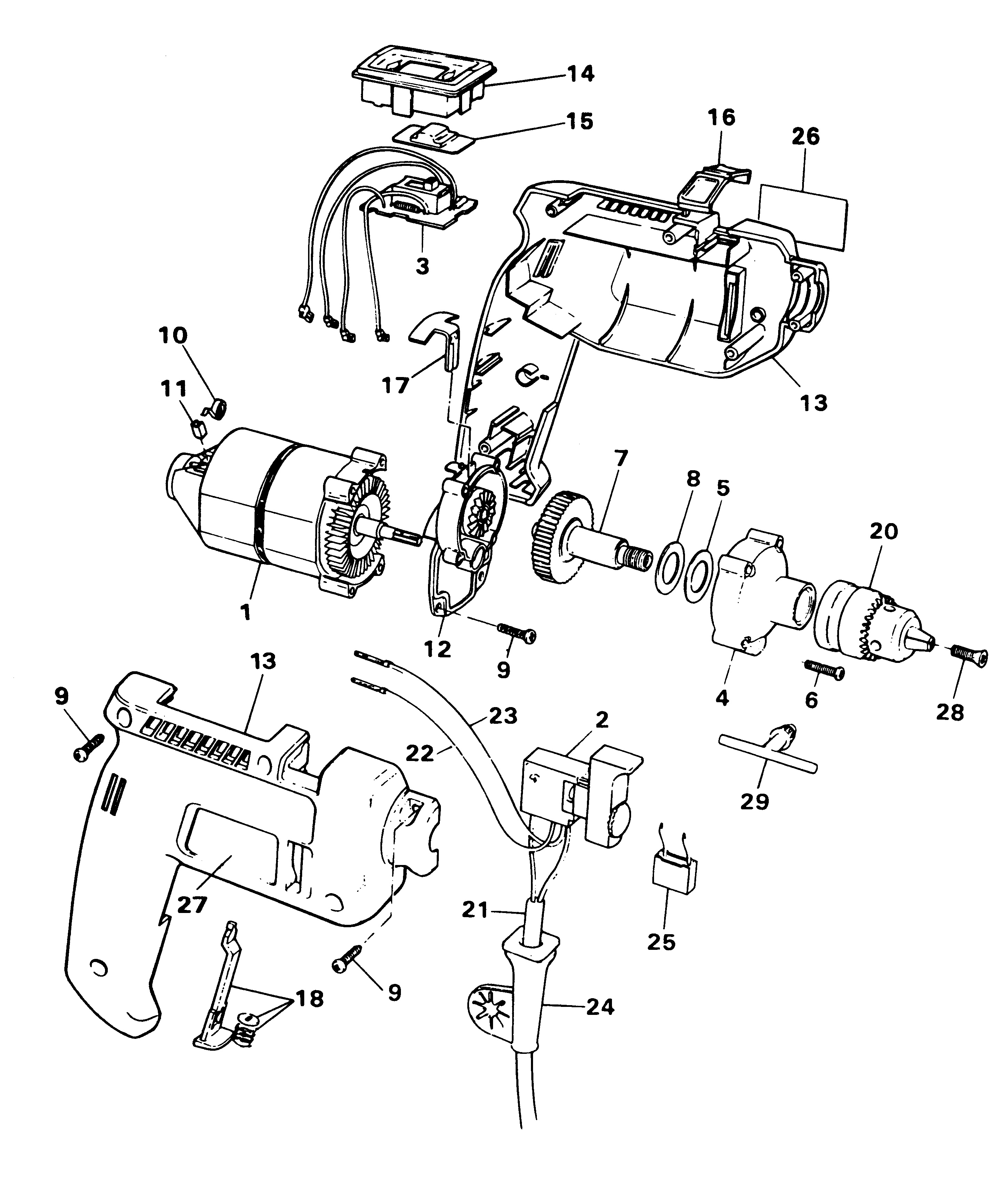

BD559 DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 793419-02 | 1 | MOTOR SA | CH | |||
| 2 | 374171-02 | 1 | SWITCH | CH | |||
| 3 | 748173-01 | 1 | PCB | CH | |||
| 4 | 748133 | 1 | GEARCASE COVER | CH | |||
| 5 | 748140-01 | 1 | WASHER SPRING | CH | |||
| 6 | 794097 | 4 | SCREW | CH | |||
| 7 | 794512-02 | 1 | SPINDLE SA | CH | |||
| 8 | 748193 | 1 | WASHER | CH | |||
| 9 | 747329 | 10 | SCREW | CH | |||
| 10 | 747634 | 2 | SPRING BRUSH | CH | |||
| 11 | 832998-04 | 2 | BRUSH 230V | CH | |||
| 13 | 573262-01 | 1 | CLAMSHELL | CH | |||
| 14 | 748159-02 | 1 | INSERT | CH | |||
| 15 | 748160 | 1 | SLIDER | CH | |||
| 16 | 796927 | 1 | ACTUATOR | CH | |||
| 17 | 748147 | 1 | PLATE THRUST | CH | |||
| 18 | 749858 | 1 | BUTTON SA | CH | |||
| 20 | 586589-00L | 1 | CHUCK KEYLESS | CHUCK KEYLESS | CH | ||
| 20 | 330033-15 | 1 | CHUCK 10MM | CHUCK S2A | CH | ||
| 20 | 330033-15 | 1 | CHUCK 10MM | CHUCK NON S2A | CH | ||
| 21 | 330048-27 | 1 | CORDSET | CH | |||
| 22 | 811537 | 1 | LEAD | CH | |||
| 23 | 374591 | 1 | LEAD SA RED | CH | |||
| 24 | 770236 | 1 | PROTECTOR | CH | |||
| 25 | 807285-03 | 1 | CAPACITOR | CH | |||
| 26 | 839017 | 1 | RATING PLATE | BD559 | CH | ||
| 27 | 839018-03 | 1 | BRAND LABEL | BD564 | CH | ||
| 27 | 839018-11 | 1 | LABEL | BD559 | CH | ||
| 27 | 839018-19 | 1 | BRAND LABEL | BD4000 | CH | ||
| 28 | 805434 | 1 | SCREW.SPECIAL | CH | |||
| 29 | 330034-00 | 1 | CHUCK KEY 10MM | CHUCK NON S2A | CH | ||
| 29 | 330034-07 | 1 | CHUCK KEY | CHUCK S2A | CH |
