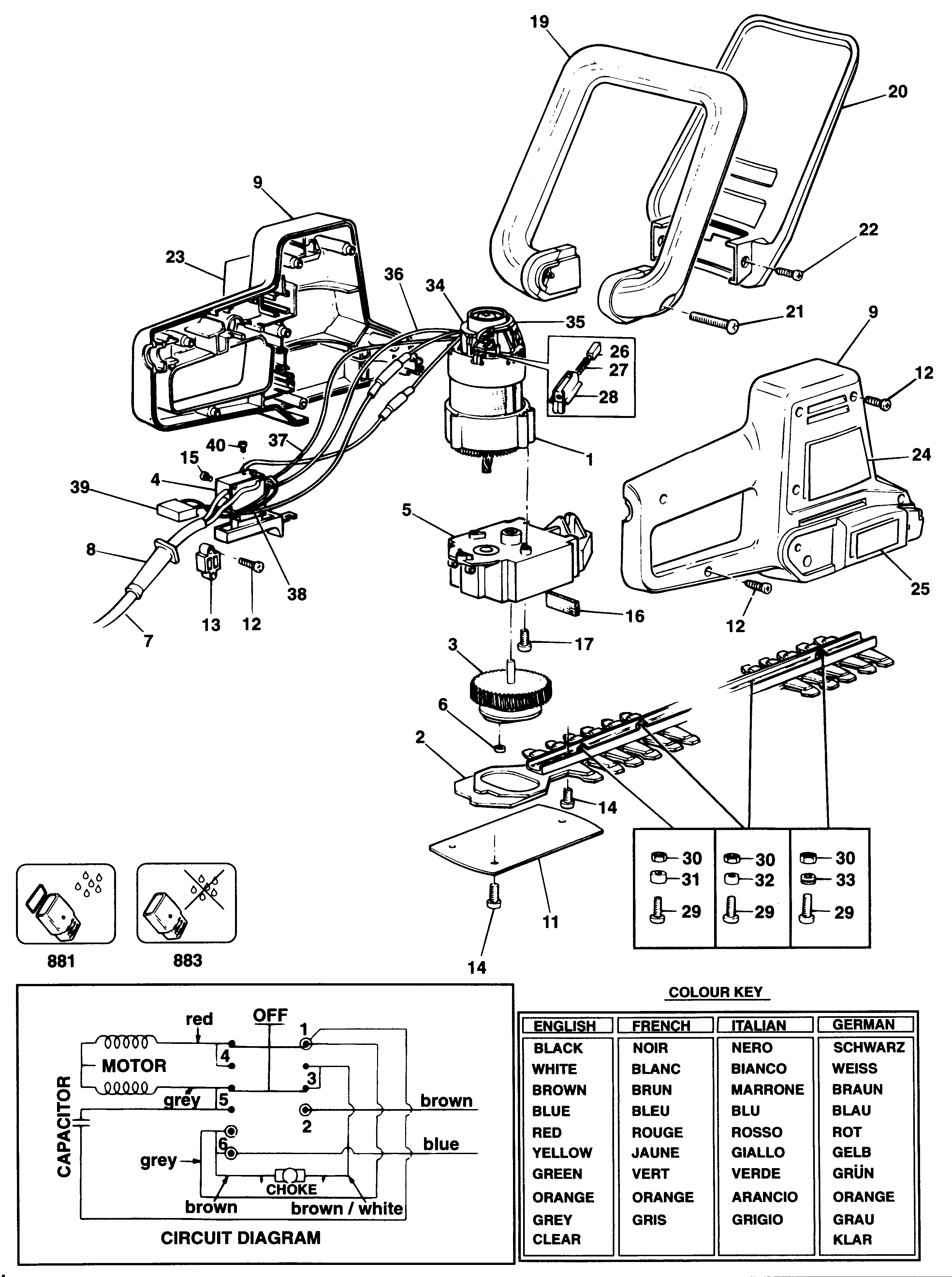

GT201 HEDGECLIPPER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	Other Info	Markets
1	376926-09	1	MOTOR SA	GB H1H	CH
1	376926-09	1	MOTOR SA	GB H1A to H1G	CH
1	376926-09	1	MOTOR SA		CH
2	795992-49	1	BLADE & GEAR SA	BLADE H1E-H PRE 1996	CH
4	797249-02	1	SWITCH		CH
5	371794-49	1	REPAIR KIT		CH
6	832472	1	ROLLER	BLADE H1,A,B,C,D	CH
7	330048-59	1	CORDSET (SPLASH)	GB H1A to H1G	CH
7	749616	1	CORDSET		CH
8	770235	1	PROTECTOR		CH
9	796291	1	CLAMSHELL		CH
11	371794-49	1	REPAIR KIT	BLADE H1E-H PRE 1996	CH
11	370099	1	COVER	BUILT FROM 1996	CH
12	849256	9	SCREW		CH
13	994808	1	CABLE CLAMP		CH
14	747507	5	SCREW	BLADE H1E-H PRE 1996	CH
14	809015	5	SCREW	BUILT FROM 1996	CH
15	854611	2	SCREW		CH
16	849718	1	PAD		CH
17	849256	3	SCREW		CH
19	829591	1	Handle		CH
20	829718	1	GUARD		CH
21	745217	2	SCREW		CH
22	828849	2	SCREW		CH
23	746170	1	BRAND LABEL		CH
24	746166	1	WARNING LABEL	GB H1H	CH
24	746166	1	WARNING LABEL	GB H1A to H1G	CH
24	746316	1	WARNING LABEL		CH
26	376143	2	BRUSH		CH
27	847709	2	SPRING		CH
28	812738	2	BRUSH HOLDER		CH
29	829808	4	SCREW		CH
30	892153	4	NUT		CH
31	829074	1	SPACER		CH
32	829075	2	SPACER		CH
33	829809	1	SPACER		CH
34	833421	1	COVER		CH
35	833494	1	LEAD GREY		CH
36	833497	1	LEAD RED		CH
37	833498	1	LEAD GREY		CH
38	833500	1	LINK		CH
39	845467	1	CAPACITOR		CH
40	854053	2	SCREW		CH
881	844840	1	COUPLER (SPLASH)	GB H1A to H1G	CH
883	885264	1	SOCKET	GB H1A to H1G	CH
