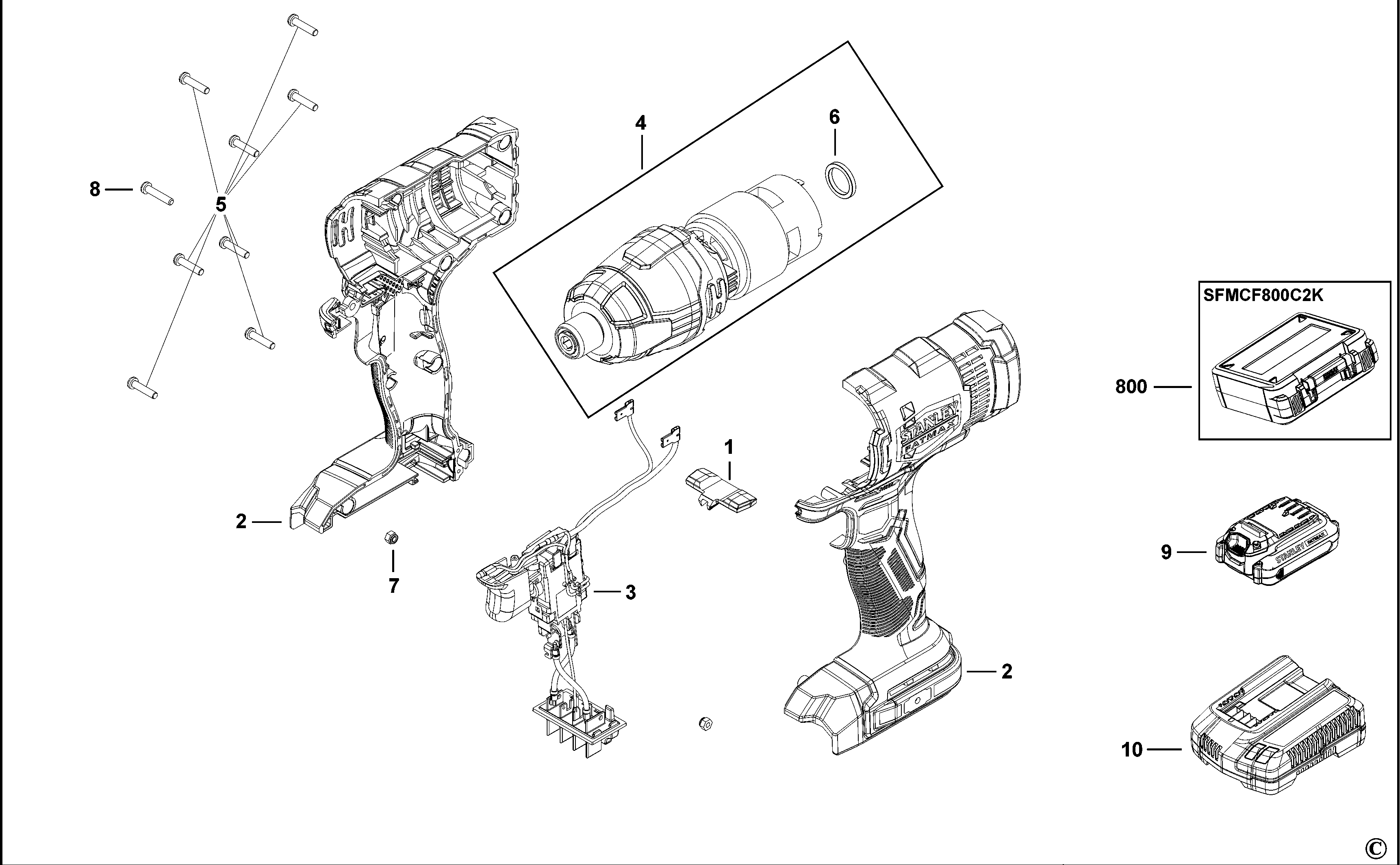

SFMCF800 IMPACT DRIVER Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N582361 | 1 | ACTUATOR FWD/REV | QW | |||
| 2 | N715199 | 1 | CLAMSHELL PAIR | QW | |||
| 3 | N690906 | 1 | SWITCH SA | QW | |||
| 4 | N722215 | 1 | TRANSMISSION SA | + MOTOR | QW | ||
| 5 | 5106167-00 | 8 | SCREW | QW | |||
| 6 | 90578553 | 1 | O RING | QW | |||
| 7 | 90556571 | 2 | NUT | M3 | QW | ||
| 8 | 497283-00 | 1 | SCREW | QW | |||
| 9 | N901002 | 1 | BATTERY 18V - 2.0AH - 36WH | SFMCB202-XJ | SFMCF800D1K + D2K | QW | |
| 9 | N736913 | 1 | BATTERY 20V - 1.5AH - 27WH | Li-Ion - SFMCB201-XJ | SFMCF800C2K + C2S | QW | |
| 10 | N567649 | 1 | CHARGER SA | SFMCB12 - 2A | SFMCF800D1K + D2K | QW | |
| 10 | N567644 | 1 | CHARGER | 1A - SFMCB11-QW | SFMCF800C2K + C2S | QW | |
| 800 | N739020 | 1 | KITBOX | SFMCF800C2K | QW | ||
| 800 | N812806 | 1 | KITBOX | SFMCF800D1K + D2K | QW |
