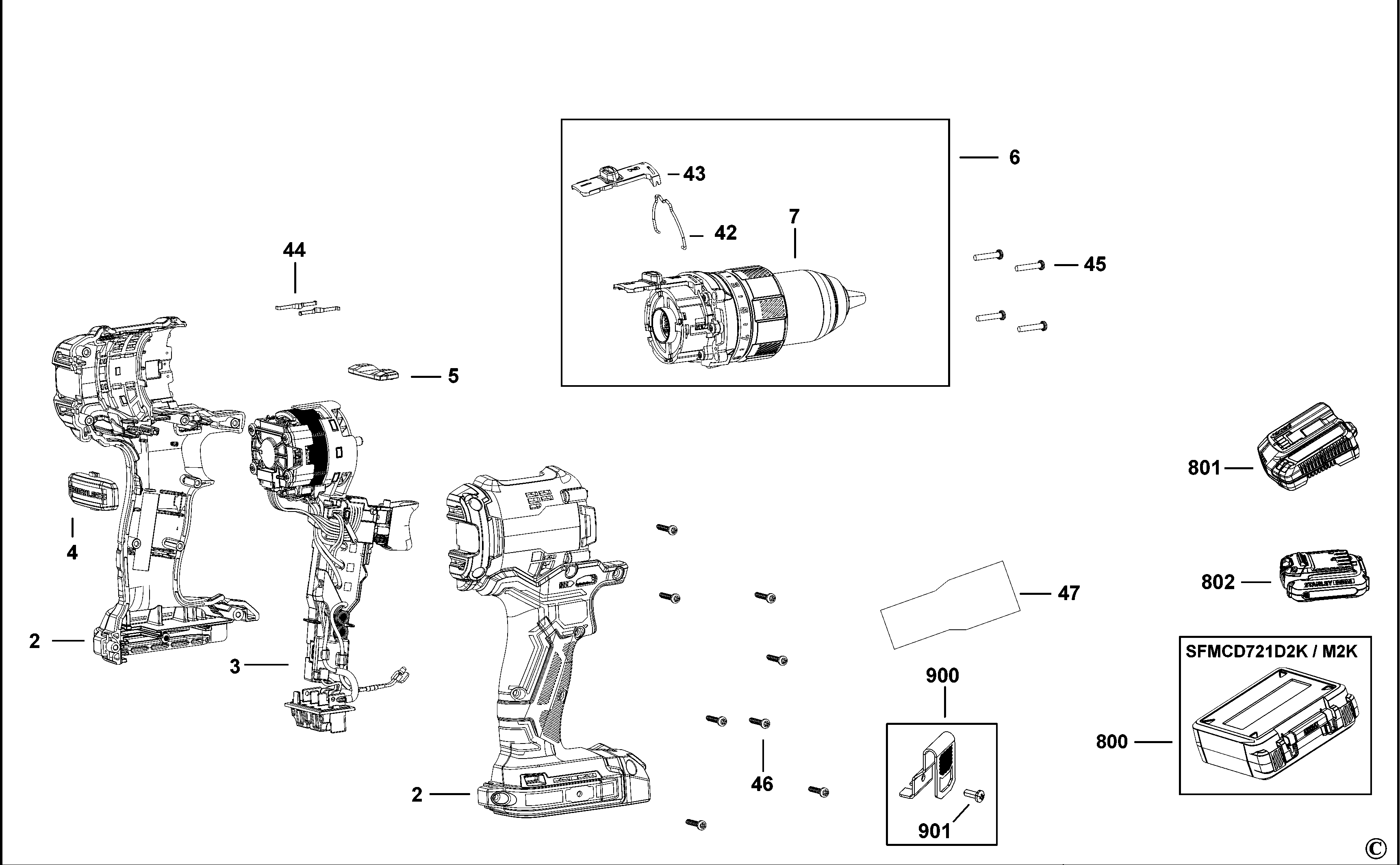

SFMCD721 HAMMER DRILL Type H1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | N688421 | 1 | CLAMSHELL PAIR | QW | |||
| 3 | N802088 | 1 | MOTOR SA | + SWITCH | QW | ||
| 4 | N538044 | 1 | COVER | QW | |||
| 5 | N535728 | 1 | ACTUATOR FWD/REV | QW | |||
| 6 | N803167 | 1 | TRANSMISSION SA | QW | |||
| 7 | N196034 | 1 | CHUCK KEYLESS | metal Chuck | QW | ||
| 42 | N035441 | 1 | WIRE STEEL | QW | |||
| 43 | N539154 | 1 | SELECTOR | QW | |||
| 44 | N014681 | 1 | LEAF SPRING | QW | |||
| 45 | N377990 | 4 | SCREW | QW | |||
| 46 | 682211-00 | 9 | SCREW | QW | |||
| 47 | N717493 | 1 | RATING PLATE | QW | |||
| 800 | N714271 | 1 | KITBOX | SFMCD721D2K / M2K | QW | ||
| 801 | N567649 | 1 | CHARGER SA | SFMCB12 - 2A | SFMCD721D2K | QW | |
| 801 | N567649 | 1 | CHARGER SA | SFMCB12 - 2A | SFMCD721M2K | QW | |
| 802 | N855084 | 1 | BATTERY 18V - 4.0AH - 72WH | SFMCD721M2K | QW | ||
| 802 | N901002 | 1 | BATTERY 18V - 2.0AH - 36WH | SFMCB202-XJ | SFMCD721D2K | QW | |
| 900 | N597001 | 1 | HOOK | INCL. SCREW | QW | ||
| 901 | N587357 | 1 | SCREW | QW |
