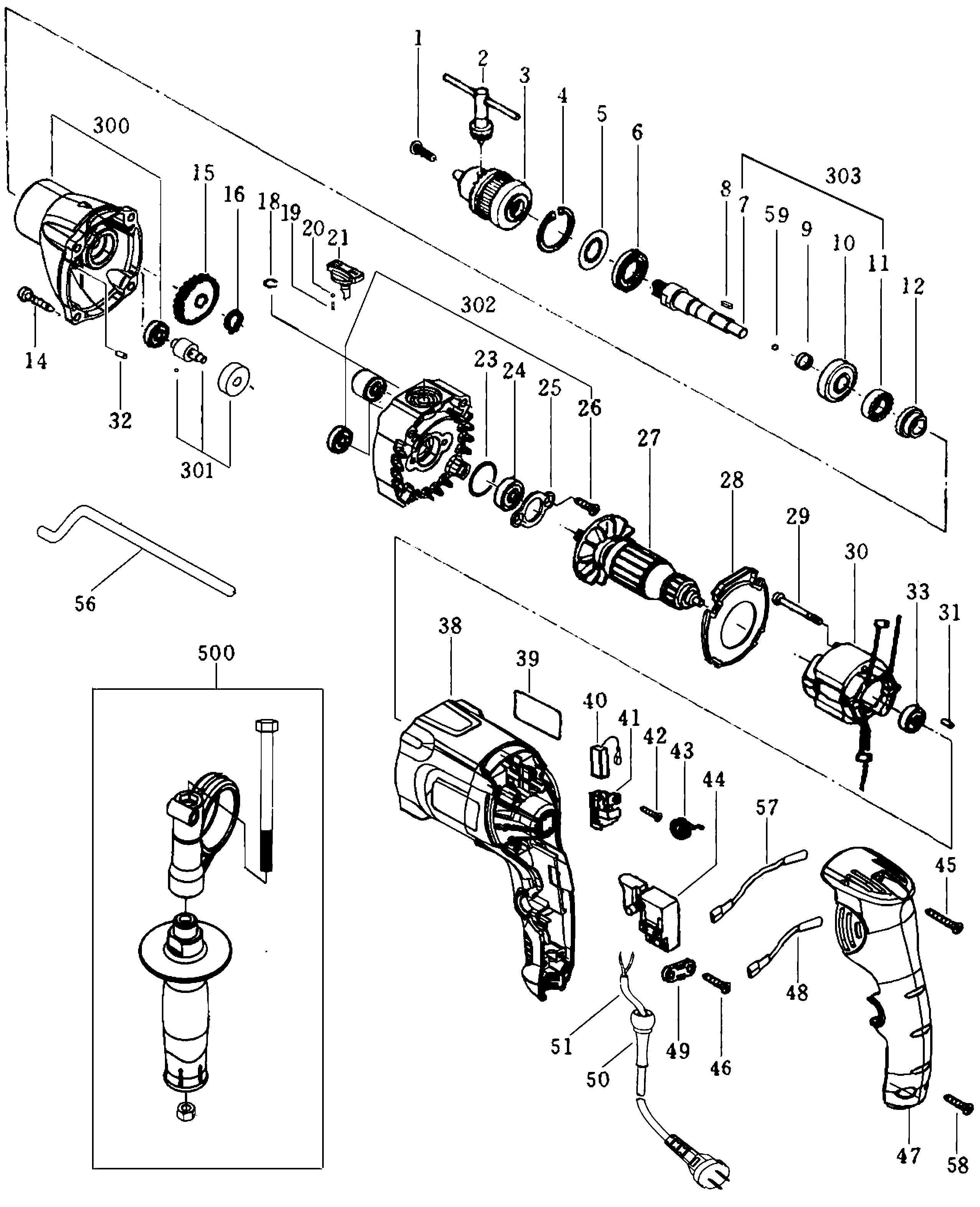

STDH8013 HAMMER DRILL Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	Markets
1	5140165-77	1	SCREW	B2
2	5140165-78	1	CHUCK KEY	B2
3	5140165-79	1	CHUCK	B2
4	5140164-89	2	CIRCLIP	B2
5	5140165-80	1	WASHER	B2
6	5140165-81	1	FELT WASHER	B2
7	5140165-82	1	SPINDLE	B2
8	5140165-83	1	FLAT KEY	B2
9	5140165-84	1	SPRING	B2
10	5140165-85	1	BEARING	B2
11	5140165-86	1	IMPACT BLOCK	B2
12	5140165-87	1	IMPACT BLOCK	B2
14	5140165-88	4	SELF TAPPING SCREW	B2
15	5140165-89	1	GEAR	B2
16	5140165-90	1	RETAINING RING	B2
18	5140165-91	1	C RING	B2
19	5140165-92	2	SPRING	B2
20	5140165-93	1	BALL	B2
21	5140165-94	1	BUTTON ACTUATOR	B2
23	5140165-95	1	O-RING	B2
24	5140165-96	1	BEARING	B2
25	5140165-97	1	RETAINER	B2
26	5140171-99	2	MACHINE SCREW	B2
27	5140166-00	1	ARMATURE	B2
28	5140166-01	1	AIR DEFLECTOR	B2
29	5140166-02	2	SELF TAPPING SCREW	B2
30	5140166-04	1	FIELD	B2
31	5140156-00	1	PIN	B2
32	5140166-05	1	PIN	B2
33	5140155-93	1	BEARING	B2
38	5140172-00	1	FIELD CASE	B2
39	5140166-09	1	NAME PLATE	B2
40	5140166-12	1	BRUSH	B2
41	5140166-13	1	BRUSH HOLDER	B2
42	5140165-18	4	SCREW	B2
43	5140166-14	1	BRUSH SPRING	B2
44	5140166-16	1	SWITCH	B2
45	5140166-17	1	SELF TAPPING SCREW	B2
46	5140155-81	2	SCREW	B2
47	5140166-18	1	HANDLE COVER	B2
48	5140166-20	1	LEADWIRE	B2
49	5140166-21	1	CORD CLAMP	B2
50	5140166-22	1	CORD PROTECTOR	B2
51	5140166-25	1	CORD	B2
56	5140166-26	1	DEPTH ROD	B2
57	5140166-28	1	LEADWIRE	B2
58	5140166-29	2	SELF TAPPING SCREW	B2
59	5140166-30	1	BALL	B2
300	5140166-31	1	GEARCASE ASSY	B2
301	5140166-32	1	SPINDLE & GEAR ASSY.	B2
302	5140166-33	1	PLATE ASSY.	B2
303	5140166-34	1	SPINDLE ASSY.	B2
500	5140166-35	1	SIDE HANDLE	B2
