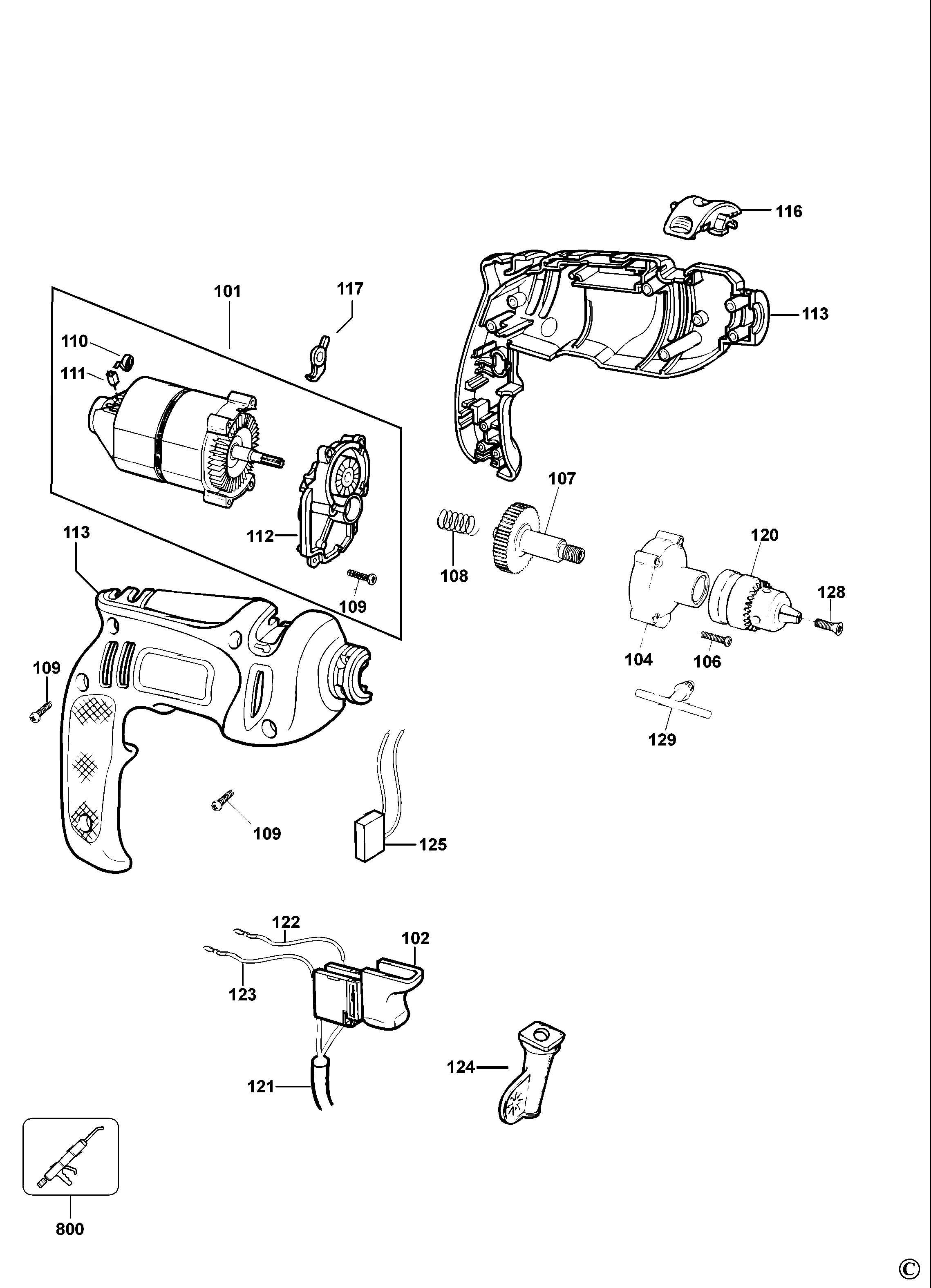

KR500 DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 576375-07 | 1 | MOTOR SA | CH | |||
| 102 | 375157-01 | 1 | SWITCH | CH | |||
| 104 | 574298-00 | 1 | GEARCASE SA | CH | |||
| 106 | 794097 | 4 | SCREW | CH | |||
| 107 | 572289-00 | 1 | SPINDLE | CH | |||
| 108 | 821986 | 1 | SPRING | CH | |||
| 109 | 747329 | 11 | SCREW | CH | |||
| 110 | 747634 | 2 | SPRING BRUSH | CH | |||
| 111 | 832998-06 | 2 | BRUSH | 230V | CH | ||
| 112 | 376410-00 | 1 | BEARING HOUSING | CH | |||
| 113 | 375147-03 | 1 | CLAMSHELL | CH | |||
| 116 | 375164-02 | 1 | ACTUATOR | CH | |||
| 117 | 375156-00 | 1 | THRUST PLATE | CH | |||
| 120 | 330033-15 | 1 | CHUCK 10MM | CH | |||
| 121 | 330080-05 | 1 | CORDSET | CH | |||
| 122 | 377469-00 | 1 | LEAD | 230V | CH | ||
| 123 | 377468-00 | 1 | LEAD RED | 230V | CH | ||
| 124 | 770236 | 1 | PROTECTOR | CH | |||
| 125 | 807285-08 | 1 | CAPACITOR | CH | |||
| 128 | 805434 | 1 | SCREW.SPECIAL | CH | |||
| 129 | 330034-07 | 1 | CHUCK KEY | CH | |||
| 800 | 870889-02 | 1 | GREASE | CH |
