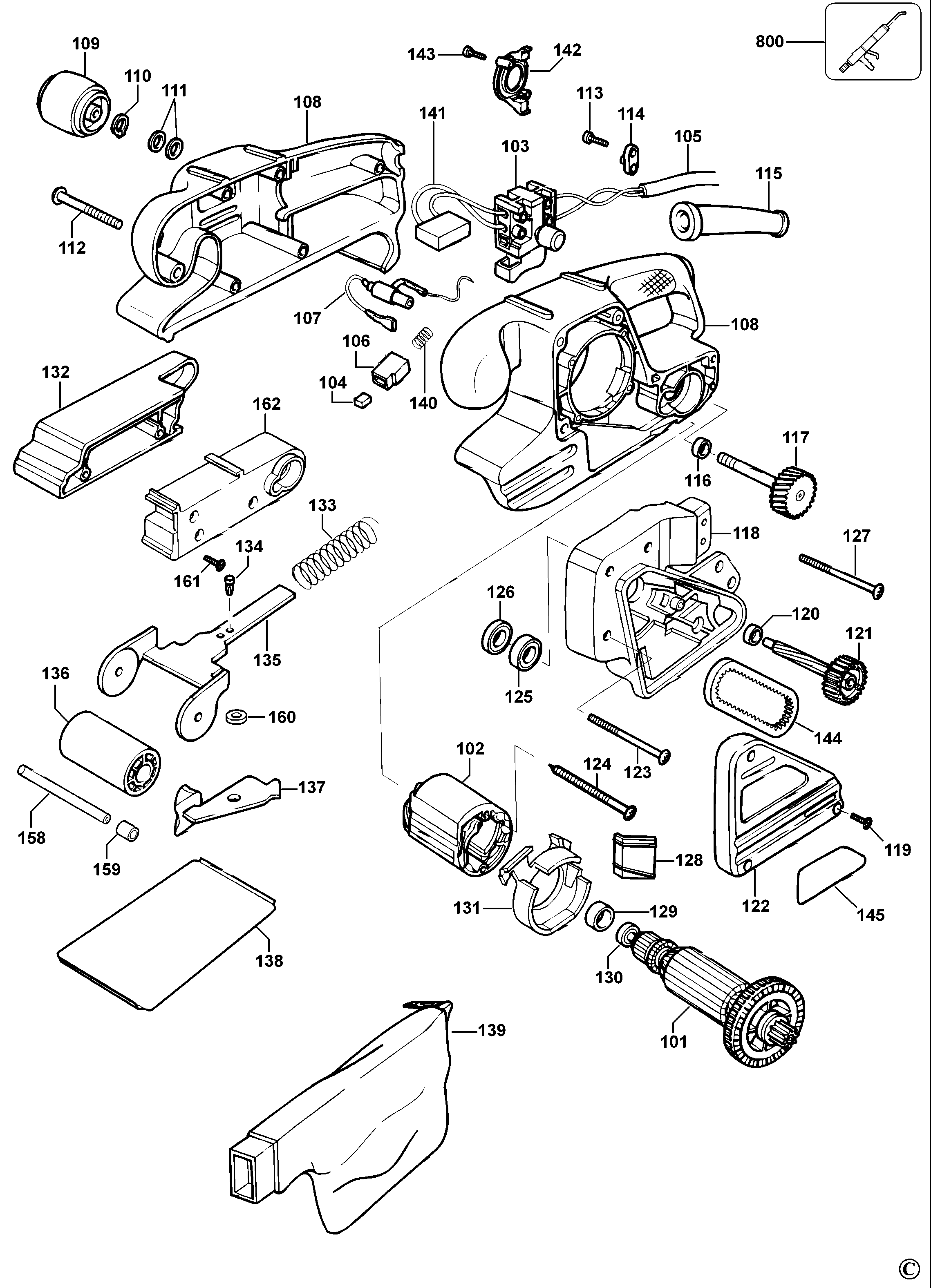

KA85 BELT SANDER Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 597707-00 | 1 | ARMATURE SA | CH | |||
| 102 | 597708-00 | 1 | FIELD | CH | |||
| 103 | 569137-00 | 1 | SWITCH | CH | |||
| 104 | 568274-00 | 2 | BRUSH | CH | |||
| 105 | 568275-00 | 1 | CORDSET | CH | |||
| 106 | 568278-00 | 2 | BRUSH HOLDER | CH | |||
| 107 | 568279-00 | 2 | CHOKE SA | CH | |||
| 108 | 597709-00 | 1 | CLAMSHELL SET | CH | |||
| 109 | 568658-00 | 1 | ROLLER SA | CH | |||
| 110 | 568282-00 | 1 | CIRCLIP | CH | |||
| 111 | 568283-00 | 3 | WASHER | CH | |||
| 112 | 568284-00 | 6 | SCREW | CH | |||
| 113 | 568285-00 | 2 | SCREW | CH | |||
| 114 | 597711-00 | 1 | CORD CLAMP | CH | |||
| 115 | 568287-00 | 1 | CORD PROTECTOR | CH | |||
| 116 | 568406-00 | 1 | BEARING | CH | |||
| 117 | 568289-00 | 1 | SPINDLE & GEAR | CH | |||
| 118 | 597712-00 | 1 | CLAMSHELL SET | CH | |||
| 119 | 568291-00 | 5 | SCREW | CH | |||
| 120 | 568292-00 | 1 | BEARING | CH | |||
| 121 | 568293-00 | 1 | SPINDLE & GEAR | CH | |||
| 122 | 597713-00 | 1 | COVER BELT | CH | |||
| 123 | 568295-00 | 3 | SCREW | CH | |||
| 124 | 568296-00 | 2 | SCREW | CH | |||
| 125 | 568297-00 | 1 | BEARING | 608 - 8 x 22 x 7 | CH | ||
| 126 | 568298-00 | 1 | SLEEVE | CH | |||
| 127 | 568299-00 | 2 | SCREW | CH | |||
| 128 | 597714-00 | 1 | COVER | CH | |||
| 129 | 568301-00 | 1 | SLEEVE | CH | |||
| 130 | 568302-00 | 1 | BEARING | CH | |||
| 131 | 597718-00 | 1 | COVER | CH | |||
| 132 | 597719-00 | 1 | COVER | CH | |||
| 133 | 568305-00 | 1 | SPRING | CH | |||
| 134 | 568306-00 | 1 | RIVET | CH | |||
| 135 | 568307-00 | 1 | FORK | CH | |||
| 136 | 596553-00 | 1 | ROLLER | CH | |||
| 137 | 569142-00 | 1 | LEVER | CH | |||
| 138 | 568310-00 | 1 | PLATE | CH | |||
| 139 | 568311-00 | 1 | DUST BAG SA | CH | |||
| 140 | 568312-00 | 2 | SPRING | CH | |||
| 141 | 568602-00 | 1 | CAPACITOR | CH | |||
| 142 | 597715-00 | 2 | BRUSH COVER | CH | |||
| 143 | 568315-00 | 2 | SCREW | CH | |||
| 144 | 568316-00 | 1 | BELT | CH | |||
| 145 | 597717-00 | 1 | LABEL | CH | |||
| 158 | 568405-00 | 1 | SHAFT | CH | |||
| 159 | 568406-00 | 2 | BEARING | CH | |||
| 160 | 568407-00 | 1 | WASHER | CH | |||
| 161 | 568408-00 | 3 | SCREW | CH | |||
| 162 | 568409-00 | 1 | SUPPORT BRACKET | CH | |||
| 800 | 870889-02 | 1 | GREASE | CH |
