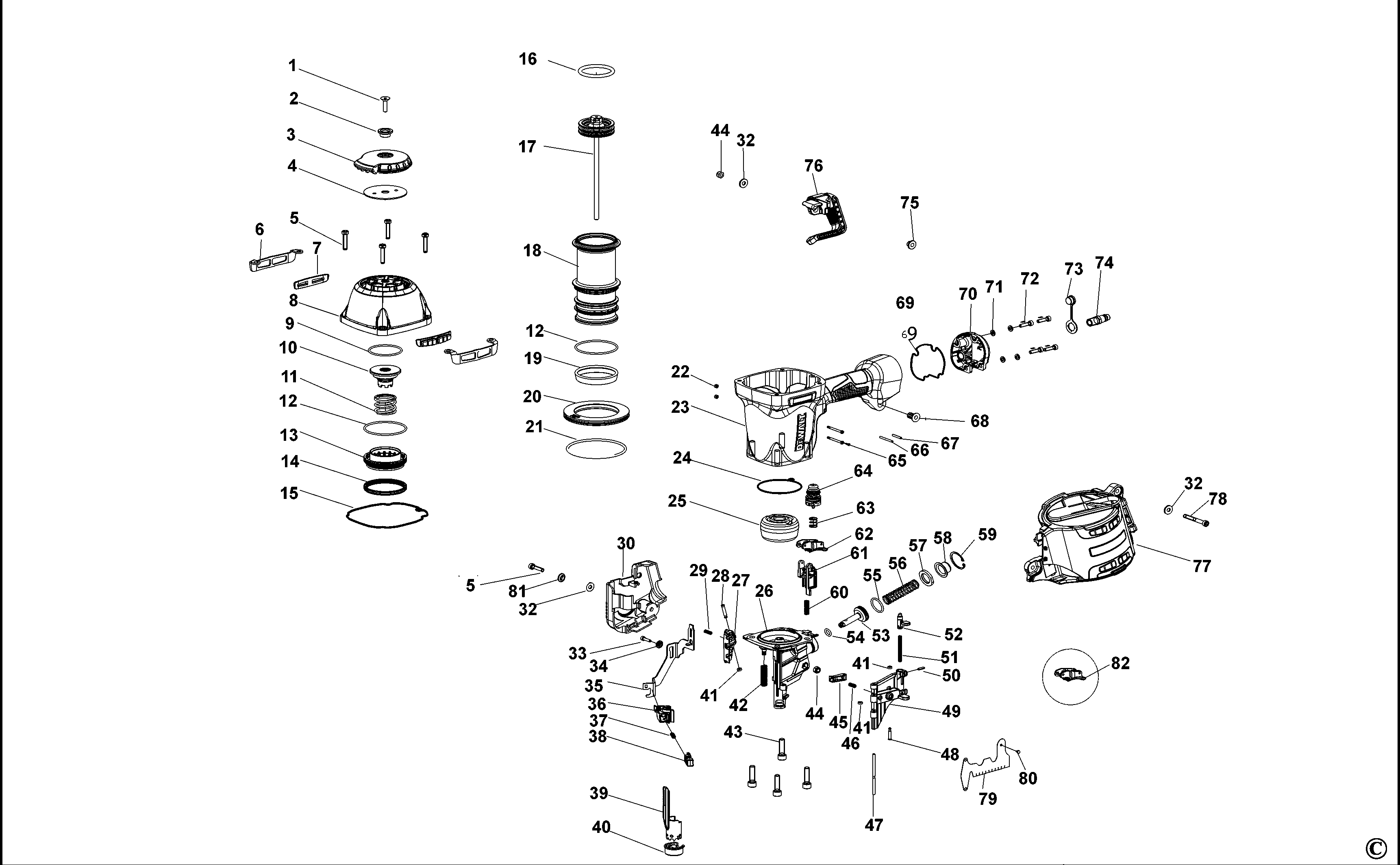

DPN90C-1 NAILER Type 1 | Drawings
Documents
Lista delov
Poglejte v spustni meni, ker imajo lahko nekateri izdelki več risb
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | MSF6100-25 | 1 | SCREW | XJ | |||
| 2 | 163859 | 1 | BUSHING | XJ | |||
| 3 | 163818 | 1 | EXHAUST | XJ | |||
| 4 | 163830 | 1 | PLATE | XJ | |||
| 5 | MSC6100-30 | 1 | SCREW | M6 x 1.00 x 20 | XJ | ||
| 6 | 163827 | 1 | PLATE | XJ | |||
| 7 | 149819 | 1 | GUIDE | XJ | |||
| 8 | 9R207477 | 1 | CAP | XJ | |||
| 9 | 105814 | 1 | O RING | XJ | |||
| 10 | 163820 | 1 | BUMPER | XJ | |||
| 11 | 163844 | 1 | SPRING | XJ | |||
| 12 | 163822 | 1 | O RING | XJ | |||
| 13 | 163821 | 1 | VALVE BODY | XJ | |||
| 14 | 163823 | 1 | SEAL | XJ | |||
| 15 | 163845 | 1 | SEAL | XJ | |||
| 16 | 851606-S | 1 | O RING | XJ | |||
| 17 | 163816 | 1 | PISTON SA | XJ | |||
| 18 | 163824 | 1 | SLEEVE | XJ | |||
| 19 | 175520 | 1 | SEAL | XJ | |||
| 20 | 163855 | 1 | RING | XJ | |||
| 21 | 108718 | 1 | O RING | 3.48x0.139 | XJ | ||
| 22 | MHE3050-100 | 1 | NUT | XJ | |||
| 23 | 9R207410 | 1 | FRAME | XJ | |||
| 24 | 163884 | 1 | SEAL | XJ | |||
| 25 | 107231 | 1 | BUMPER | XJ | |||
| 26 | 166763 | 1 | NOSE SA | XJ | |||
| 27 | 166773 | 1 | PAWL | XJ | |||
| 28 | 166787 | 1 | PIN | XJ | |||
| 29 | 166774 | 1 | SPRING | XJ | |||
| 30 | 166766 | 1 | COVER | XJ | |||
| 32 | MPW6.2 | 1 | WASHER | XJ | |||
| 33 | MSC4070-16 | 1 | SCREW | XJ | |||
| 34 | 163876 | 1 | BUSHING | XJ | |||
| 35 | 163908 | 1 | ARM | XJ | |||
| 36 | 163906 | 1 | HOUSING | XJ | |||
| 37 | 115230 | 1 | SPRING | XJ | |||
| 38 | 188703 | 1 | CASTING | XJ | |||
| 39 | 163907 | 1 | ARM | XJ | |||
| 40 | 166765 | 1 | FOOT | XJ | |||
| 41 | 854004 | 1 | WASHER | XJ | |||
| 42 | 116970 | 1 | SPRING | XJ | |||
| 43 | MSC8125-30 | 1 | SCREW | XJ | |||
| 44 | MHE6100-100 | 1 | NUT | M6x1 | XJ | ||
| 45 | N70149 | 1 | PAWL | XJ | |||
| 46 | 854011 | 1 | SPRING COMPRESSION | XJ | |||
| 47 | N80125 | 1 | PIN | XJ | |||
| 48 | N70140 | 1 | PIN | XJ | |||
| 49 | 166760 | 1 | DOOR | XJ | |||
| 50 | MPG030012 | 1 | PIN | M4x12 | XJ | ||
| 51 | 854013 | 1 | SPRING COMPRESSION | XJ | |||
| 52 | N70150 | 1 | LATCH | XJ | |||
| 53 | 88999 | 1 | O RING | XJ | |||
| 54 | 163894 | 1 | PISTON | XJ | |||
| 55 | 87112 | 1 | O RING | XJ | |||
| 56 | 163930 | 1 | SPRING | XJ | |||
| 57 | 163897 | 1 | STOP | XJ | |||
| 58 | 163895 | 1 | COLLAR | XJ | |||
| 59 | 163896 | 1 | RETAINER | XJ | |||
| 60 | 166781 | 1 | SPRING | XJ | |||
| 61 | 163883 | 1 | GUIDE | XJ | |||
| 62 | 166759 | 1 | TRIGGER | XJ | |||
| 63 | 100387 | 1 | SPRING | XJ | |||
| 64 | 102039 | 1 | TRIGGER | XJ | |||
| 65 | 108562 | 1 | SCREW | XJ | |||
| 66 | 100298 | 1 | PIN | XJ | |||
| 67 | MPP030020 | 1 | PIN | M3x20mm | XJ | ||
| 68 | 123859 | 1 | BUSHING | XJ | |||
| 69 | 163856 | 1 | SEAL | XJ | |||
| 70 | 163843 | 1 | END CAP | XJ | |||
| 71 | T50118 | 1 | WASHER | XJ | |||
| 72 | MSC5080-20 | 1 | SCREW | M5x20mm | XJ | ||
| 73 | 9R195380 | 1 | COVER | 1/4NPT | XJ | ||
| 74 | 159977 | 1 | ADAPTOR | XJ | |||
| 75 | 171342 | 1 | WASHER | XJ | |||
| 76 | 171354 | 1 | HOOK | XJ | |||
| 77 | 9R207465 | 1 | CANISTER | XJ | |||
| 78 | MSC6100-50 | 1 | BOLT | XJ | |||
| 79 | 9R217660 | 1 | SHIELD | XJ | |||
| 80 | 9R204227 | 1 | PLUG | XJ | |||
| 81 | 9R217711 | 1 | COLLAR | XJ | |||
| 82 | 166759 | 1 | TRIGGER | SEQ. | XJ |
