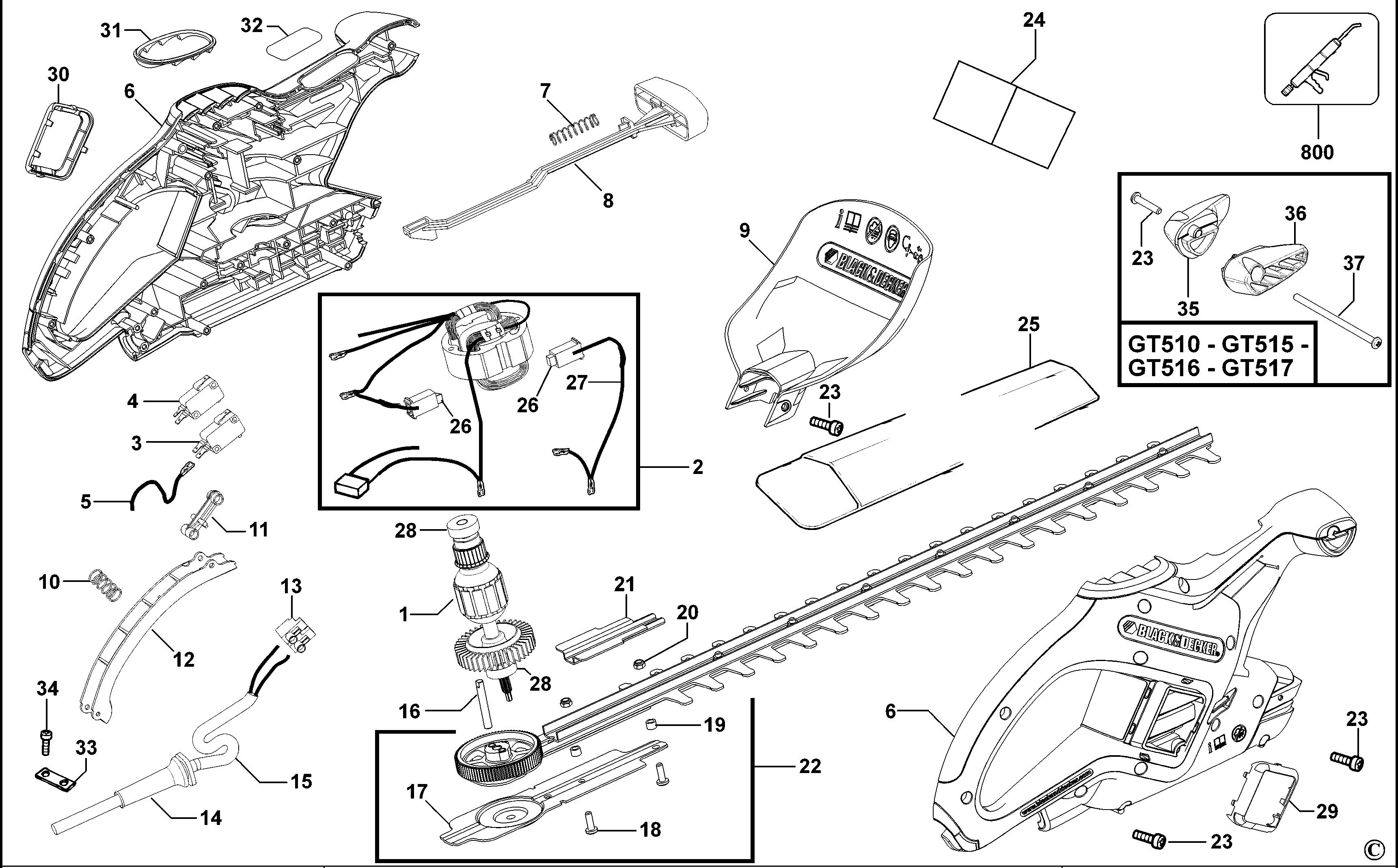

GT516 HEDGETRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 489708-01 | 1 | ARMATURE 230V | Inc Item 28 x 2 | GB |  |
|
| 2 | 494468-01 | 1 | FIELD SA 230V | Inc items 26 - 27 | GB | |
|
| 3 | 479253-00 | 1 | SWITCH | Red plunger | GB | |
|
| 4 | 479254-00 | 1 | SWITCH | Black plunger | GB | |
|
| 5 | 479466-01 | 1 | LEAD BROWN | GB | |
||
| 6 | 489897-00 | 1 | CLAMSHELL | Green | GB | |
|
| 7 | 479871-00 | 1 | SPRING | GB | |
||
| 8 | 479370-00 | 1 | ACTUATOR | GB | |
||
| 9 | 489983-00 | 1 | GUARD | GB | |
||
| 10 | 806128 | 1 | SPRING | GB | |
||
| 11 | 477742-00 | 1 | ACTUATOR | GB | |
||
| 12 | 478984-00 | 1 | TRIGGER | Orange | GB | |
|
| 13 | 373883 | 1 | TERMINAL BLOCK | GB | |
||
| 14 | 770235 | 1 | PROTECTOR | GB |  |
||
| 15 | 808240-03 | 1 | CORDSET | 12.3M | GB | |
|
| 16 | 490403-00 | 1 | AXLE | GB | |
||
| 17 | 489948-01 | 1 | SUPPORT PLATE | GB | |
||
| 18 | 371954-01 | 2 | BOLT | GB | |
||
| 19 | 478040-00 | 2 | SPACER | GB | |
||
| 20 | 798755 | 2 | NUT M5 | GB | |||
| 21 | 490615-01 | 1 | PLATE | GB | |
||
| 22 | 490600-00 | 1 | BLADE & GEAR SA | 61CM | GB | |
|
| 23 | 747329 | 16 | SCREW | GB | |
||
| 24 | 491985-07 | 1 | RATING PLATE | GB | |
||
| 25 | 492741-03 | 1 | SHEATH | GB | |
||
| 26 | 496510-00 | 1 | BRUSH PAIR 230V | GB | |
||
| 27 | 479466-04 | 1 | CHOKE LEAD SA | GB | |
||
| 28 | 574853-08 | 2 | BEARING | GB | |
||
| 29 | 489954-00 | 1 | FRAME RH | GB | |
||
| 30 | 489955-00 | 1 | FRAME LH | GB | |
||
| 31 | 478185-00 | 1 | COVER-TOP | GB | |
||
| 32 | 491998-00 | 1 | BRAND LABEL | GB | |
||
| 33 | 478367-00 | 1 | CORD CLAMP | GB | |
||
| 34 | 370748 | 2 | SCREW | GB | |
||
| 35 | 490698-00 | 1 | END CAP | Green | GB | |
|
| 36 | 490699-00 | 1 | COVER | GB | |
||
| 37 | 490861-00 | 1 | SCREW | No 6 x 63mm | GB | |
|
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | Use 3 grams | GB | |
