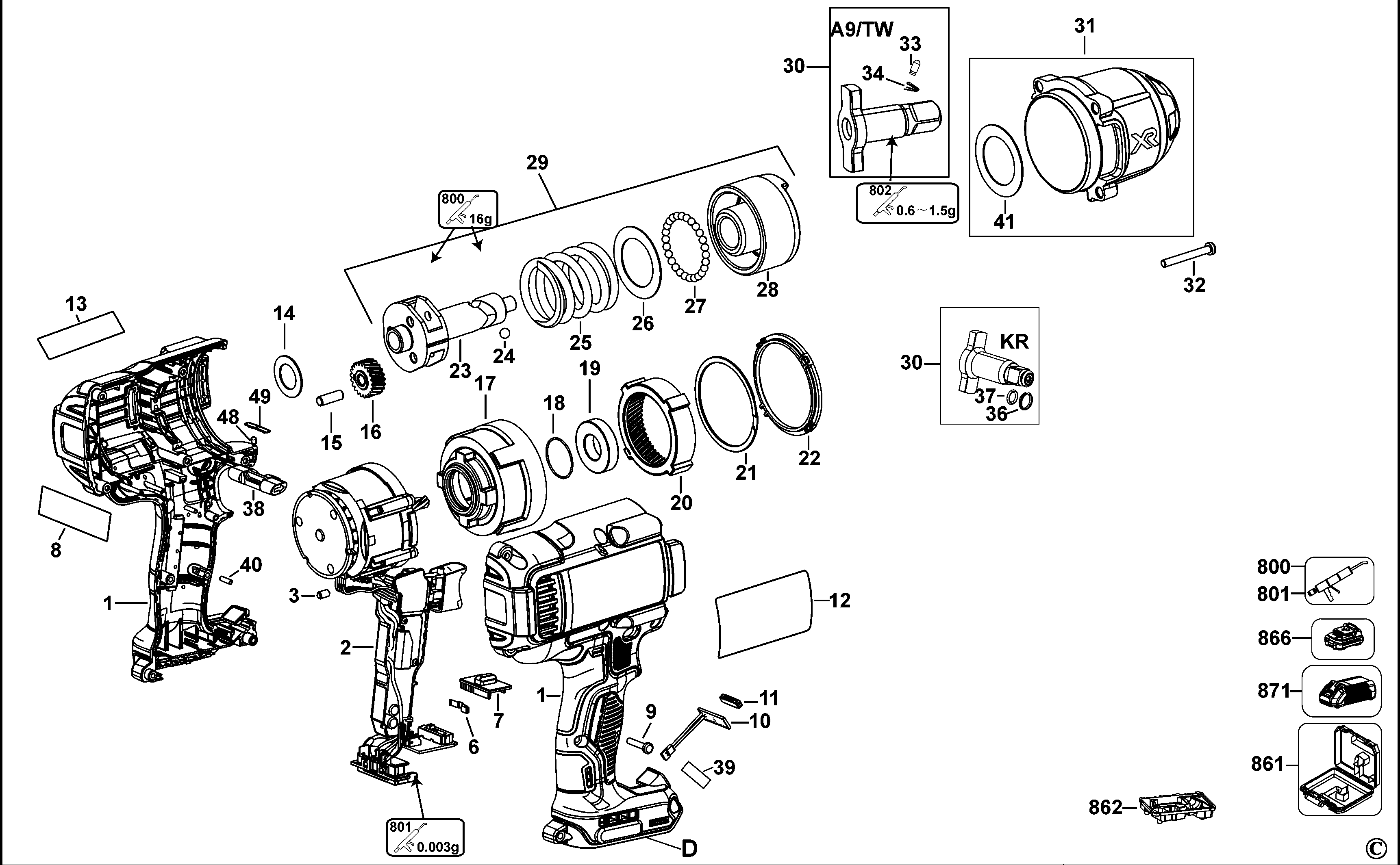

DCF899 IMPACT WRENCH Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N371919 | 1 | CLAMSHELL SET | EURO | KR | ||
| 2 | N578553 | 1 | MOTOR & SWITCH SA | KR | |||
| 3 | N186764 | 4 | RUBBER PAD | KR | |||
| 6 | N392855 | 1 | DETENT | KR | |||
| 7 | N393603 | 1 | SELECTOR | KR | |||
| 8 | N404526 | 1 | LABEL | BRUSHLESS | KR | ||
| 9 | 330019-04 | 9 | SCREW | KR | |||
| 10 | N231799 | 1 | LED LIGHT | KR | |||
| 11 | N394333 | 1 | LENS | KR | |||
| 12 | N871442 | 1 | RATING LABEL | DCF899H | KR | ||
| 13 | N238000 | 1 | LABEL | 20V MAX - US | KR | ||
| 14 | N114027 | 1 | WASHER | ID 17.14 OD 28 x 1.0 | KR | ||
| 15 | N194994 | 3 | PIN | KR | |||
| 16 | N389396 | 3 | GEAR | HELICAL | KR | ||
| 17 | N363283 | 1 | GEARCASE | KR | |||
| 18 | N411414 | 1 | O RING | 25.12 x 1.78 | KR | ||
| 19 | N158641 | 1 | BEARING | 17.0 x 35.0 x 8.0 | KR | ||
| 20 | N389398 | 1 | GEAR | HELICAL | KR | ||
| 21 | N389400 | 1 | RING | KR | |||
| 22 | N410641 | 1 | SEAL | KR | |||
| 23 | N456898 | 1 | CARRIER SA | KR | |||
| 24 | 618844-00 | 2 | BALL STEEL | 1/4 INCH | KR | ||
| 25 | N377938 | 1 | SPRING | KR | |||
| 26 | N377515 | 1 | WASHER THRUST | KR | |||
| 27 | 000475-00 | 27 | BALL STEEL | KR | |||
| 28 | N684018 | 1 | IMPACTOR | MAC | KR | ||
| 29 | N882712 | 1 | IMPACTOR | KR | |||
| 30 | N882713 | 1 | ANVIL ASSEMBLY | DCF899H | KR | ||
| 31 | N816251 | 1 | NOSE SA | KR | |||
| 32 | 330019-16 | 4 | SCREW | KR | |||
| 36 | 086947-00 | 1 | CIRCLIP | KR | |||
| 37 | 050056-00 | 1 | O RING | KR | |||
| 38 | N137055 | 1 | ACTUATOR FWD/REV | KR | |||
| 39 | N408083 | 1 | LABEL | KR | |||
| 40 | N071836 | 1 | ROLL PIN | KR | |||
| 41 | N464079 | 1 | WASHER | KR | |||
| 48 | N403227 | 1 | DETENT | KR | |||
| 49 | N419514 | 1 | DETENT | FWD/REV | KR | ||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | 0.016g | KR | |
| 801 | N108694 | 1 | GREASE | NYE Nyogel 760G 30ml | battery terminals | KR | |
| 802 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | 0.6~1.5g | KR | |
| 861 | N279261 | 1 | KITBOX | KR | |||
| 862 | N414769 | 1 | INSERT | KR | |||
| 866 | DCB184-KR | 2 | BATTERY 18V - 5.0AH - 90WH | KR | |||
| 871 | DCB115-KR | 1 | CHARGER 18V | KR |
