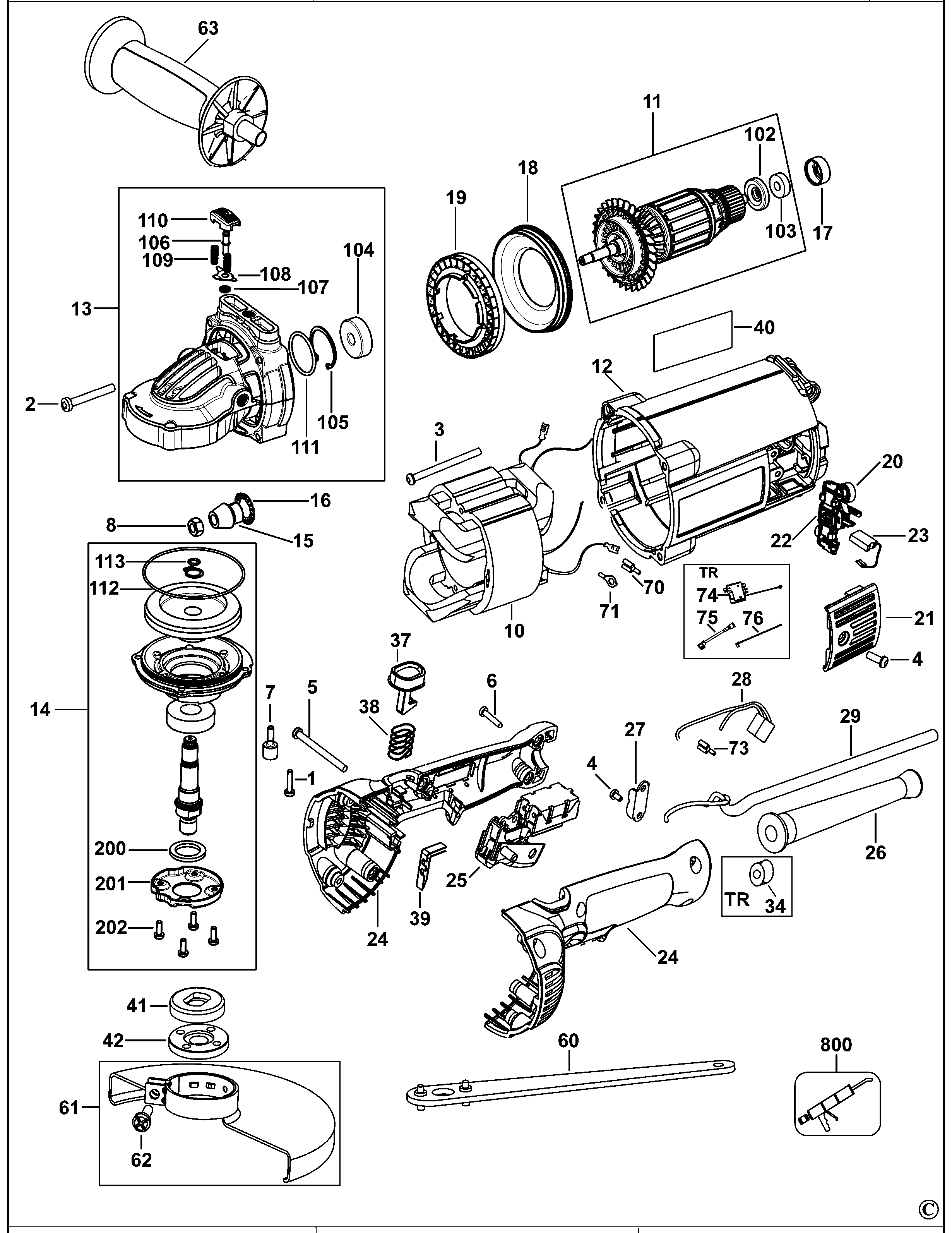

DWE496 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-07 | 4 | SCREW | KS | |||
| 2 | 330019-26 | 4 | SCREW | KS | |||
| 3 | 330019-19 | 2 | SCREW | KS | |||
| 4 | 330019-11 | 4 | SCREW | M4.55x13 T20 | KS | ||
| 5 | 330019-50 | 3 | SCREW | M4.55x50 PLASTIC THD FMG | KS | ||
| 6 | 330019-32 | 4 | SCREW | KS | |||
| 7 | N033051 | 1 | SCREW | KS | |||
| 8 | 330015-03 | 1 | NUT | M8x1.25 | KS | ||
| 11 | N565218 | 1 | ARMATURE 230V | KS | |||
| 12 | N513668 | 1 | FIELDCASE | KS | |||
| 13 | N252619 | 1 | GEARCASE SA | SPL LOCK PKDN397472 | KS | ||
| 14 | N203624 | 1 | GEARCASE COVER SA | 6K, M14 PKGD N116522 | KS | ||
| 15 | N099841 | 1 | PINION | 6K | KS | ||
| 16 | N132602 | 1 | WASHER SPECIAL | PINION | KS | ||
| 17 | 609970-00 | 1 | SLEEVE INSULATING | KS | |||
| 18 | N094853 | 1 | BAFFLE FAN | KS | |||
| 19 | N094854 | 1 | FAN | FAN | KS | ||
| 20 | 645650-00 | 2 | BRUSH SPRING | KS | |||
| 21 | 394387-01 | 2 | BRUSH COVER | KS | |||
| 22 | N410308 | 2 | BRUSH HOLDER SA | KS | |||
| 23 | N404514 | 2 | BRUSH PAIR | 230V, SET OF 2 | KS | ||
| 24 | 636499-00 | 1 | HANDLE & COVER | KS | |||
| 25 | N015071 | 1 | SWITCH SA | KS | |||
| 26 | N219433 | 1 | CORD PROTECTOR | KS | |||
| 27 | 604119-00 | 1 | CORD CLAMP | KS | |||
| 28 | 632218-00 | 1 | CAPACITOR | KS | |||
| 29 | 562226-65 | 1 | CORDSET (EURO) | KS | |||
| 37 | 636503-00 | 1 | BUTTON LOCK-OFF | KS | |||
| 38 | 636502-00 | 1 | SPRING | KS | |||
| 39 | N391190 | 1 | COVER | KS | |||
| 41 | 403150-01 | 1 | INNER FLANGE | KS | |||
| 42 | 401678-05 | 1 | OUTER FLANGE | KS | |||
| 60 | 635261-00 | 1 | WRENCH PIN | KS | |||
| 61 | N419366 | 1 | GUARD SA | KS | |||
| 62 | N082712 | 1 | SCREW | KS | |||
| 63 | 651858-01 | 1 | SIDE HANDLE | KS | |||
| 71 | 610057-00 | 1 | TERMINAL | KS | |||
| 102 | 393238-00 | 1 | SHIELD | KS | |||
| 103 | N110359 | 1 | BEARING | KS | |||
| 104 | N389509 | 1 | BEARING | KS | |||
| 105 | N173539 | 1 | RETAINER | KS | |||
| 106 | N173538 | 1 | LOCK PIN | SPINDLE | KS | ||
| 107 | N173540 | 1 | O RING | KS | |||
| 108 | N108422 | 1 | PLATE | KS | |||
| 109 | N110675 | 2 | SPRING | KS | |||
| 110 | N110236 | 1 | BUTTON | KS | |||
| 111 | N226986 | 1 | O RING | KS | |||
| 112 | 397031-00 | 1 | O RING | KS | |||
| 113 | 660143-00 | 1 | O RING | KS | |||
| 200 | N103732 | 1 | FELT | KS | |||
| 201 | N095989 | 1 | CAP | KS | |||
| 202 | N247325 | 4 | SCREW | KS | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | KS |
