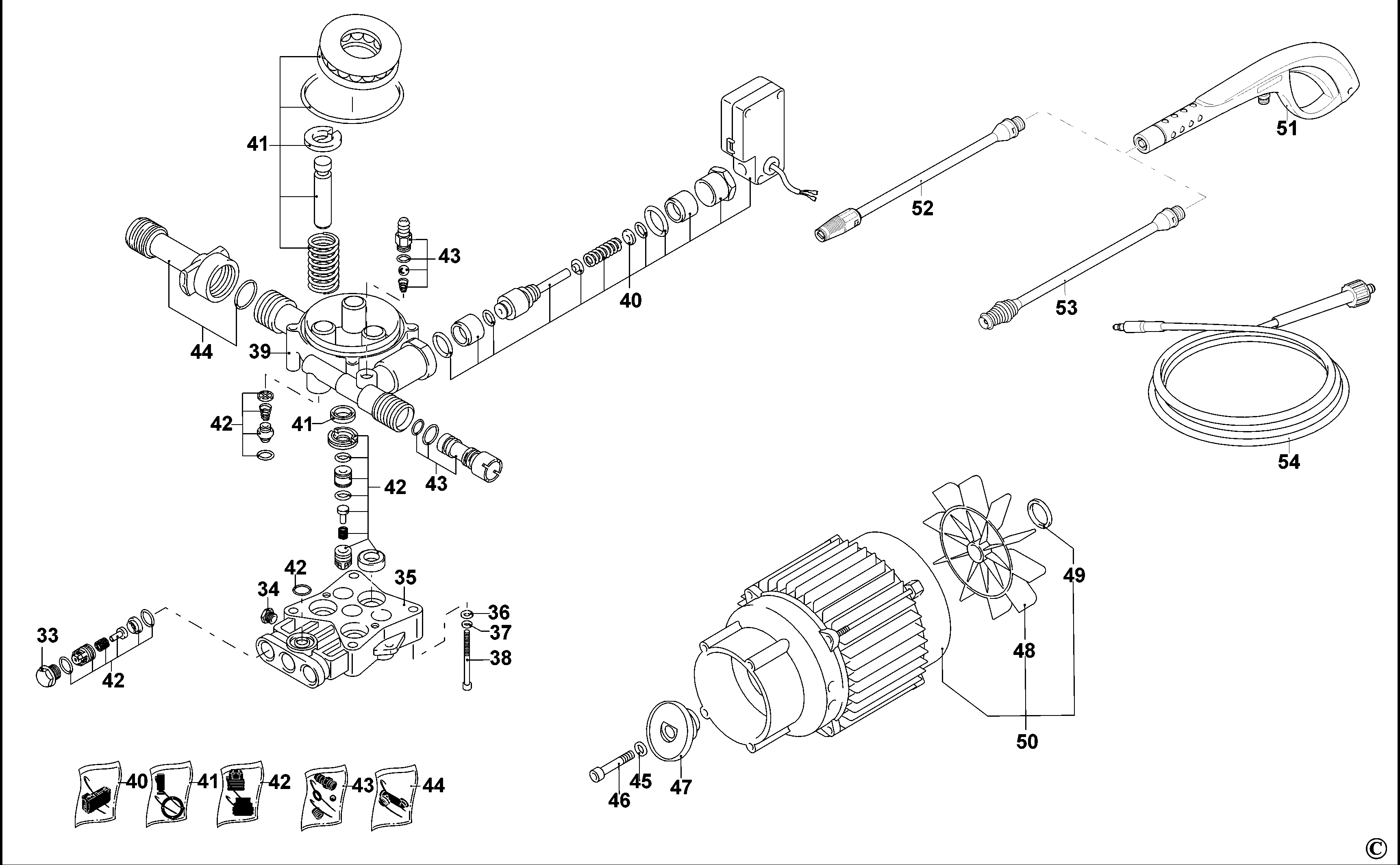

PW2200SPB PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004512-29 | 1 | KNOB | B9 |  |
||
| 2 | 1004512-30 | 1 | GUARD | B9 | |
||
| 3 | 1004700-77 | 1 | COUPLING SA | B9 | |
||
| 4 | 1004512-31 | 1 | GUARD | B9 | |
||
| 5 | 1004512-32 | 1 | GUARD | B9 | |
||
| 6 | 1004512-33 | 1 | KNOB | B9 | |
||
| 7 | 1004512-34 | 1 | HOUSING FRONT | B9 | |
||
| 8 | 1004512-35 | 1 | GUARD | B9 | |
||
| 9 | 1004512-36 | 1 | BOX | B9 | |
||
| 10 | 1004512-37 | 1 | REGULATOR | B9 | |
||
| 11 | 1004701-00 | 1 | SUPPORT | B9 | |
||
| 12 | 1004701-01 | 1 | PUMP SA | B9 | |
||
| 13 | 1004512-40 | 1 | CARRIER | B9 | |
||
| 14 | 1004512-41 | 1 | CONVEYOR | B9 | |
||
| 15 | 1004512-42 | 1 | HOSE SA | B9 | |
||
| 16 | 1004512-43 | 1 | JOINT | B9 | |
||
| 17 | 1004512-44 | 1 | PRESSURE GAUGE | B9 | |
||
| 18 | 1004512-45 | 2 | FORK | B9 | |
||
| 19 | 1004512-46 | 2 | HOSE SA | B9 | |
||
| 20 | 1004512-47 | 2 | PLATE | B9 | |
||
| 21 | 1004455-51 | 1 | LEVER | B9 | |
||
| 22 | 1004512-48 | 1 | KNOB | B9 | |
||
| 23 | 1004512-49 | 1 | KNOB | B9 | |
||
| 24 | 1004512-50 | 1 | BASE | B9 | |
||
| 25 | 1004512-51 | 1 | TANK | B9 | |
||
| 26 | 1004455-38 | 1 | CARRIER | B9 | |
||
| 27 | 1004455-07 | 1 | GLAND | B9 | |
||
| 28 | 1004512-52 | 1 | CABLE | B9 | |
||
| 29 | 1004512-54 | 2 | WHEEL | B9 | |
||
| 30 | 1004512-55 | 1 | CAPACITOR | B9 |  |
||
| 31 | 1004512-56 | 1 | CARRIER | B9 | |
||
| 32 | 1004512-57 | 1 | SCREW | B9 | |
||
| 33 | 1004512-90 | 3 | NUT | B9 | |
||
| 34 | 1004701-03 | 1 | SCREW | B9 | |
||
| 35 | 1004512-89 | 1 | CYLINDER HEAD | B9 | |
||
| 36 | 1004512-94 | 4 | WASHER | B9 | |
||
| 37 | 1004512-95 | 4 | WASHER | B9 | |
||
| 38 | 1004512-96 | 4 | SCREW | B9 | |
||
| 39 | 1004701-04 | 1 | PUMP SA | B9 | |
||
| 40 | 1004701-05 | 1 | KIT | TSS | B9 | |
|
| 41 | 1004701-06 | 1 | PISTONS & SEALS KIT | B9 | |
||
| 42 | 1004455-19 | 1 | SERVICE KIT | B9 | |
||
| 43 | 1004701-07 | 1 | SUCTION GROUP | B9 | |
||
| 44 | 1004701-08 | 1 | SUCTION GROUP | B9 | |
||
| 45 | 1004512-95 | 1 | WASHER | B9 | |
||
| 46 | 1004701-09 | 1 | SCREW | B9 | |
||
| 47 | 1004701-10 | 1 | PLATE | B9 | |
||
| 48 | 1004553-07 | 1 | FAN | B9 | |
||
| 49 | 1004553-08 | 1 | RING | B9 | |
||
| 50 | 1004701-11 | 1 | MOTOR | B9 | |
||
| 51 | 1004512-59 | 1 | ADJUSTER HANDLE | B9 | |
||
| 52 | 1004512-60 | 1 | SPRAY SA | B9 | |
||
| 53 | 1004512-61 | 1 | SPRAY SA | B9 | |
||
| 54 | 1004512-62 | 1 | HOSE SA | B9 | |
