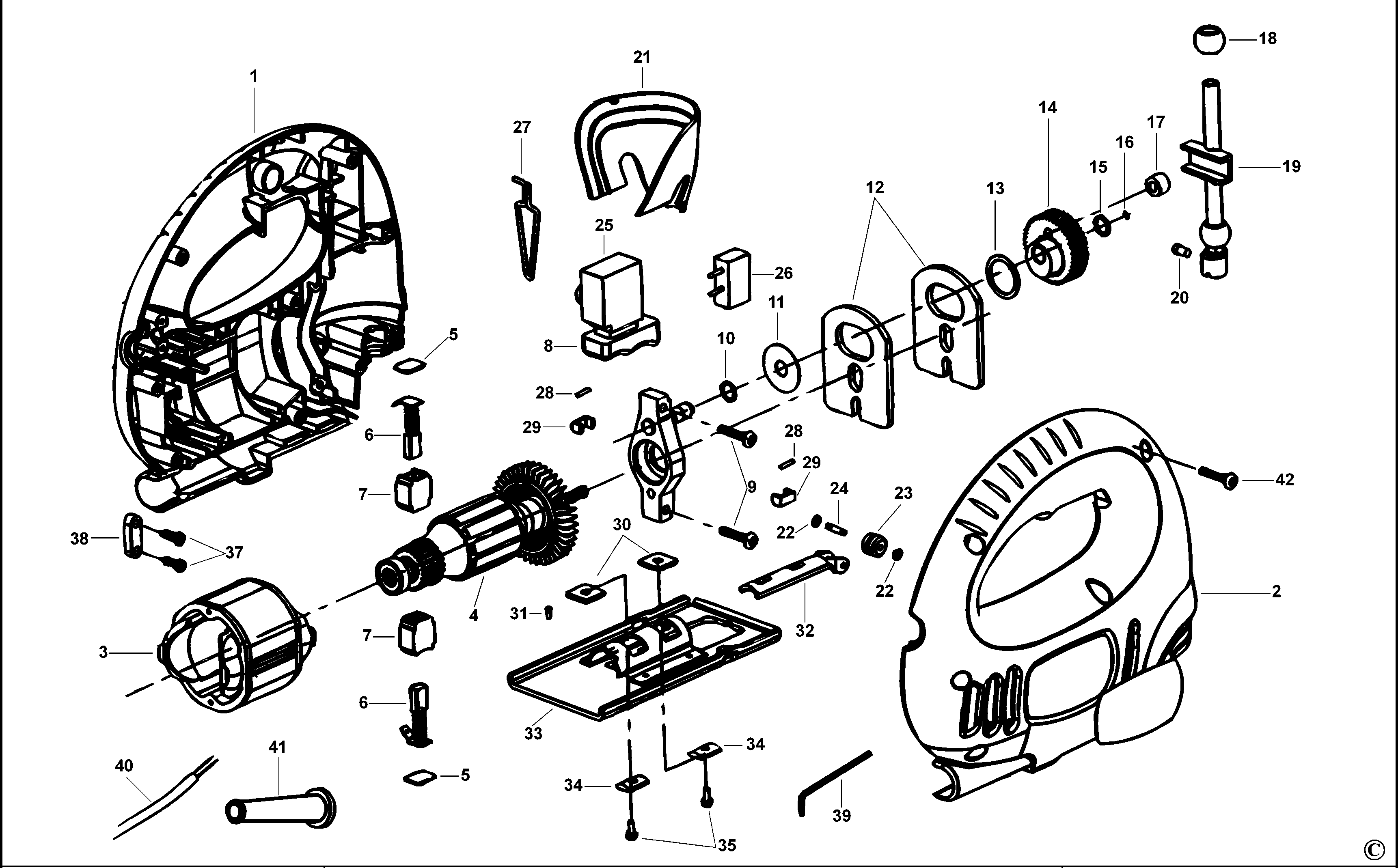

FJ001 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010119-01 | 1 | CLAMSHELL LH | CD301-01 | B5 |  |
|
| 2 | 6010119-02 | 1 | CLAMSHELL RH | CD301-02 | B5 | |
|
| 3 | 6010119-03 | 1 | FIELD 220 / 240V | CD301-03 | B5 | |
|
| 4 | 6010119-04 | 1 | ARMATURE 220/240V | CD301-04 | B5 | |
|
| 5 | 6010119-05 | 2 | BLOCK | CD301-05 | B5 | |
|
| 6 | 6010119-06 | 2 | BRUSH | CD301-06 | B5 | |
|
| 7 | 6010119-07 | 2 | BRUSH HOLDER | CD301-07 | B5 | |
|
| 8 | 6010119-08 | 1 | HOLDER | CD301-08 | B5 | |
|
| 9 | 6010119-09 | 2 | SCREW | CD301-09 | B5 | |
|
| 10 | 6010119-10 | 1 | WASHER | CD301-10 | B5 | |
|
| 11 | 6010119-11 | 1 | WASHER | CD301-11 | B5 | |
|
| 12 | 6010119-12 | 2 | SUPPORT PLATE | CD301-12 | B5 | |
|
| 13 | 6010119-13 | 1 | WASHER | CD301-13 | B5 | |
|
| 14 | 6010119-14 | 1 | GEAR | CD301-14 | B5 | |
|
| 15 | 6010119-15 | 1 | WASHER | CD301-15 | B5 | |
|
| 16 | 6010119-16 | 1 | RING | CD301-16 | B5 | |
|
| 17 | 6010119-17 | 1 | RING | CD301-17 | B5 | |
|
| 18 | 6010119-18 | 1 | BEARING SLIDE | CD301-18 | B5 | |
|
| 19 | 6010119-19 | 1 | PLUNGER | CD301-19 | B5 | |
|
| 20 | 6010119-20 | 1 | SCREW | CD301-20 | B5 | |
|
| 21 | 6010119-21 | 1 | GUARD | CD301-21 | B5 | |
|
| 22 | 6010119-22 | 1 | RING | CD301-22 | B5 | |
|
| 23 | 6010119-23 | 1 | WHEEL GUIDE | CD301-23 | B5 | |
|
| 24 | 6010119-24 | 1 | SHAFT | CD301-24 | B5 | |
|
| 25 | 6010119-25 | 1 | SWITCH | CD301-25 | B5 | |
|
| 26 | 6010119-26 | 1 | CAPACITOR | 022MF | CD301-26 | B5 | |
| 27 | 6010119-27 | 1 | WIRE STEEL | CD301-27 | B5 | |
|
| 28 | 6010119-28 | 1 | PIN | CD301-28 | B5 | |
|
| 29 | 6010119-29 | 1 | CHUTE | CD301-29 | B5 | |
|
| 30 | 6010119-30 | 2 | NUT | CD301-30 | B5 | |
|
| 31 | 6010119-31 | 1 | PIN | CD301-31 | B5 | |
|
| 32 | 6010119-32 | 1 | HOLDER | CD301-32 | B5 | |
|
| 33 | 6010119-33 | 1 | BASE PLATE | CD301-33 | B5 | |
|
| 34 | 6010119-34 | 2 | PLATE | CD301-34 | B5 | |
|
| 35 | 6010119-35 | 2 | SCREW | CD301-35 | B5 | |
|
| 37 | 6010119-37 | 2 | SCREW | CD301-37 | B5 | |
|
| 38 | 6010119-38 | 1 | CORD CLAMP | CD301-38 | B5 | |
|
| 39 | 000000-00 | 1 | NO LONGER AVAILABLE | B5 | |||
| 40 | 6010119-40 | 1 | CORDSET | CD301-40 | B5 | |
|
| 41 | 6010119-41 | 1 | CORD PROTECTOR | CD301-41 | B5 | |
|
| 42 | 6010119-42 | 6 | SCREW | CD301-42 | B5 | |
