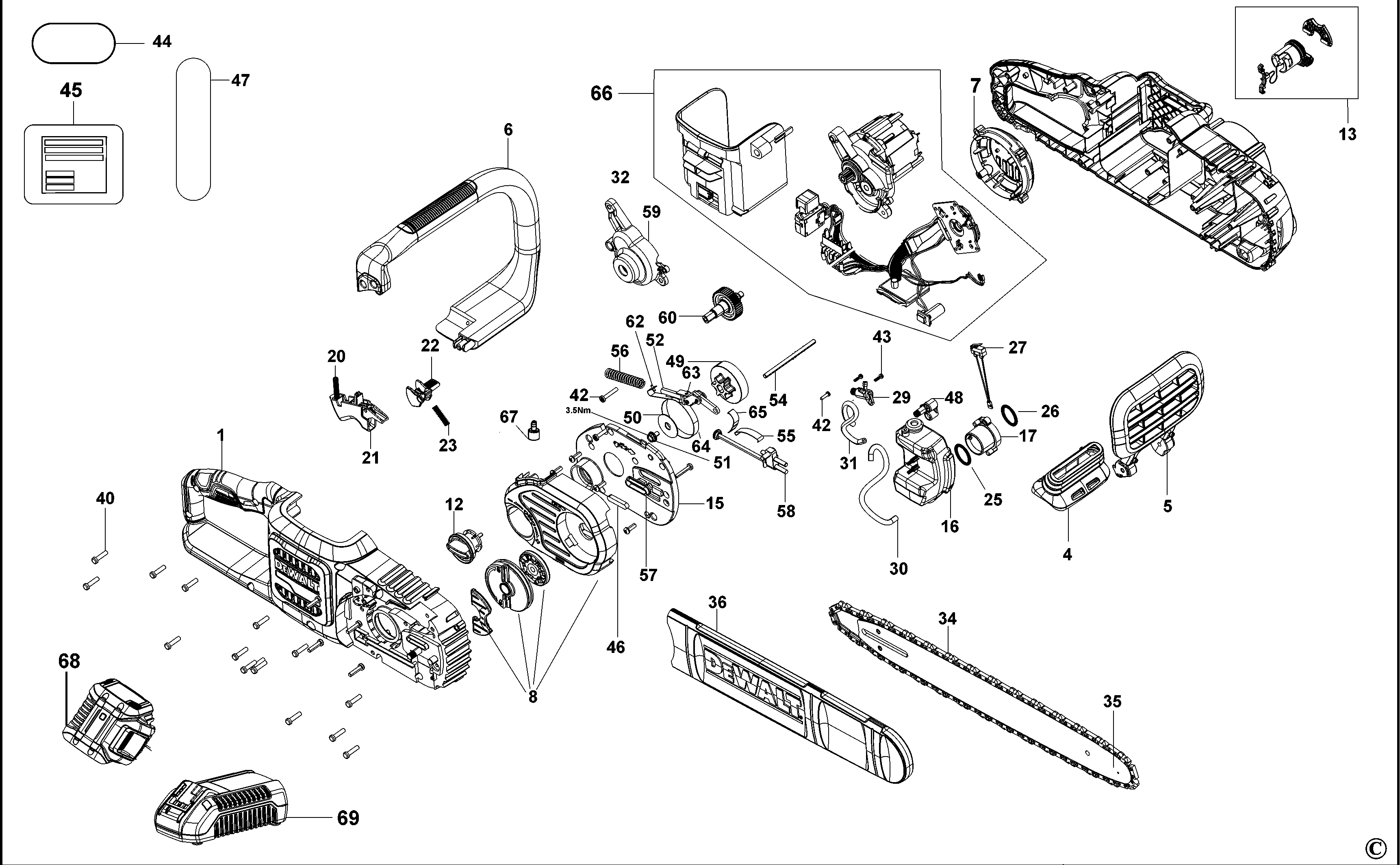

DCM575 CHAINSAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90630448 | 1 | HOUSING SA | GB |  |
||
| 4 | 90636798 | 1 | SEAL | GB | |
||
| 5 | 90609587 | 1 | GUARD | GB | |
||
| 6 | 90630455 | 1 | HANDLE | GB | |
||
| 7 | 90635490 | 1 | CAP SA | GB | |
||
| 8 | N723753 | 1 | COVER | GB |  |
||
| 12 | N738912 | 1 | KNOB SA | GB | |
||
| 13 | 90618141 | 1 | CAP | GB | |
||
| 15 | 90609778 | 1 | COVER | GB | |
||
| 16 | 90618137 | 1 | TANK | GB | |
||
| 17 | 90618138 | 1 | ADAPTOR | GB | |
||
| 20 | 90623323 | 1 | SPRING COMPRESSION | GB | |
||
| 21 | 90613570 | 1 | TRIGGER | GB | |
||
| 22 | 90613569 | 1 | LEVER LOCK | GB | |
||
| 23 | 90620179 | 1 | SPRING | GB | |
||
| 25 | 90618142 | 1 | SEAL | GB | |
||
| 26 | 90618339 | 1 | O RING | GB | |
||
| 27 | 90637896 | 1 | SWITCH | BRAKE SWITCH | GB | |
|
| 29 | N734718 | 1 | PUMP SA | GB | |
||
| 30 | 90609541 | 1 | TUBE | GB | |
||
| 31 | 90609542 | 1 | TUBE | GB | |
||
| 32 | N416900 | 1 | TERMINAL | GB | |
||
| 34 | N594321 | 1 | CHAIN | GB | |
||
| 35 | N594320 | 1 | GUIDE | GB | |
||
| 36 | 90619707 | 1 | SHEATH | GB | |
||
| 40 | 330019-13 | 19 | SCREW | M4X19 T20 | GB | |
|
| 41 | 330019-11 | 6 | SCREW | M4.55x13 T20 | GB | |
|
| 42 | 330019-14 | 5 | SCREW | GB | |
||
| 43 | 330019-28 | 2 | SCREW | GB | |
||
| 44 | 90641858 | 1 | LABEL | GB | |
||
| 45 | N776091 | 1 | RATING PLATE | GB | |
||
| 46 | 90622086 | 1 | SEAL | GB | |
||
| 47 | 90625494 | 1 | LABEL | GB | |
||
| 48 | 90104269 | 1 | PLUG | GB | |
||
| 49 | 90618228 | 1 | SPROCKET | GB | |
||
| 50 | 90618229 | 1 | WASHER | GB | |
||
| 51 | 90639221 | 1 | BOLT | GB | |
||
| 52 | 90619644 | 1 | BRAKE SA | GB | |
||
| 54 | 90618528 | 1 | PIN | GB | |
||
| 55 | 90621730 | 1 | LEAF SPRING | GB | |
||
| 56 | 90609777 | 1 | SPRING | GB | |
||
| 57 | 90618051 | 1 | SEAL | GB | |
||
| 58 | 90626481 | 1 | ADJUSTER | CHAIN | GB | |
|
| 59 | N722863 | 1 | GEARCASE COVER | GB | |
||
| 60 | N898446 | 1 | OUTPUT SHAFT SA | GB | |||
| 62 | 90594864 | 1 | PIN | GB | |
||
| 63 | 90627301 | 1 | SPIROL PIN | GB | |
||
| 64 | 90638025 | 1 | STRAP | GB | |
||
| 65 | 90622670 | 1 | LEAF SPRING | GB | |
||
| 66 | N863206 | 1 | MOTOR & SWITCH SA | GB | |
||
| 67 | 90622705 | 1 | FILTER SA | GB | |
||
| 68 | N491552 | 1 | BATTERY 3 X18V-9.0AH-162WH | DCB547-XJ | GB | |
|
| 69 | N473855 | 1 | CHARGER GB | GB | |
||
| 70 | N687543 | 1 | SEAL | GB | |
