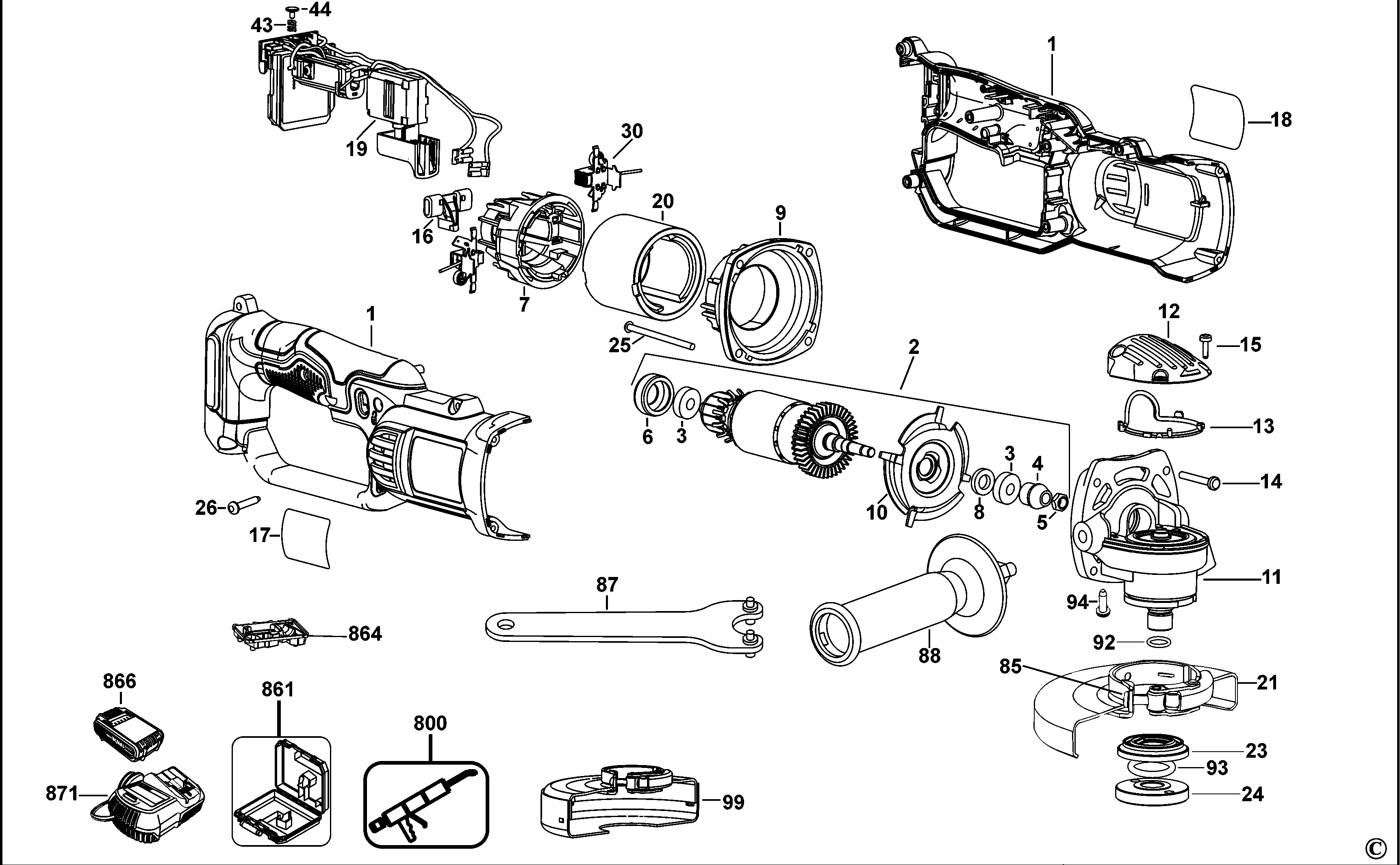

DCG412 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N115615 | 1 | CLAMSHELL SET | 20 V housings | GB |  |
|
| 2 | 652479-00SV | 1 | ARMATURE SA | GB | |
||
| 3 | 330003-60 | 2 | BEARING | GB |  |
||
| 4 | 623564-00 | 1 | PINION | 9 TOOTH | GB | |
|
| 5 | 604484-00 | 1 | NUT | GB | |
||
| 6 | 631563-00 | 1 | BOOT | GB | |
||
| 7 | N171820 | 1 | SUPPORT BEARING | GB | |
||
| 8 | 623617-00 | 1 | FELT SEAL | GB | |
||
| 9 | 640579-01 | 1 | BAFFLE FAN | GB | |||
| 10 | N422242 | 1 | RETAINER | GB | |
||
| 11 | N042060SV | 1 | GEARCASE SA | M14 SPINDLE | GB | |
|
| 12 | 623562-00 | 1 | GEARCASE COVER | GB | |
||
| 13 | 623618-00 | 1 | GASKET | GB | |
||
| 14 | 330065-13 | 4 | SCREW | GB | |
||
| 15 | 385676-01 | 4 | SCREW | GB | |
||
| 16 | N129056 | 1 | BUTTON LOCK-OFF | GB | |
||
| 17 | N173923 | 1 | RATING PLATE | DCG412 TY1 | GB | ||
| 18 | N139498 | 1 | BRAND LABEL | GB | |
||
| 19 | N165338 | 1 | SWITCH SA | DCG412 EURO | GB | |
|
| 20 | 611202-00SV | 1 | MAGNET | GB | |
||
| 21 | N039878 | 1 | GUARD SA | 125MM, KEYLESS | GB | |
|
| 23 | 633257-00SV | 1 | INNER FLANGE SA | GB | |
||
| 24 | 622613-02 | 1 | OUTER FLANGE | M14 | GB | |
|
| 25 | 330019-25 | 1 | SCREW | GB | |
||
| 26 | 90611830 | 6 | SCREW | GB | |
||
| 30 | 610126-00 | 2 | BRUSHBOX SA | GB | |
||
| 43 | N102647 | 1 | SPRING | GB | |
||
| 44 | N122099 | 1 | BLOCK | GB | |
||
| 85 | 631609-03 | 1 | SCREW | GB | |
||
| 85 | 631609-03 | 1 | SCREW | GB | |
||
| 87 | 401680-00 | 1 | WRENCH | GB | |
||
| 88 | N401305 | 1 | SIDE HANDLE | GB | |
||
| 92 | 633045-00 | 1 | O RING | 9.19x2.62 | GB | |
|
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | GB | |
|
| 94 | N033051 | 1 | SCREW | GB | |
||
| 99 | N042787 | 1 | GUARD SA | 125MM, TYPE 1 KEYL | GB | |
|
| 800 | 870889-02 | 1 | GREASE | GB | |
||
| 861 | N132422 | 1 | KITBOX | GB | |
||
| 864 | N771496 | 1 | INSERT | GB | |||
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCG412M2 | GB | |
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCG412L2 | GB | |
| 871 | N450537 | 1 | CHARGER 10.8V - 18V | GB | |
