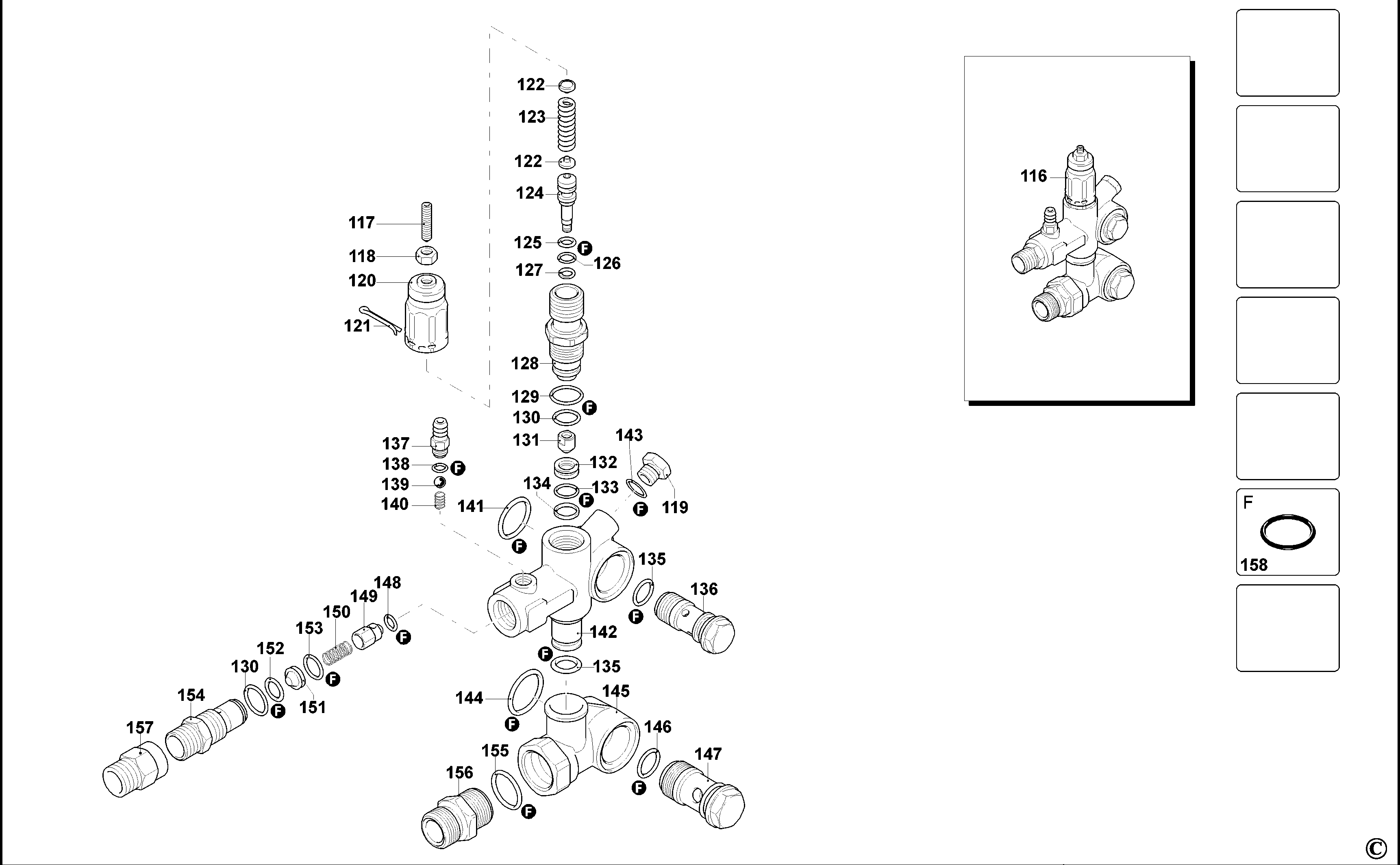

DXPW010E PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004712-12 | 4 | SCREW | GB |  |
||
| 2 | 1004712-13 | 13 | SCREW | GB | |
||
| 3 | 1004712-40 | 1 | KNOB | GB | |
||
| 4 | 1004713-86 | 1 | SUPPORT | GB | |
||
| 5 | 1004713-78 | 1 | GUARD | GB | |
||
| 6 | 1004709-62 | 4 | SCREW | GB | |
||
| 7 | 1004709-65 | 8 | WASHER | GB | |
||
| 8 | 1004712-19 | 4 | NUT | GB | |
||
| 9 | 1004712-15 | 1 | HOSE | GB | |
||
| 10 | 1004710-70 | 1 | HOSE | GB | |
||
| 11 | 1004710-89 | 1 | FILTER | GB | |
||
| 12 | 1004710-68 | 1 | HOSE SA | GB | |
||
| 13 | 1004712-94 | 1 | NUT | GB | |
||
| 14 | 1004710-83 | 1 | FILTER | GB | |
||
| 15 | 1004713-77 | 1 | GUARD | GB | |
||
| 16 | 1004713-75 | 1 | HANDLE | GB | |
||
| 17 | 1004713-64 | 3 | GUARD | GB | |
||
| 18 | 1004713-65 | 3 | GUARD | GB | |
||
| 19 | 1004713-85 | 1 | CARRIER | GB | |
||
| 20 | 1004713-76 | 1 | GUARD | GB | |
||
| 21 | 1004714-12 | 2 | KNOB | GB | |
||
| 22 | 1004714-01 | 1 | GUARD | GB | |
||
| 23 | 1004709-01 | 1 | MOTOR SA | Refer Manual Service | GB | |
|
| 24 | 1004709-52 | 2 | CAP | GB | |
||
| 25 | 1004713-89 | 2 | WHEEL | GB | |
||
| 26 | 1004713-87 | 1 | FRAME | GB | |
||
| 27 | 1004710-34 | 2 | NUT | GB | |
||
| 28 | 1004713-80 | 2 | GUARD | GB | |
||
| 29 | 1004713-79 | 2 | GUARD | GB | |
||
| 30 | 1004713-81 | 2 | DAMPER | GB | |
||
| 31 | 1004709-68 | 2 | SCREW | GB | |
||
| 32 | 1004713-90 | 4 | SPACER | GB | |
||
| 33 | 1004709-66 | 4 | SCREW | GB | |
||
| 34 | 1004713-88 | 1 | FRAME | GB | |
||
| 35 | 1004710-22 | 6 | O RING | GB | |
||
| 36 | 1004710-24 | 6 | PLUG | GB | |
||
| 37 | 1004710-19 | 6 | VALVE | GB | |
||
| 38 | 1004710-15 | 6 | O RING | GB | |
||
| 39 | 1004710-14 | 1 | PLUG | GB | |
||
| 40 | 1004710-05 | 1 | O RING | GB | |
||
| 41 | 1004710-21 | 3 | RING | GB | |
||
| 42 | 1004711-38 | 3 | SEAL | GB | |
||
| 43 | 1004711-25 | 3 | GUIDE | GB | |
||
| 44 | 1004710-25 | 3 | O RING | GB | |
||
| 45 | 1004710-13 | 3 | SEAL | GB | |
||
| 46 | 1004711-42 | 3 | RING | GB | |
||
| 47 | 1004710-06 | 8 | SCREW | GB | |
||
| 48 | 1004711-23 | 1 | SUPPORT | GB | |
||
| 49 | 1004709-84 | 2 | O RING | GB | |
||
| 50 | 1004712-28 | 1 | BEARING | GB | |
||
| 51 | 1004711-39 | 1 | PUMP SA | GB | |
||
| 52 | 1004710-10 | 1 | PLUG | GB | |
||
| 53 | 1004710-32 | 3 | NUT | GB | |
||
| 54 | 1004710-31 | 3 | WASHER | GB | |
||
| 55 | 1004711-31 | 3 | PISTON | GB | |
||
| 56 | 1004711-32 | 3 | PLATE | GB | |
||
| 57 | 1004709-81 | 3 | O RING | GB | |
||
| 58 | 1004711-30 | 3 | PISTON | GB | |
||
| 59 | 1004711-24 | 3 | PIN | GB | |
||
| 60 | 1004711-41 | 3 | CON ROD | GB | |
||
| 61 | 1004710-41 | 3 | RING | GB | |
||
| 62 | 1004711-35 | 8 | WASHER | GB | |
||
| 63 | 1004711-82 | 1 | O RING | GB | |
||
| 64 | 1004711-85 | 1 | COVER | GB | |
||
| 65 | 1004710-97 | 6 | SCREW | GB | |
||
| 66 | 1004712-27 | 1 | CRANKSHAFT | GB | |
||
| 67 | 1004711-28 | 1 | KEY | GB | |
||
| 68 | 1004709-61 | 1 | RING | GB | |
||
| 69 | 1004711-26 | 1 | SHIM | GB | |
||
| 69 | 1004711-29 | 1 | SHIM | GB | |
||
| 69 | 1004711-40 | 1 | SHIM | GB | |
||
| 69 | 1004711-27 | 1 | SHIM | GB | |
||
| 70 | 1004711-22 | 1 | SUPPORT | GB | |
||
| 71 | 1004709-90 | 3 | O RING | GB | |
||
| 72 | 1004711-91 | 2 | PLUG | GB | |
||
| 73 | 1004713-98 | 1 | COUPLING | GB | |
||
| 74 | 1004709-60 | 1 | O RING | GB | |
||
| 75 | 1004712-29 | 1 | HEAD SA | GB | |
||
| 76 | 1004710-02 | 8 | SCREW | GB | |
||
| 77 | 1004711-43 | 1 | BEARING | GB | |
||
| 78 | 1004712-30 | 1 | HEAD SA | GB | |
||
| 79 | 1004711-34 | 1 | PRESSURE GAUGE | GB | |
||
| 80 | 1004709-53 | 1 | VALVE | GB | |
||
| 81 | 1004709-11 | 1 | PUMP SA | GB | |
||
| 82 | 1004709-55 | 1 | VALVE | GB | |
||
| 83 | 1004708-95 | 1 | VALVE KIT | GB | |
||
| 84 | 1004708-94 | 1 | PISTON KIT | GB | |
||
| 85 | 1004708-83 | 1 | SEALS KIT | GB | |
||
| 86 | 1004708-84 | 1 | SEALS KIT | GB | |
||
| 87 | 1004708-82 | 1 | RING SA | GB | |
||
| 89 | 1004710-23 | 1 | KEY | GB | |
||
| 90 | 1004710-29 | 1 | RING | GB | |
||
| 91 | 1004710-28 | 1 | CIRCLIP | GB | |
||
| 92 | 1004709-64 | 1 | RING | GB | |
||
| 93 | 1004710-27 | 1 | BEARING | GB | |
||
| 94 | 1004711-37 | 1 | SEAL | GB | |
||
| 95 | 1004711-36 | 1 | PINION | GB | |
||
| 96 | 1004710-46 | 1 | PLUG | GB | |
||
| 97 | 1004710-74 | 1 | GEARBOX | GB | |
||
| 98 | 1004710-18 | 4 | SCREW | GB | |
||
| 99 | 1004711-88 | 1 | GAUGE | GB | |
||
| 100 | 1004709-90 | 2 | O RING | GB | |
||
| 101 | 1004711-91 | 2 | PLUG | GB | |
||
| 102 | 1004709-58 | 4 | SCREW | GB | |
||
| 103 | 1004710-12 | 1 | SCREW | GB | |
||
| 104 | 1004711-59 | 1 | O RING | GB | |
||
| 105 | 1004709-95 | 1 | WASHER | GB | |
||
| 106 | 1004710-78 | 1 | GEAR | GB | |
||
| 107 | 1004710-75 | 1 | FLANGE | GB | |
||
| 108 | 1004709-84 | 1 | O RING | GB | |
||
| 109 | 1004709-72 | 4 | SCREW | GB | |
||
| 110 | 1004710-52 | 4 | WASHER | GB | |
||
| 111 | 1004710-76 | 1 | FLANGE | GB | |
||
| 112 | 1004710-26 | 4 | SPACER | GB | |
||
| 113 | 1004710-30 | 4 | SCREW | GB | |
||
| 114 | 1004708-79 | 1 | GEARBOX SA | GB | |
||
| 115 | 1004708-89 | 1 | SEALS KIT | GB | |
||
| 116 | 1004709-10 | 1 | VALVE | GB | |
||
| 117 | 1004712-72 | 1 | SCREW | GB | |
||
| 118 | 1004710-34 | 1 | NUT | GB | |
||
| 119 | 1004713-51 | 1 | PLUG | GB | |
||
| 120 | 1004712-45 | 1 | INSERT | GB | |
||
| 121 | 1004712-46 | 1 | PIN | GB | |
||
| 122 | 1004711-87 | 2 | PLATE | GB | |
||
| 123 | 1004712-59 | 1 | SPRING | GB | |
||
| 124 | 1004712-58 | 1 | PISTON | GB | |
||
| 125 | 1004712-21 | 1 | O RING | GB | |
||
| 126 | 1004709-88 | 1 | O RING | GB | |
||
| 127 | 1004712-52 | 1 | RING | GB | |
||
| 128 | 1004712-60 | 1 | GUIDE | GB | |
||
| 129 | 1004710-49 | 1 | O RING | GB | |
||
| 130 | 1004709-75 | 5 | O RING | GB | |
||
| 131 | 1004712-20 | 1 | SHUTTER | GB | |
||
| 132 | 1004712-62 | 1 | Seat | GB | |
||
| 133 | 1004709-91 | 1 | O RING | GB | |
||
| 134 | 1004712-61 | 1 | RING | GB | |
||
| 135 | 1004709-69 | 2 | O RING | GB | |
||
| 136 | 1004711-61 | 1 | SCREW | GB | |
||
| 137 | 1004711-96 | 1 | COUPLING | GB | |
||
| 138 | 1004709-78 | 1 | O RING | GB | |
||
| 139 | 1004710-50 | 1 | BALL | GB | |
||
| 140 | 1004711-70 | 1 | SPRING | GB | |
||
| 141 | 1004712-22 | 1 | O RING | GB | |
||
| 142 | 1004713-47 | 1 | VALVE BODY | GB | |
||
| 143 | 1004709-81 | 1 | O RING | GB | |
||
| 144 | 1004711-65 | 1 | O RING | GB | |
||
| 145 | 1004713-48 | 1 | BODY | GB | |
||
| 146 | 1004710-11 | 1 | O RING | GB | |
||
| 147 | 1004712-23 | 1 | SCREW | GB | |
||
| 148 | 1004712-14 | 1 | O RING | GB | |
||
| 149 | 1004712-50 | 1 | SHUTTER | GB | |
||
| 150 | 1004712-51 | 1 | SPRING | GB | |
||
| 151 | 1004712-49 | 1 | INSERT | GB | |
||
| 152 | 1004711-57 | 1 | O RING | GB | |
||
| 153 | 1004712-56 | 1 | O RING | GB | |
||
| 154 | 1004712-54 | 1 | COUPLING | GB | |
||
| 155 | 1004709-77 | 1 | O RING | GB | |
||
| 156 | 1004713-46 | 1 | COUPLING | GB | |
||
| 157 | 1004710-45 | 1 | COUPLING | GB | |
||
| 158 | 1004709-40 | 1 | GASKET SET | GB | |
||
| 159 | 1004709-17 | 1 | HANDLE SA | GB | |
||
| 160 | 1004772-35 | 1 | EXTENSION | GB | |
||
| 161 | 1004712-02 | 2 | O RING | GB | |
||
| 162 | 1004714-11 | 1 | HOSE | GB | |
||
| 163 | 1004709-73 | 1 | O RING | GB | |
||
| 164 | 1004708-96 | 1 | NOZZLE | GB | |
||
| 305 | 1004719-43 | 1 | EXTENSION | Optional | GB | |
|
| 307 | 1004719-45 | 1 | EXTENSION | Optional | GB | |
|
| 308 | 1004719-46 | 1 | EXTENSION | Optional | GB | |
|
| 311 | 1004719-49 | 1 | EXTENSION | Optional | GB | |
|
| 312 | 1004719-50 | 1 | NOZZLE | Optional | GB | |
|
| 315 | 1004719-53 | 1 | NOZZLE | Optional | GB | |
|
| 319 | 1004719-57 | 1 | BRUSH | Optional | GB | |
|
| 323 | 1004719-61 | 1 | HOSE | Optional | GB | |
|
| 324 | 1004719-62 | 1 | HOSE | Optional | GB | |
|
| 325 | 1004719-63 | 1 | COUPLING | Optional | GB | |
|
| 326 | 1004719-64 | 1 | COUPLING | Optional | GB | |
|
| 327 | 1004719-65 | 1 | EXTENSION | Optional | GB | |
|
| 328 | 1004719-66 | 1 | EXTENSION | Optional | GB | |
|
| 329 | 1004719-67 | 1 | EXTENSION | Optional | GB | |
|
| 330 | 1004719-68 | 1 | EXTENSION | Optional | GB | |
|
| 331 | 1004719-69 | 1 | EXTENSION | Optional | GB | |
|
| 332 | 1004719-70 | 1 | HANDLE SA | Optional | GB | |
|
| 334 | 1004719-72 | 1 | HOSE | Optional | GB | |
