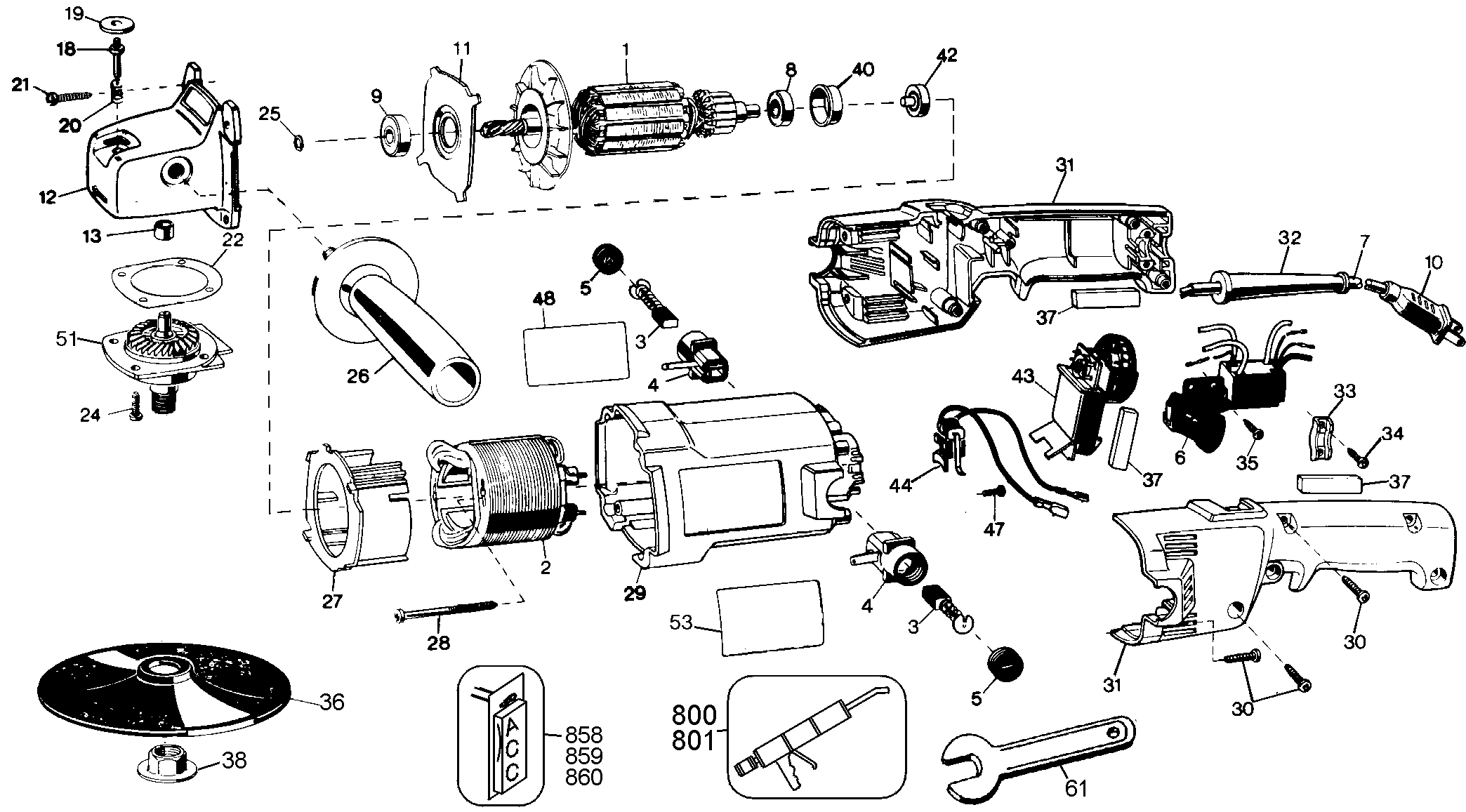

6138-40 SANDER/POLISHER Type 100 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 448519-08SV | 1 | ARMATURE & FAN | 6 TEETH; INC 8-11,25 | B5 |  |
|
| 2 | 448171-75SV | 1 | FIELD | B5 | |||
| 3 | 450374-12 | 2 | BRUSH & SPRING | B5 |  |
||
| 4 | 448083-01 | 2 | BRUSHBOX SA | B5 | |
||
| 5 | 448084-01 | 2 | BRUSH CAP | B5 | |
||
| 6 | 450892-02 | 1 | SWITCH | B5 | |
||
| 7 | 330077-98 | 1 | CORDSET POLARISED | NPP | B5 | ||
| 8 | 330003-04 | 1 | BEARING | B5 | |||
| 9 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B5 | |
|
| 10 | 234900-02 | 1 | PLUG | B5 | |||
| 11 | 448079-00 | 1 | PLATE | B5 | |||
| 12 | 448506-08 | 1 | GEARCASE | INC 13 | B5 | ||
| 13 | 449852-00 | 1 | SLEEVE BEARING | B5 | |
||
| 18 | 447827-00 | 1 | PIN | B5 | |||
| 19 | 448127-01 | 1 | WASHER | B5 | |
||
| 20 | 448136-00 | 1 | SPRING | B5 | |
||
| 21 | 330019-15 | 4 | SCREW | B5 | |
||
| 22 | 5140120-49 | 1 | GASKET | PCKG'D 143106-00 | B5 | ||
| 24 | 330045-06 | 4 | SCREW | B5 | |
||
| 25 | 696060-00 | 1 | RETAINER | B5 | |
||
| 26 | 086319-19 | 1 | SIDE HANDLE | B5 | |
||
| 27 | 447786-00 | 1 | BAFFLE FAN | B5 | |
||
| 28 | 330044-23 | 2 | SCREW | B5 | |
||
| 29 | 447799-00 | 1 | FIELDCASE | B5 | |
||
| 30 | 330019-13 | 8 | SCREW | M4X19 T20 | B5 | |
|
| 31 | 151122-00 | 1 | HANDLE & COVER | B5 | |
||
| 32 | 148809-00 | 1 | CORD PROTECTOR | NPP | B5 | |
|
| 33 | 450877-00 | 1 | CORD CLAMP | B5 | |
||
| 34 | 330019-03 | 2 | SCREW | B5 | |
||
| 35 | 330019-01 | 1 | SCREW.TEMP | M3.63 x 9.5mm T15 | B5 | |
|
| 36 | 146546-01 | 1 | PAD | 6.5 INCH, RUBBER | B5 | |
|
| 37 | 150844-00 | 3 | PAD | B5 | |
||
| 38 | 636574-00 | 1 | WASHER CLAMP | B5 | |
||
| 40 | 445217-02 | 1 | SLEEVE | B5 | |
||
| 42 | 148210-00 | 1 | MAGNET | B5 | |
||
| 43 | 000000-00 | 1 | NO LONGER AVAILABLE | B5 | |||
| 44 | 450890-02 | 1 | TACHOMETER | B5 | |||
| 47 | 330019-02 | 1 | SCREW | B5 | |
||
| 48 | 000000-00 | 1 | NO LONGER AVAILABLE | B5 | |||
| 51 | 449706-12SV | 1 | GEAR & SPINDLE | B5 | |||
| 53 | 450107-00 | 1 | LABEL | B5 | |||
| 61 | 151318-00 | 1 | WRENCH SPECIAL | B5 | |||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | B5 | |
|
| 801 | 429698-00 | 1 | GREASE | BD-L 2 | B5 | |
|
| 858 | 151317-00 | 1 | ADAPTOR | B5 | |||
| 859 | 150795-00 | 1 | ADAPTOR | POWER | B5 | ||
| 860 | 449365-08 | 2 | SANDING PAD | B5 |
