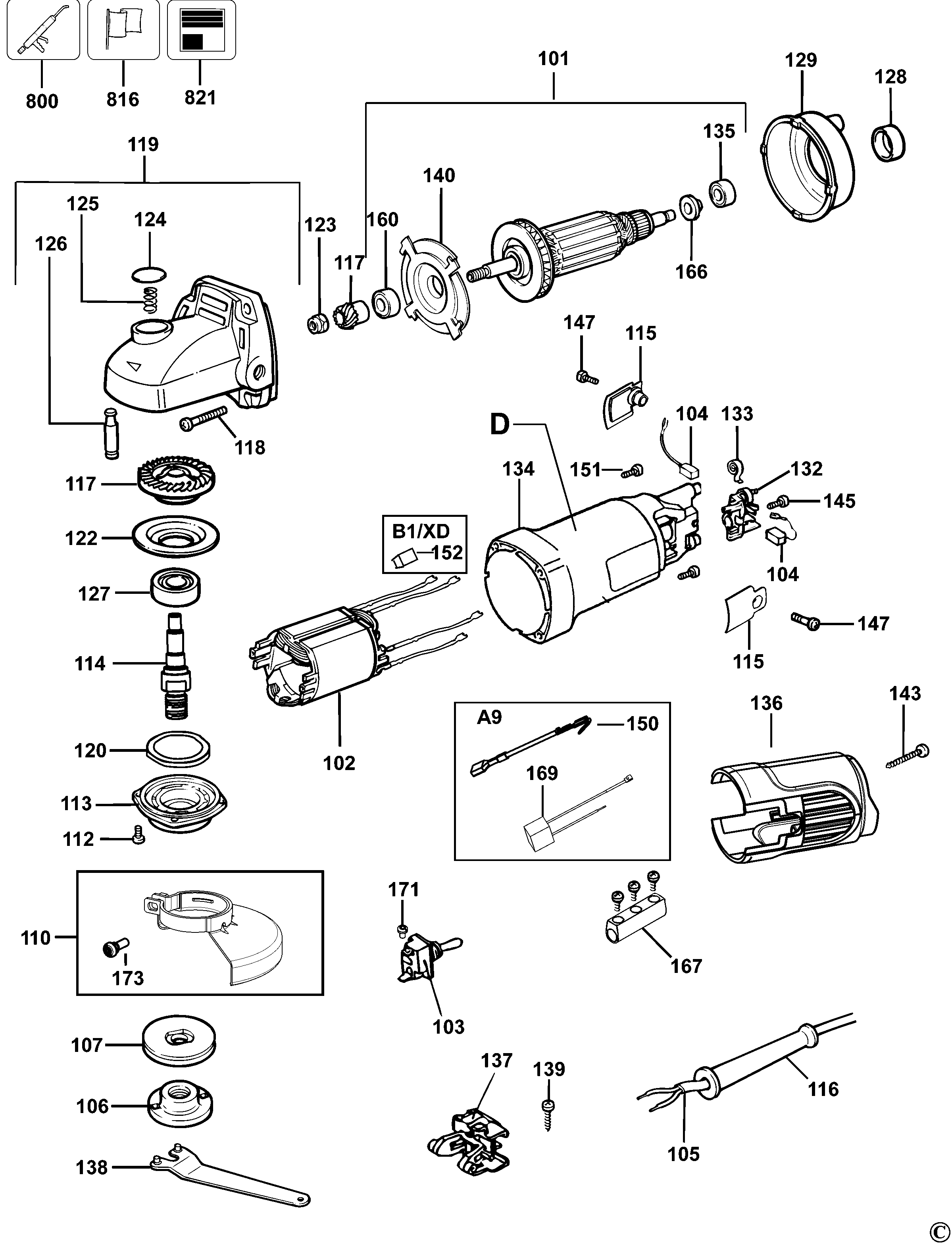

DW810 SMALL ANGLE GRINDER Type 10 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | N561808 | 1 | ARMATURE SA | B1 | |||
| 102 | N561963 | 1 | FIELD SA | B1 | |||
| 103 | N032282 | 1 | SWITCH | B1 |  |
||
| 104 | N035676 | 1 | BRUSH PAIR 230V | B1 | |
||
| 105 | N520069 | 1 | CORDSET | B1 | |||
| 106 | N519902 | 1 | OUTER FLANGE | B1 | |||
| 107 | N519901 | 1 | INNER FLANGE | M10 | B1 | ||
| 110 | N499485 | 1 | GUARD SA | B1 | |||
| 112 | N520080 | 4 | SCREW | B1 | |
||
| 113 | N499484 | 1 | GEARCASE COVER | B1 | |
||
| 114 | N519900 | 1 | SPINDLE | M10 | B1 | ||
| 115 | N499473 | 2 | BRUSH COVER | B1 | |
||
| 116 | 641081-00 | 1 | CORD PROTECTOR | B1 | |
||
| 117 | 661244-00 | 1 | GEAR & PINION | B1 | |
||
| 118 | N520085 | 4 | SCREW | B1 | |||
| 119 | N561809 | 1 | GEARCASE SA | B1 | |||
| 120 | 641893-00 | 1 | FELT SEAL | B1 | |
||
| 122 | N520065 | 1 | FLANGE | B1 | |||
| 123 | 49205017 | 1 | NUT | B1 | |
||
| 124 | N499496 | 1 | BUTTON | B1 | |
||
| 125 | N520072 | 1 | SPRING | B1 | |||
| 126 | N499495 | 1 | SPINDLE LOCK | B1 | |
||
| 127 | 605040-22 | 1 | BEARING | B1 | |
||
| 128 | 930275-00 | 1 | SLEEVE | B1 | |
||
| 129 | N520067 | 1 | BAFFLE | B1 | |||
| 132 | N566924 | 2 | BRUSH HOLDER SA | B1 | |
||
| 133 | 562204-00 | 1 | SPRING | B1 | |
||
| 134 | N505292 | 1 | FIELD CASE KIT | B1 | |
||
| 135 | 605040-03 | 1 | BEARING BALL | B1 | |
||
| 136 | N499492 | 1 | END CAP | B1 | |
||
| 137 | N308840 | 1 | SWITCH SUPPORT | B1 | |
||
| 138 | N520076 | 1 | WRENCH ROUND-PINS | B1 | |||
| 139 | N520087 | 1 | SCREW | B1 | |||
| 140 | 401622-01 | 1 | FLANGE | B1 | |
||
| 143 | N520086 | 2 | SCREW | B1 | |||
| 145 | N520084 | 2 | SCREW | B1 |  |
||
| 147 | N520088 | 2 | SCREW | B1 | |||
| 151 | N520083 | 2 | SCREW | B1 | |
||
| 152 | N169078 | 1 | RUBBER | B1 | |
||
| 160 | N110359 | 1 | BEARING | B1 | |
||
| 166 | 398906-00 | 1 | SPACER INSULATING | B1 | |
||
| 167 | 603180-00 | 1 | CONNECTOR | B1 | |
||
| 171 | N520081 | 1 | SCREW | B1 | |||
| 173 | N520079 | 1 | SCREW | B1 | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | ` | B1 | |
| 816 | N526987 | 1 | BRAND LABEL | B1 | |
||
| 821 | N526989 | 1 | RATING LABEL | B1 |
