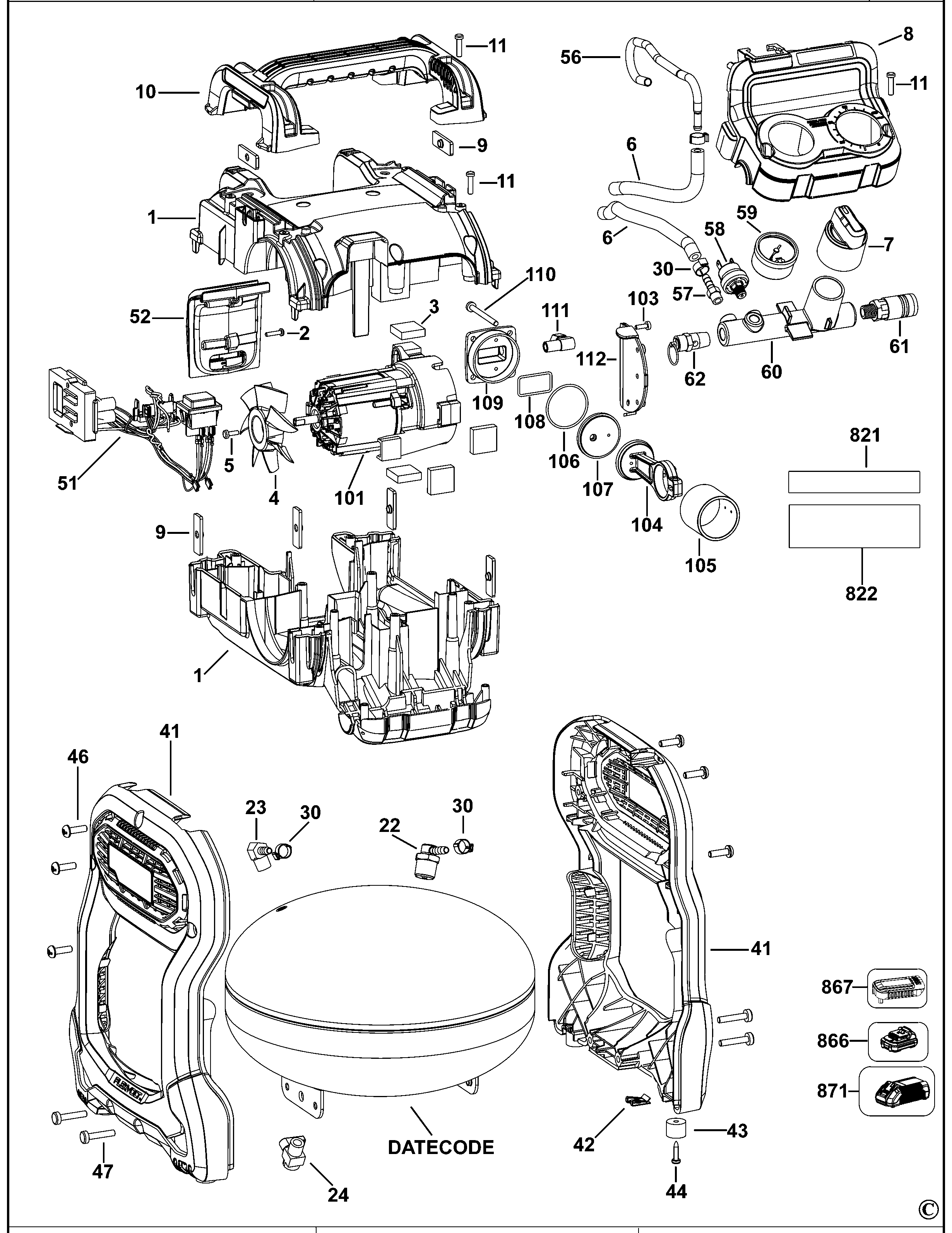

DCC1054 COMPRESSOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N545678 | 1 | CLAMSHELL SET | GB |  |
||
| 2 | 330019-03 | 2 | SCREW | GB |  |
||
| 3 | D25731 | 5 | ISOLATOR | GB | |
||
| 4 | N464139 | 1 | FAN | GB | |
||
| 5 | 330045-45 | 5 | SCREW | GB | |
||
| 6 | N474052 | 2 | HOSE | 1/4x1/2x8.25L | GB | |
|
| 7 | N468425 | 1 | KNOB | GB | |
||
| 8 | N525104 | 1 | COVER | GB | |
||
| 9 | N503522 | 6 | NUT | GB | |
||
| 10 | N468136 | 1 | HANDLE | GB | |
||
| 11 | 330019-13 | 15 | SCREW | M4X19 T20 | GB | |
|
| 22 | N497791 | 1 | VALVE | 1/2NPT x 1/4 BARB | GB | ||
| 23 | N535956 | 1 | CONNECTOR | 1/4 x 1/4NPT 90 DEG | GB | |
|
| 24 | N072023 | 1 | DRAIN COCK | 1/4-NPT MALE | GB | |
|
| 30 | CAC-1206-1 | 2 | CLAMP | GB | |||
| 41 | N471937 | 2 | CLAMSHELL SET | GB | |
||
| 42 | SSF-8131 | 1 | NUT | GB | |
||
| 43 | N462179 | 4 | ISOLATOR | GB | |
||
| 44 | D29381 | 4 | SCREW | 8-18 AB x .75 TPG | GB | |
|
| 46 | N513762 | 6 | SCREW | M4.55x22 LARGE HD | GB | |
|
| 47 | N539601 | 4 | SCREW | M6x1x30 THD FMG | GB | |
|
| 51 | N545679 | 1 | CONTROL MODULE SA | GB | |
||
| 52 | N545683 | 1 | RAIL SA | BATTERY | GB | ||
| 56 | N492635 | 1 | TUBE OUTLET | 5/16 OD ALUM. | GB | |
|
| 57 | N473898 | 1 | CONNECTOR | 1/8NPTx1/4 BARB STR | GB | |
|
| 58 | N632049 | 1 | SWITCH | GB | |||
| 59 | N524747 | 1 | PRESSURE GAUGE | 1.5OD .125NPT 300PSI | GB | |
|
| 60 | N524749 | 1 | MANIFOLD ASSEMBLY | GB | |||
| 61 | N538265 | 1 | CONNECTOR | GB | |
||
| 62 | TIA-4150 | 1 | VALVE | GB | |||
| 101 | N545682 | 1 | ROTOR SA | W/ECCENTRIC/ENDBELL | GB | |
|
| 103 | 330019-06 | 4 | SCREW | GB | |
||
| 104 | N545681 | 1 | CON ROD SA | GB | |
||
| 105 | N498334 | 1 | CYLINDER | GB | |
||
| 106 | N478078 | 1 | O RING | 45.7 x 2.0 | GB | |
|
| 107 | N480941 | 1 | PLATE | GB | |
||
| 108 | N478077 | 1 | O RING | RECTANGULAR | GB | |
|
| 109 | N478084 | 1 | HEAD | CYLINDER | GB | |
|
| 110 | 330045-50 | 4 | SCREW | GB | |
||
| 111 | N492492 | 1 | CONNECTOR | 1/8NPTx 5/16OD TUBE | GB | |
|
| 112 | N471103 | 1 | COVER | GB | |
||
| 821 | N514786 | 1 | RATING PLATE | DCC1054 TY1 | GB | ||
| 822 | N514783 | 1 | WARNING LABEL | GB | |||
| 866 | N473851 | 1 | BATTERY 3 X18V-6.0AH-108WH | Li-Ion - DCB546-XJ | GB | |
|
| 867 | N462141 | 1 | SAFETY CAP | GB | |
||
| 871 | N473855 | 1 | CHARGER GB | DCB118-GB | GB | |
