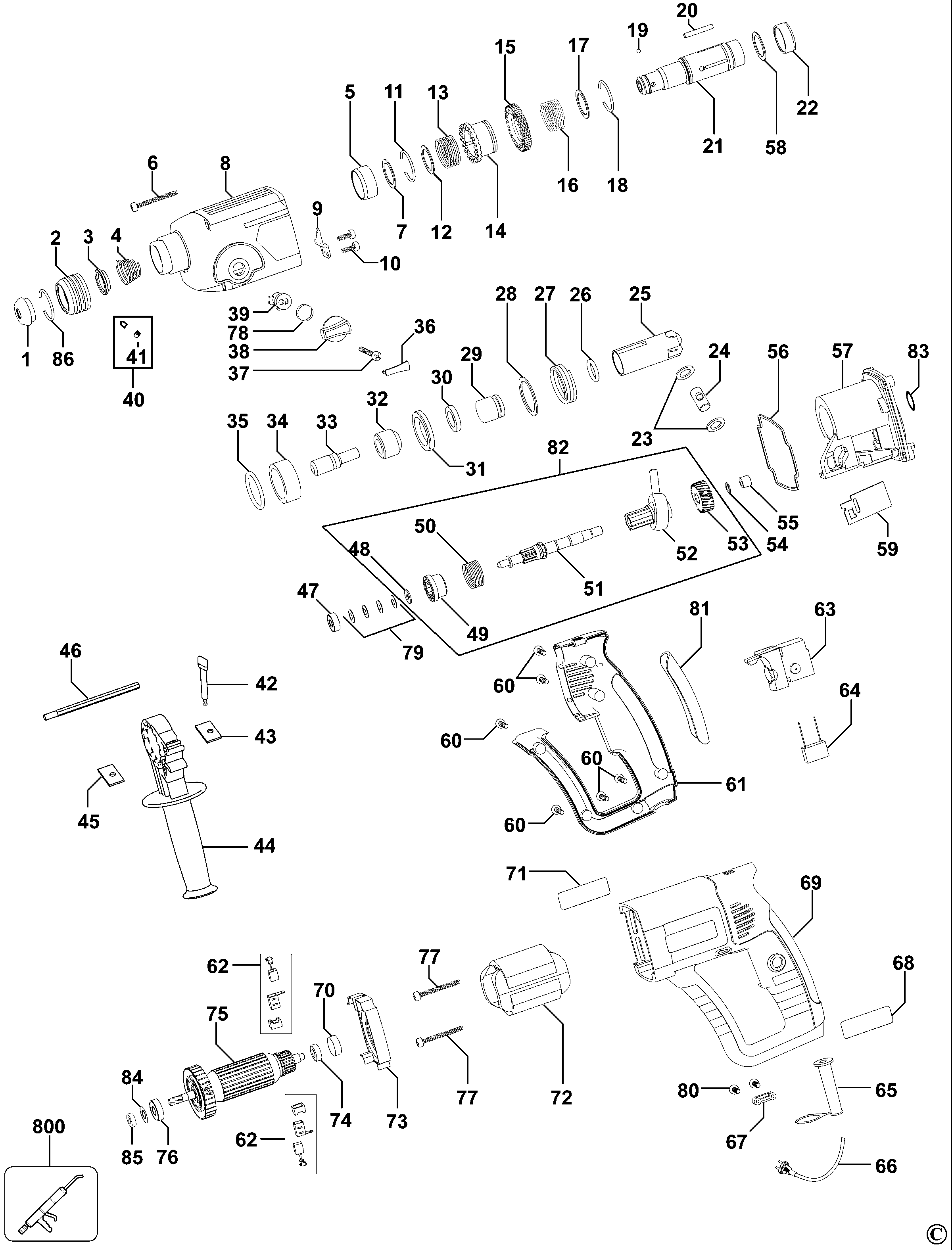

KD650 ROTARY HAMMER Type 2 | Σχέδια
Έγγραφα
Λίστα ανταλλακτικών
Δείτε το πτυσσόμενο μενού, επειδή μερικά προϊόντα ίσως έχουν περισσότερα από ένα σχέδια
Προβολή για εκτύπωση
Προβολή πλήρους σελίδας
| Αρ. είδους | Αριθμός προϊόντος | Ποσότητα ανά | Περιγραφή προϊόντος | General Description | Άλλες πληροφορίες | Αγορές | Κατάσταση προϊόντος | Ενδεικτική τιμή |
|---|---|---|---|---|---|---|---|---|
| 1 | 569381-00 | 1 | COVER | QS |  |
1.15 EUR | ||
| 2 | 569382-00 | 1 | COVER | QS | |
1.15 EUR | ||
| 3 | 569383-00 | 1 | RETAINER | QS | |
1.15 EUR | ||
| 4 | 569384-00 | 1 | SPRING | QS | |
1.15 EUR | ||
| 5 | 90553475 | 1 | BEARING | QS | |
6.66 EUR | ||
| 6 | 569386-00 | 4 | SCREW | ST4.2 X 65 | QS | |
||
| 7 | 90553476 | 1 | WASHER | QS | |
1.40 EUR | ||
| 8 | 569388-00 | 1 | HOUSING FRONT | QS | |
5.45 EUR | ||
| 9 | 90553471 | 1 | BRAKE | QS |  |
2.43 EUR | ||
| 10 | 90553472 | 2 | SCREW | ST4.2 X 8 | QS | |
1.20 EUR | |
| 11 | 90553477 | 1 | RING | DIA 31 | QS | |
1.40 EUR | |
| 12 | 90553478 | 1 | RING | QS | |
1.40 EUR | ||
| 13 | 90553479 | 1 | SPRING | QS | |
1.81 EUR | ||
| 14 | 90553480 | 1 | SLEEVE | QS | |
7.27 EUR | ||
| 15 | 90553481 | 1 | GEAR | QS | |
7.88 EUR | ||
| 16 | 90553482 | 1 | SPRING | QS | |
2.43 EUR | ||
| 17 | 90553483 | 1 | RING | QS | |
1.40 EUR | ||
| 18 | 90553484 | 1 | RING | STEEL WIRE DIA 37 | QS | |
1.40 EUR | |
| 19 | 90550363 | 1 | BALL STEEL | QS | |
1.15 EUR | ||
| 20 | 90553487 | 1 | PIN | P3 X 23.8 | QS | |
1.40 EUR | |
| 21 | 1002744-00 | 1 | SPINDLE | QS | |
18.18 EUR | ||
| 22 | 569402-00 | 1 | SEAL | QS | |
3.64 EUR | ||
| 23 | 90549884 | 2 | WASHER | QS | |
|||
| 24 | 90553557 | 1 | PIN | QS | |
6.06 EUR | ||
| 25 | 90553506 | 1 | CYLINDER | QS | |
8.49 EUR | ||
| 26 | 569406-00 | 1 | O RING | 16 | QS | |
1.15 EUR | |
| 27 | 569409-00 | 1 | SLEEVE | QS | |
1.81 EUR | ||
| 28 | 569408-00 | 1 | RING | QS | |
1.15 EUR | ||
| 29 | 569407-00 | 1 | BEAT PIECE | QS | 2.43 EUR | |||
| 30 | 569410-00 | 1 | O RING | 11 X 3.55 | QS | |
1.15 EUR | |
| 31 | 569411-00 | 1 | O RING | QS | |
1.15 EUR | ||
| 32 | 569412-00 | 1 | SLEEVE | QS | |
1.51 EUR | ||
| 33 | 569413-00 | 1 | HAMMER | QS | |
1.40 EUR | ||
| 34 | 569414-00 | 1 | BLOCK | QS | |
1.30 EUR | ||
| 35 | 569415-00 | 1 | WASHER | QS | |
4.84 EUR | ||
| 36 | 569416-00 | 1 | COVER | QS | |
1.15 EUR | ||
| 37 | 569417-00 | 1 | SCREW | ST4.2 X 16 | QS | 1.15 EUR | ||
| 38 | 569418-00 | 1 | KNOB | QS | 1.15 EUR | |||
| 39 | 569419-00 | 1 | REVERSER | QS | |
1.15 EUR | ||
| 40 | 1004427-00 | 1 | SERVICE KIT | QS | |
1.30 EUR | ||
| 41 | 569421-00 | 1 | SPRING | QS | |
1.15 EUR | ||
| 42 | 569422-00 | 1 | LOCKING KNOB | QS | |
1.15 EUR | ||
| 43 | 569423-00 | 1 | WASHER CLAMP | QS | |
1.15 EUR | ||
| 44 | 569424-00 | 1 | SIDE HANDLE | QS | |
2.18 EUR | ||
| 45 | 569425-00 | 1 | NUT | QS | |
1.15 EUR | ||
| 46 | 569426-00 | 1 | DEPTH ROD | QS | |
1.15 EUR | ||
| 47 | 90553558 | 1 | BEARING | 606 | QS | |
4.25 EUR | |
| 48 | 90553508 | 1 | RING | QS | |
1.40 EUR | ||
| 49 | 90553510 | 1 | CLUTCH | QS | |
7.27 EUR | ||
| 50 | 90553511 | 1 | SPRING | QS | |
3.03 EUR | ||
| 51 | 569431-00 | 1 | SHAFT | QS | |
3.03 EUR | ||
| 52 | 569432-00 | 1 | BEARING | QS | |
9.70 EUR | ||
| 53 | 569433-00 | 1 | GEAR | QS | |
1.81 EUR | ||
| 54 | 569434-00 | 1 | SEAL | QS | |
1.20 EUR | ||
| 55 | 569435-00 | 1 | SEAL | HK0608 | QS | 1.40 EUR | ||
| 56 | 569436-00 | 1 | GASKET | QS | |
1.15 EUR | ||
| 57 | 569437-00 | 1 | HOLDER | QS | |
5.45 EUR | ||
| 58 | 569438-00 | 1 | WASHER | QS | |
1.15 EUR | ||
| 59 | 569439-00 | 1 | SLIDER | QS | |
1.15 EUR | ||
| 60 | 1002080-00 | 6 | SCREW | QS | |
|||
| 61 | 1003708-00 | 1 | HOUSING REPAIR KIT | Inc items 61-69-81 | QS | |
||
| 61 | 569440-00 | 1 | HANDLE COVER | QS | |
2.18 EUR | ||
| 62 | 90592921-01 | 2 | BRUSH & HOLDER 230V | QS | |
4.25 EUR | ||
| 63 | 569442-00 | 1 | SWITCH | Capax | QS | |
20.61 EUR | |
| 64 | 569443-00 | 1 | CAPACITOR | QS | |
1.15 EUR | ||
| 65 | 569444-00 | 1 | CORD PROTECTOR | QS | |
1.15 EUR | ||
| 66 | 569446-00 | 1 | CORDSET (EURO) | QS | |
3.64 EUR | ||
| 67 | 569447-00 | 1 | CABLE CLAMP | QS | |
|||
| 68 | 569448-00 | 1 | BRAND LABEL | QS | |
|||
| 69 | 1003708-00 | 1 | HOUSING REPAIR KIT | Inc items 61-69-81 | QS | |
||
| 69 | 569449-00 | 1 | HOUSING REAR | QS | |
7.88 EUR | ||
| 70 | 569450-00 | 1 | SLEEVE BEARING | QS | |
1.40 EUR | ||
| 71 | 000000-00 | 1 | NO LONGER AVAILABLE | QS | ||||
| 72 | 569452-00 | 1 | FIELD | QS | |
13.33 EUR | ||
| 73 | 569453-00 | 1 | BAFFLE | QS | |
1.15 EUR | ||
| 74 | 569454-00 | 1 | BEARING | 607 | QS | |
3.64 EUR | |
| 75 | 569455-00 | 1 | ARMATURE | QS | |
20.61 EUR | ||
| 76 | 569456-00 | 1 | BEARING | 608 | QS | |
2.18 EUR | |
| 77 | 569457-00 | 2 | SCREW | ST4.2 x 16 | QS | |
||
| 78 | 569458-00 | 1 | RING | STEEL 11 X 1.5 | QS | |
1.15 EUR | |
| 79 | 569459-00 | 1 | WASHER SPRING | QS | |
1.15 EUR | ||
| 80 | 569460-00 | 2 | SCREW | ST4.2 X 16 | QS | |
||
| 81 | 1002081-00 | 1 | COVER REAR | QS | |
|||
| 81 | 1003708-00 | 1 | HOUSING REPAIR KIT | Inc items 61-69-81 | QS | |
||
| 82 | 1002481-00 | 1 | INTERSHAFT SA | QS | |
20.61 EUR | ||
| 83 | 1002746-00 | 1 | SEAL | QS | |
1.15 EUR | ||
| 84 | 1002747-00 | 1 | RING | QS | |
|||
| 85 | 1002748-00 | 1 | SLEEVE | QS | |
1.15 EUR | ||
| 86 | 1002745-00 | 1 | RETAINER | QS | |
1.15 EUR | ||
| 800 | 870889-02 | 1 | GREASE | QS | |
12.13 EUR |
* Αυτές είναι ενδεικτικές τιμές οι οποίες μπορεί να διαφέρουν και δεν περιλαμβάνουν Φ.Π.Α και κόστος μεταφοράς. Διατηρούμε το δικαίωμα να αλλάξουμε τις τιμές και τους όρους χωρίς προηγούμενη ειδοποίηση.
