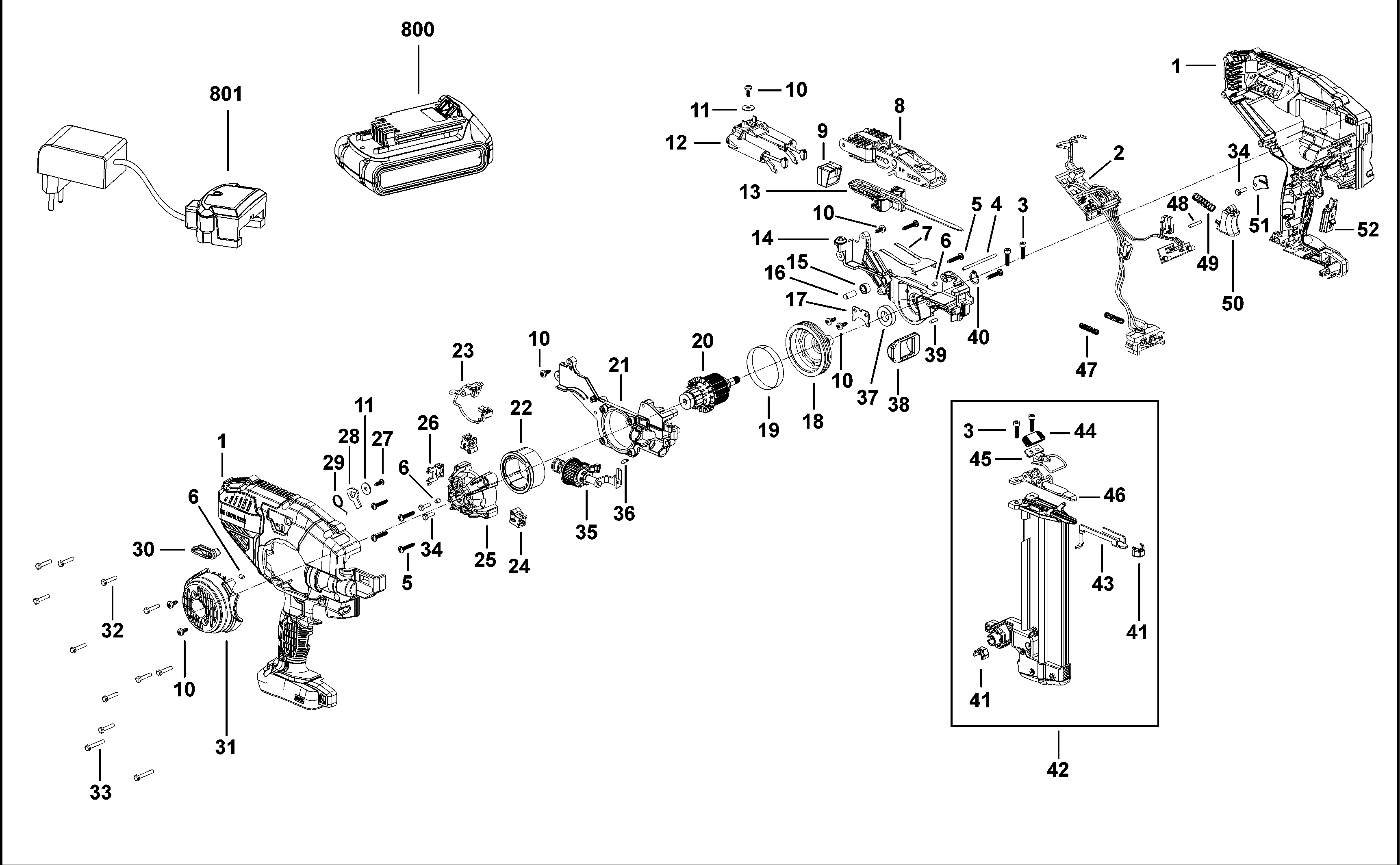

BCNG01 NAILER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N842982 | 1 | CLAMSHELL PAIR | QW |  |
||
| 2 | N850263 | 1 | PCB SA | QW | |
||
| 3 | 90614915 | 2 | SCREW | M4X0.70X20 | QW | |
|
| 4 | 330041-61 | 1 | ROLLER SPINDLE | QW | |
||
| 5 | 330045-07 | 7 | SCREW | QW | |
||
| 6 | 90621610 | 3 | PLUG | QW | |
||
| 7 | 90615815 | 1 | LEAF SPRING | QW | |
||
| 8 | NA000883 | 1 | COVER-TOP | QW | |||
| 9 | NA000884 | 1 | BUMPER | QW | |
||
| 10 | 330045-05 | 7 | SCREW | QW | |
||
| 11 | 90621828 | 2 | WASHER | QW | |
||
| 12 | NA000880 | 1 | RETURN DEVICE ASSEMBLY | QW | |
||
| 13 | NA000881 | 1 | DRIVER | QW | |
||
| 14 | 90614654 | 1 | FRAME LH | NEED BEARING INC | QW | |
|
| 14 | NA000886 | 1 | FRAME SA | INC. 37 | QW | ||
| 14 | 000000-99 | 1 | Part number or price not available | QW | |||
| 15 | 90633321 | 1 | SKID | QW | |
||
| 16 | N082403 | 1 | PIN | QW | |
||
| 17 | 90622035 | 1 | PLATE | QW | |
||
| 18 | 90614719 | 1 | FLYWHEEL | QW | |
||
| 19 | 90635366 | 1 | DAMPER | QW | |||
| 20 | N500628 | 1 | ARMATURE SA | QW | |
||
| 21 | N500107 | 1 | FRAME RH | QW | |
||
| 22 | N503300 | 1 | MAGNET | QW | |
||
| 23 | N748025 | 1 | TUBE SA | QW | |
||
| 24 | 90624386 | 2 | BRUSHBOX | QW | |
||
| 25 | 90624621 | 1 | BRIDGE | QW | |
||
| 26 | 90621006 | 1 | HOLDER | QW | |
||
| 27 | 582193-00 | 1 | SCREW | QW | |
||
| 28 | 90629863 | 1 | PIVOT | QW | |
||
| 29 | 90615568 | 1 | SPRING TORSION | QW | |
||
| 30 | N854083 | 1 | LEVER | QW | |
||
| 31 | 90624433 | 1 | COVER HOUSING | QW | |
||
| 32 | 90626630 | 10 | SCREW | QW | |
||
| 33 | 90626633 | 2 | SCREW | QW | |
||
| 34 | 330019-38 | 3 | SCREW | QW | |
||
| 35 | NA000882 | 1 | GUIDE | DEPTH | QW | |
|
| 36 | N403227 | 1 | DETENT | QW | |
||
| 37 | 90559833 | 1 | BEARING | QW | |
||
| 38 | 90641347 | 1 | BUMPER | QW | |
||
| 39 | 588470-00 | 1 | PIN | QW | |
||
| 40 | 90615722 | 1 | RING | QW | |
||
| 41 | N854079 | 2 | PAD | QW | |
||
| 42 | N855950 | 1 | MAGAZINE SA | QW | |
||
| 43 | 90615561 | 1 | CONTACT | QW | |
||
| 44 | N545103 | 1 | GRIP | QW | |
||
| 45 | N854086 | 1 | PLATE | PINCH | QW | |
|
| 46 | N544928 | 1 | MAGAZINE INTERFACE | QW | |
||
| 47 | 90516498 | 2 | SPRING | QW | |
||
| 48 | 098185-20 | 1 | PIN | QW | |
||
| 49 | 90551259 | 1 | SPRING | QW | |
||
| 50 | 90615767-01 | 1 | TRIGGER | QW | |
||
| 51 | N492341 | 1 | HOUSING | QW | |
||
| 52 | 90620174-01 | 1 | TRIGGER | QW | |
||
| 800 | N879820 | 1 | BATTERY 18V - 2.0AH - 36WH | Li-Ion - BL2018-XJ | QW | |
|
| 801 | N517388 | 1 | CHARGER 230V | 1A | QW |
