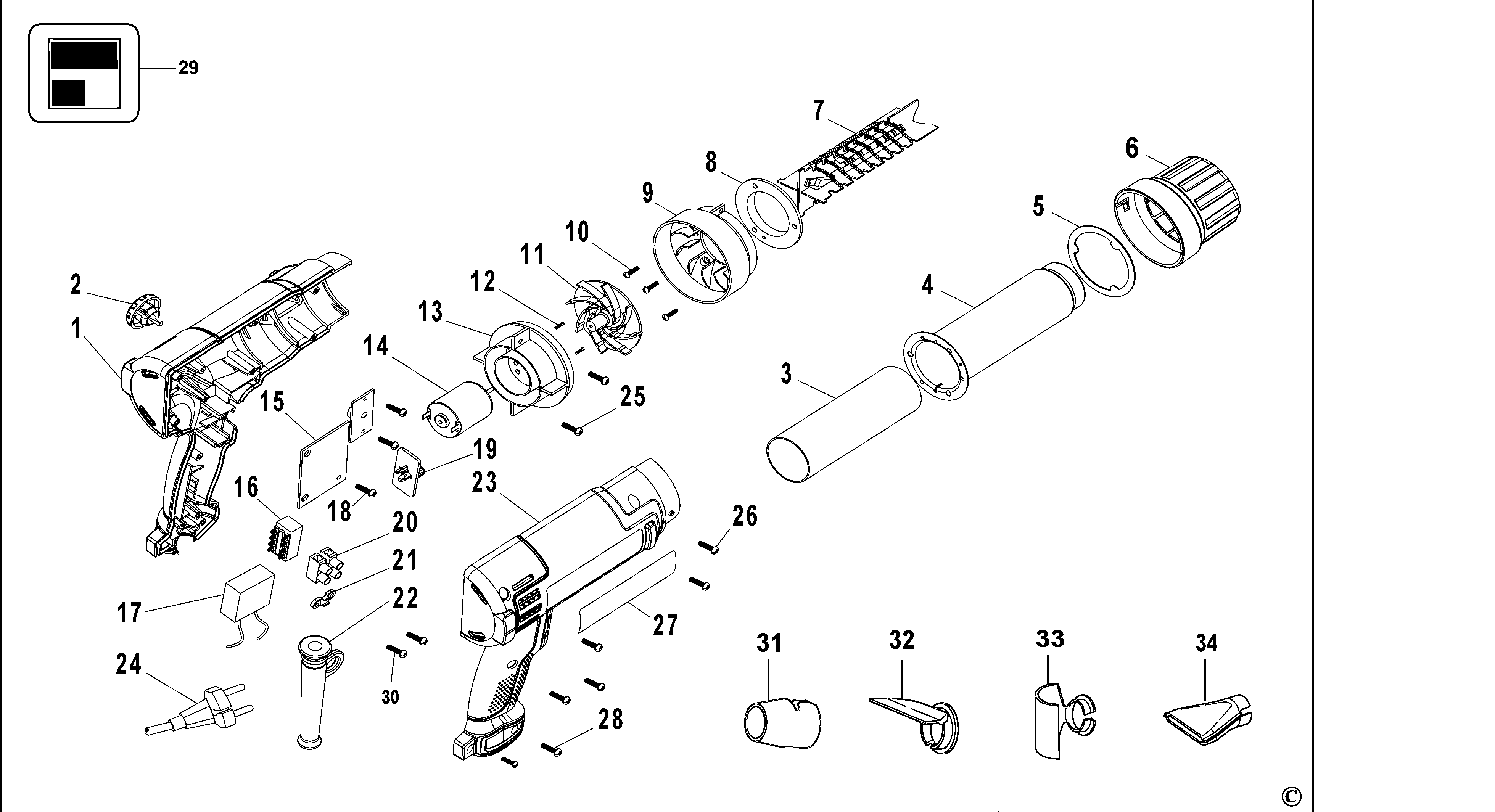

FME670 HEATGUN Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004594-14 | 1 | HOUSING LH | Stanley Fat Max | GB |  |
|
| 2 | 1004594-15 | 1 | KNOB | GB | |
||
| 3 | 1004594-16 | 2 | HEATSHIELD | GB | |
||
| 4 | 1004594-17 | 1 | TUBE METAL | GB | |
||
| 5 | 1004594-18 | 1 | RING | GB | |
||
| 6 | 1004594-19 | 1 | COLLAR | SFM | GB | |
|
| 7 | 1004594-20 | 1 | HEATING ELEMENT | GB | |
||
| 8 | 1004594-21 | 1 | INSULATOR | GB | |
||
| 9 | 1004594-22 | 1 | COVER | GB | |
||
| 10 | 1004594-23 | 3 | SCREW | M3x10mm | GB | |
|
| 11 | 1004594-24 | 1 | FAN | GB | |
||
| 12 | 1004594-25 | 2 | SCREW | GB | |
||
| 13 | 1004594-26 | 1 | MOUNTING BRACKET | GB | |
||
| 14 | 1004594-27 | 1 | MOTOR | GB | |
||
| 15 | 1004594-28 | 1 | PCB | GB | |
||
| 16 | 1004594-29 | 1 | SWITCH | GB | |
||
| 17 | 1004594-30 | 1 | CAPACITOR | 0.33µf 275v | GB | |
|
| 18 | NA000881 | 1 | DRIVER | GB | |
||
| 19 | 1004594-32 | 1 | SWITCH COVER | GB | |
||
| 20 | 1004594-33 | 1 | TERMINAL BLOCK | GB | |
||
| 21 | 1004594-34 | 1 | CORD CLAMP | GB | |
||
| 22 | 1004594-35 | 1 | CORD PROTECTOR | GB | |
||
| 23 | 1004594-36 | 1 | HOUSING RH | SFM | GB | |
|
| 24 | 1004594-38 | 1 | CORDSET | GB | |
||
| 25 | 1004594-39 | 4 | SCREW | ST2.9x16mm | GB | |
|
| 26 | 1004594-40 | 6 | SCREW | ST2.9x16mm | GB | |
|
| 27 | 1004594-41 | 1 | LABEL | Brand | GB | |
|
| 28 | 1004594-42 | 3 | SCREW | ST2.9x10mm | GB | |
|
| 29 | 1004594-43 | 1 | RATING PLATE | GB | |
||
| 30 | 1004594-45 | 2 | SCREW | ST2.9x15mm | GB | |
|
| 31 | 90562883 | 1 | NOZZLE | GB | |
||
| 32 | 90562884 | 1 | NOZZLE | GB | |
||
| 33 | 90562885 | 1 | NOZZLE | GB | |
||
| 34 | 90562886 | 1 | NOZZLE | GB | |
