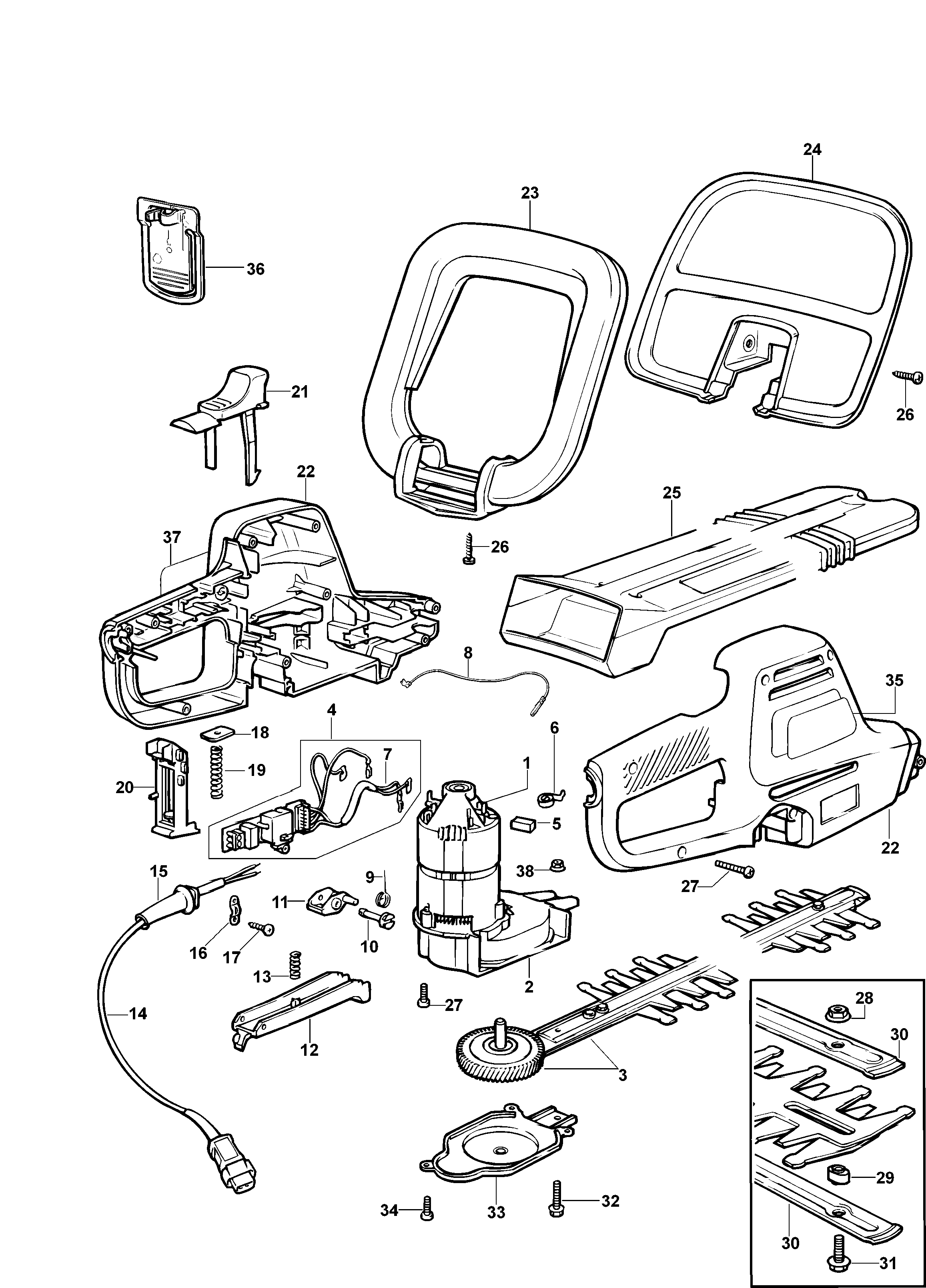

D43HS HEDGECLIPPER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 798940-49 | 1 | MOTOR & GEARCASE | GB |  |
||
| 1 | 6010357-83 | 2 | HOUSING SA | GB | |
||
| 2 | 798886 | 1 | GEARCASE SA | GB | |
||
| 2 | 1004594-39 | 2 | SCREW | ST2.9x16mm | GB |  |
|
| 3 | 798894-20 | 1 | BLADE & GEAR SA | GT440 | GB | |
|
| 3 | 798894-07 | 1 | BLADE & GEAR SA | GT435 | GB | |
|
| 3 | 798894-08 | 1 | BLADE & GEAR SA | GT445 | GB | |
|
| 3 | 798894-08 | 1 | BLADE & GEAR SA | D60HS | GB | |
|
| 3 | 798894-19 | 1 | BLADE & GEAR SA | GT430 | GB | |
|
| 3 | 798894-01 | 1 | BLADE & GEAR SA | GT410 | GB | ||
| 3 | 798894-18 | 1 | BLADE & GEAR SA | GT420-D43HS | GB | |
|
| 3 | 798894-18 | 1 | BLADE & GEAR SA | GT425 | GB | |
|
| 3 | 1004594-40 | 2 | SCREW | ST2.9x16mm | GB | |
|
| 4 | 798936-01 | 1 | SWITCH SA | GB | |
||
| 4 | 11389-1520001-1 | 2 | MAGAZINE | GB | |||
| 5 | 832998-04 | 2 | BRUSH 230V | GB | |
||
| 5 | 6010397-34 | 2 | DOOR | GB | |
||
| 6 | 747634 | 2 | SPRING BRUSH | GB | |
||
| 6 | 11321-1520001-1 | 2 | SPACER | GB | |||
| 7 | 796324 | 1 | LEAD SA | GB | |
||
| 7 | 11396-0644709 | 1 | BRACKET | GB | |
||
| 8 | 811594 | 1 | LEAD SA | GB | |
||
| 8 | 1004573-21 | 2 | ROLLER | 9mm | GB | |
|
| 9 | 798935 | 1 | SPRING | GB | |
||
| 9 | 1004722-37 | 2 | RATING PLATE | GB | |
||
| 10 | 799317 | 1 | PIN | GB | |
||
| 10 | 1004721-98 | 8 | SCREW | GB | |
||
| 11 | 799318 | 1 | PIVOT | GB | |
||
| 11 | 2040400-05060-0 | 1 | PIN | GB | |||
| 12 | 798897-02 | 1 | TRIGGER | GT425 (ORANGE) | GB | |
|
| 12 | 798897-02 | 1 | TRIGGER | GT435 (ORANGE) | GB | |
|
| 12 | 798897-02 | 1 | TRIGGER | GT445 (ORANGE) | GB | |
|
| 12 | 798897-01 | 1 | TRIGGER | GT410 (BLACK) | GB | |
|
| 12 | 798897-01 | 1 | TRIGGER | GT420-D43HS (BLACK) | GB | |
|
| 12 | 798897-01 | 1 | TRIGGER | GT430 (BLACK) | GB | |
|
| 12 | 798897-01 | 1 | TRIGGER | GT440 (BLACK) | GB | |
|
| 12 | 798897-01 | 1 | TRIGGER | D60HS (BLACK) | GB | |
|
| 12 | 6010356-23 | 1 | FAN | GB | |||
| 13 | 806128 | 1 | SPRING | GB | |
||
| 14 | 330048-52 | 1 | CORDSET (SPLASH) | GB | |
||
| 14 | 1004594-42 | 16 | SCREW | ST2.9x10mm | GB | |
|
| 15 | 770235 | 1 | PROTECTOR | GB | |
||
| 16 | 821070 | 1 | CORD CLAMP | GB | |
||
| 16 | 1004573-10 | 1 | TRIGGER | GB | |
||
| 17 | 821057 | 2 | SCREW | No 6 x 12.7mm | GB | |
|
| 18 | 805608 | 1 | RETAINER | GB | |
||
| 18 | 1004719-96 | 1 | CORDSET | GB | |
||
| 19 | 806189 | 1 | SPRING | GB | |
||
| 19 | N659081 | 1 | CLAMSHELL HALF | GB | |
||
| 20 | 798934 | 1 | PUSHROD | GB | |
||
| 20 | 6010398-18 | 1 | LID | BOWL | GB | ||
| 21 | 373081 | 1 | LOCK BUTTON | GB | |
||
| 22 | 798666-08 | 1 | CLAMSHELL PAIR | GB | |
||
| 22 | 6010398-75 | 1 | CAPACITOR SA | GB | |
||
| 23 | 798911-05 | 1 | HANDLE SA | GT410 | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT420-D43HS | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT430 | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT440 | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT425 | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT435 | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT445 | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | D60HS | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT410 | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT420-D43HS | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT430 | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT440 | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT425 | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT435 | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | GT445 | GB | |
|
| 23 | 798911-05 | 1 | HANDLE SA | D60HS | GB | |
|
| 23 | 6010412-22 | 1 | SWITCH | GB | |||
| 24 | 798901-04 | 1 | GUARD | GT410 | GB | |
|
| 24 | 798901-04 | 1 | GUARD | GT420-D43HS | GB | |
|
| 24 | 798901-04 | 1 | GUARD | GT430 | GB | |
|
| 24 | 798901-04 | 1 | GUARD | GT440 | GB | |
|
| 24 | 798901-04 | 1 | GUARD | D60HS | GB | |
|
| 24 | 798901-04 | 1 | GUARD | GT435 | GB | |
|
| 24 | 798901-04 | 1 | GUARD | GT425 | GB | |
|
| 24 | 798901-04 | 1 | GUARD | GT445 | GB | |
|
| 24 | 90556435-02 | 1 | MOTOR HOUSING SA | GB | |||
| 25 | 579517-01 | 1 | SHEATH | GT440 | GB | |
|
| 25 | 579517-01 | 1 | SHEATH | GT445 | GB | |
|
| 25 | 579517-01 | 1 | SHEATH | D60HS | GB | |
|
| 25 | 798900-03 | 1 | SHEATH | GT435 | GB | |
|
| 25 | 798900-03 | 1 | SHEATH | GT430 | GB | |
|
| 25 | 798900-01 | 1 | SHEATH | GT410 | GB | ||
| 25 | 798900-02 | 1 | SHEATH | GT425 | GB | |
|
| 25 | 1135Y-1524701-1 | 1 | LATCH | GB | |||
| 26 | 748636 | 6 | SCREW | GB | |
||
| 26 | 11376-0254701-1 | 1 | SPRING | GB | |||
| 27 | 747329 | 10 | SCREW | GB | |
||
| 27 | N645892 | 1 | CLAMSHELL HALF | GB | |
||
| 28 | 798755 | 7 | NUT M5 | GB | |||
| 28 | 6010356-44 | 1 | FILTER SA | GB | |||
| 29 | 798753 | 8 | SPACER | GB | |
||
| 29 | N647700 | 1 | WINDOW | GB | |
||
| 30 | 798745-04 | 1 | SUPPORT | GT445 | GB | |
|
| 30 | 798745-04 | 1 | SUPPORT | D60HS | GB | |
|
| 30 | 798745-03 | 1 | SUPPORT | GT435 | GB | |
|
| 30 | 798751-03 | 2 | SUPPORT | GT430 | GB | |
|
| 30 | 798751-04 | 2 | SUPPORT | GT440 | GB | |
|
| 30 | 798751-01 | 2 | SUPPORT | GT410 | GB | ||
| 30 | 798751-02 | 2 | SUPPORT | GT420-D43HS | GB | |
|
| 30 | 798751-02 | 1 | SUPPORT | GT425 | GB | |
|
| 30 | 1004773-73 | 1 | MICRO SWITCH | GB | |
||
| 31 | 371954-01 | 7 | BOLT | GB | |
||
| 31 | 1004594-25 | 4 | SCREW | GB | |
||
| 32 | 798754-03 | 1 | BOLT | GB | |
||
| 32 | N657927 | 1 | CLAMSHELL HALF | GB | |
||
| 33 | 798896 | 1 | GEARCASE COVER | GB | |
||
| 33 | 1004594-23 | 8 | SCREW | M3x10mm | GB | |
|
| 34 | 809015 | 3 | SCREW | GB | |
||
| 34 | 6010398-65 | 1 | WHEEL | GB | |
||
| 35 | 579967-00 | 1 | WARNING LABEL | GB | |
||
| 35 | 6010397-95 | 1 | SPEED REGULATOR | GB | |
||
| 36 | 373083 | 1 | CLIP | GB | |
||
| 36 | N645894 | 1 | DUST PORT | GB | |
||
| 37 | 798907-01 | 1 | BRAND LABEL | GT410 | GB | ||
| 37 | 798907-10 | 1 | BRAND LABEL | GT410 | GB | |
|
| 37 | 798907-10 | 1 | BRAND LABEL | GT420-D43HS | GB | |
|
| 37 | 798907-10 | 1 | BRAND LABEL | GT430 | GB | |
|
| 37 | 798907-10 | 1 | BRAND LABEL | GT440 | GB | |
|
| 37 | 798907-10 | 1 | BRAND LABEL | GT425 | GB | |
|
| 37 | 798907-10 | 1 | BRAND LABEL | GT435 | GB | |
|
| 37 | 798907-10 | 1 | BRAND LABEL | GT445 | GB | |
|
| 37 | 798907-10 | 1 | BRAND LABEL | D60HS | GB | |
|
| 37 | N657926 | 1 | CLAMSHELL HALF | GB | |
||
| 38 | 807817-01 | 1 | NUT M5 | GB | |
||
| 38 | 1004594-45 | 1 | SCREW | ST2.9x15mm | GB | |
|
| 41 | 6010404-41 | 1 | HANDLE | GB | |||
| 43 | 6010405-04 | 4 | SCREW | GB | |||
| 45 | 1004721-66 | 1 | NUT | GB | |
||
| 46 | 1004733-52 | 1 | LENS | GB | |||
| 47 | 6010398-43 | 1 | BLOCK | GB | |
||
| 49 | 6010402-79 | 1 | BUTTON | GB | |
||
| 50 | 6010356-30 | 1 | PIN | GB | |||
| 52 | 6010404-86 | 1 | CAGE | GB | |||
| 53 | 6010403-34 | 1 | CORD PULL | GB | |||
| 54 | 11398-1524704-1 | 1 | BUSHING | GB | |||
| 55 | 11382-0874703 | 1 | NOSE | GB | |
||
| 56 | 11388-1524701-1 | 1 | GUIDE | GB |
