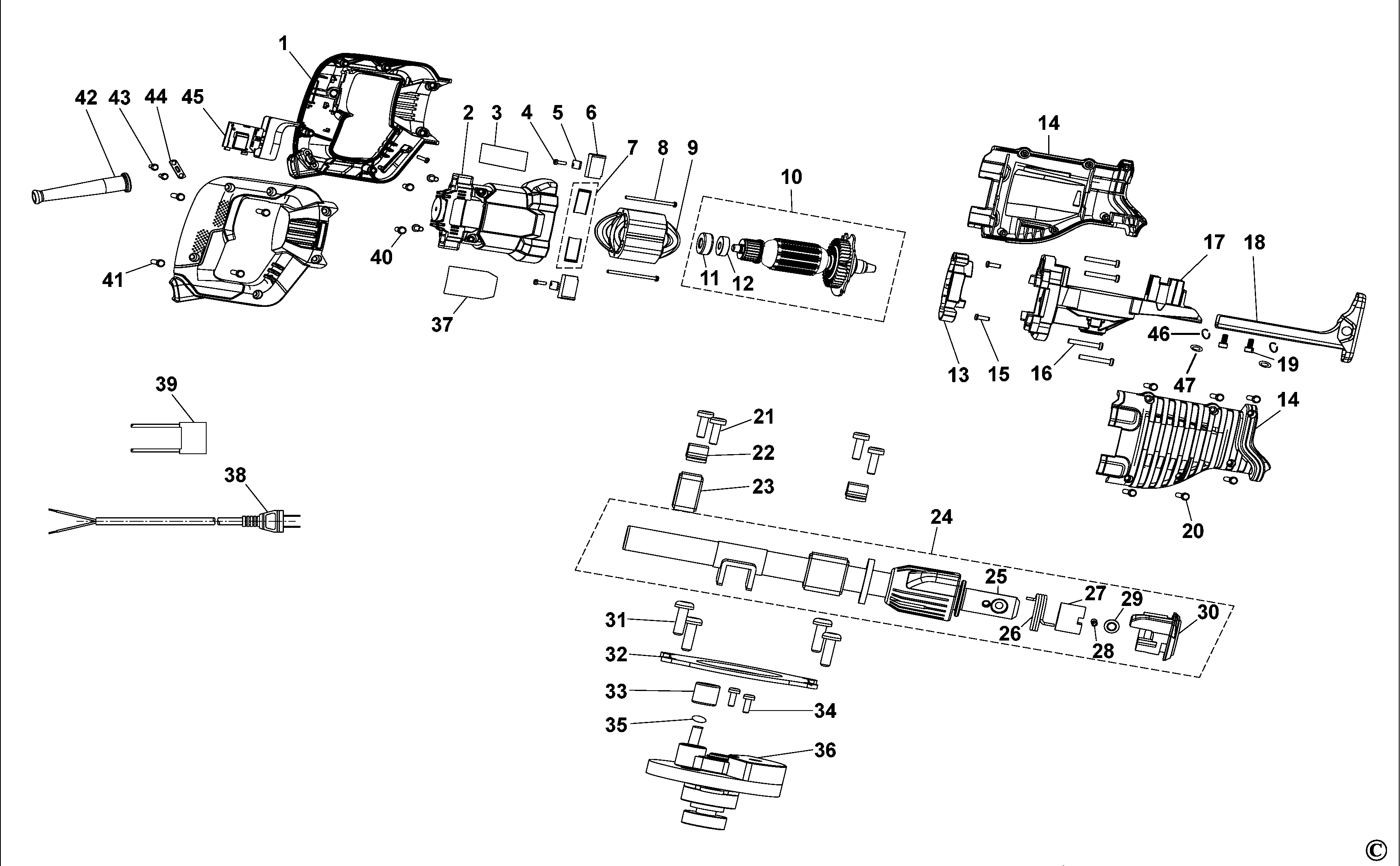

STEL365 RECIPROCATING SAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status | Guide Price |
|---|---|---|---|---|---|---|---|---|
| 1 | 90576909-01 | 1 | HANDLE SA | B1 |  |
|||
| 2 | 90576906-01 | 1 | FIELD CASE | B1 | |
|||
| 3 | 90575018 | 1 | LABEL | B1 | |
|||
| 4 | 330019-28 | 3 | SCREW | B1 | |
1.67 INR | ||
| 5 | 90561435 | 2 | BRUSH HOLDER | B1 | |
|||
| 6 | 90562316 | 2 | BOX | B1 | |
|||
| 7 | 90580750 | 1 | BRUSH | B1 | |
|||
| 8 | 330019-64 | 2 | SCREW | B1 | |
2.18 INR | ||
| 9 | 90577573 | 1 | FIELD SA | B1 | |
|||
| 10 | 90580752 | 1 | ARMATURE SA | B1 | |
|||
| 11 | 90565402 | 1 | CAP | B1 | |
|||
| 12 | 574853-08 | 1 | BEARING | B1 |  |
67.32 INR | ||
| 13 | 90562519 | 1 | BAFFLE FAN | B1 | |
|||
| 14 | 90566153 | 1 | HOUSING | B1 | |
|||
| 15 | 90568551 | 2 | SCREW | B1 | |
|||
| 16 | 330019-13 | 4 | SCREW | M4X19 T20 | B1 | |
4.81 INR | |
| 17 | 90563648 | 1 | GEARCASE | B1 | |
|||
| 18 | 90564578 | 1 | SHOE SA | B1 | |
|||
| 19 | 90569120 | 2 | SCREW | B1 | |
|||
| 20 | 330019-03 | 6 | SCREW | B1 | |
5.62 INR | ||
| 21 | 330045-45 | 4 | SCREW | B1 | |
101.95 INR | ||
| 22 | 90563826 | 2 | BEARING PLATE | B1 | |
|||
| 23 | 90563824 | 1 | BEARING HOLDER | B1 | |
|||
| 24 | 90564572 | 1 | SHAFT SA | B1 | |
|||
| 25 | 90570989 | 1 | SHAFT | B1 | |
|||
| 26 | 90562333 | 1 | SPRING | B1 | |
|||
| 27 | 90562334 | 1 | SLEEVE | B1 | |
|||
| 28 | 90570102 | 1 | PIN | B1 | |
|||
| 29 | 90562314 | 1 | PIN | B1 | |
|||
| 30 | 90562332 | 1 | COLLAR | B1 | |
|||
| 31 | 616037-00 | 4 | SCREW | B1 | ||||
| 32 | 90563820 | 1 | THRUST PLATE | B1 | |
|||
| 33 | 385238-00 | 1 | BEARING NEEDLE | B1 | |
60.96 INR | ||
| 34 | 622484-00 | 2 | SCREW | M4x16 THD FMG | B1 | |||
| 35 | 582717-00 | 1 | WASHER | B1 | |
8.22 INR | ||
| 36 | 90564577 | 1 | GEAR SA | B1 | |
|||
| 37 | 90615772 | 1 | RATING LABEL | B1 | |
|||
| 38 | 90578995-52 | 1 | CORDSET | B1 | |
|||
| 39 | 90568607 | 1 | CAPACITOR | B1 | |
|||
| 40 | 330019-12 | 4 | SCREW | B1 | |
10.94 INR | ||
| 41 | 330019-13 | 4 | SCREW | M4X19 T20 | B1 | |
4.81 INR | |
| 42 | 330005-01 | 1 | CORD PROTECTOR | B1 | |
17.36 INR | ||
| 43 | 330019-01 | 2 | SCREW.TEMP | M3.63 x 9.5mm T15 | B1 | |
2.22 INR | |
| 44 | 329301-00 | 1 | CORD CLAMP | B1 | |
7.61 INR | ||
| 45 | 90563353 | 1 | SWITCH | B1 | |
|||
| 46 | 488808-00 | 1 | WASHER LOCK | BDMS200 | B1 | |
1.85 INR | |
| 47 | 099361-10 | 1 | WASHER | B1 | |
