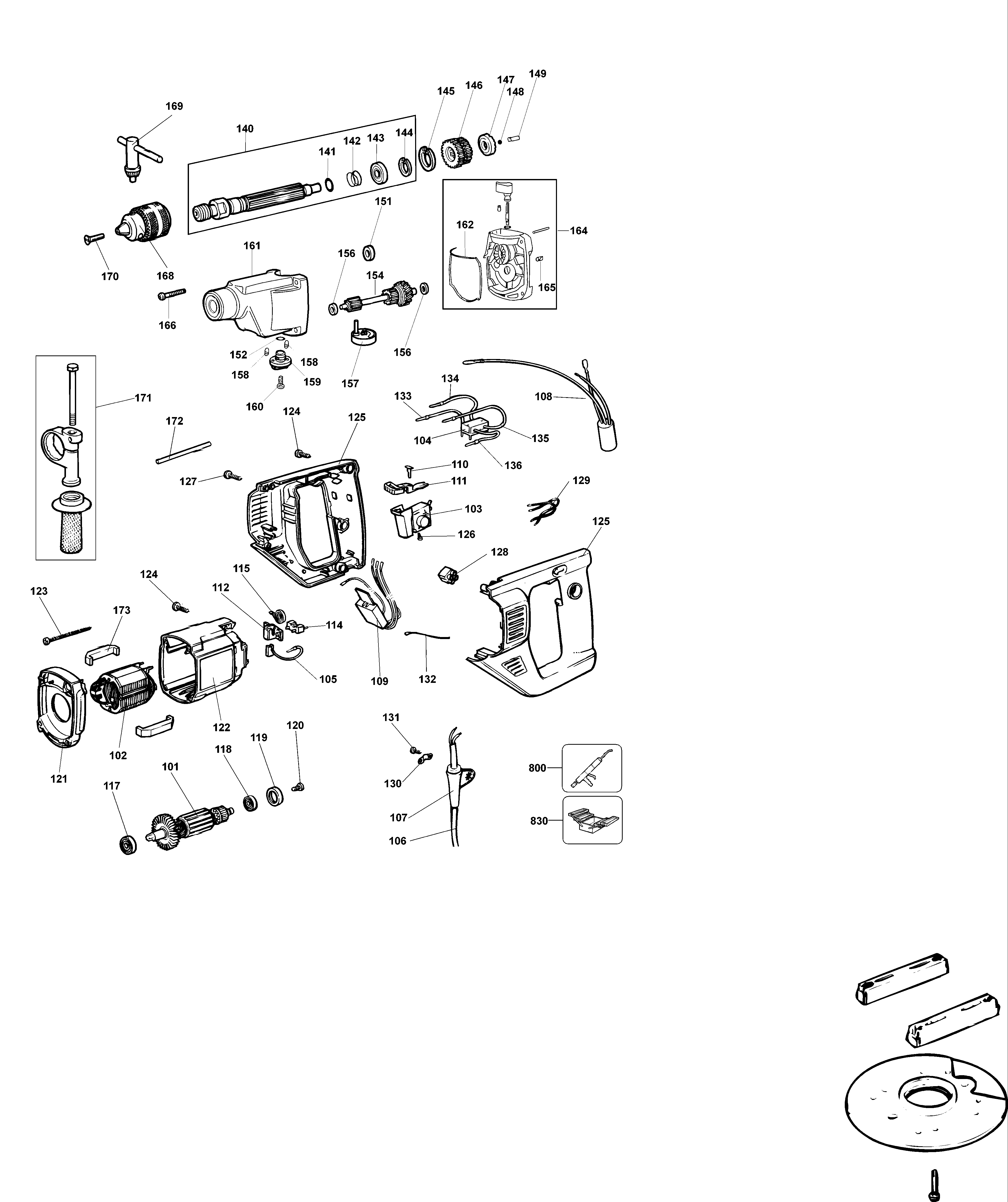

DW165L DRILL Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 328620-10 | 1 | ARMATURE 230V | XD |  |
||
| 102 | 572393-02 | 1 | FIELD 230V | XD | |
||
| 103 | 324556-49 | 1 | SWITCH | XD | |
||
| 104 | 324400-00 | 1 | SWITCH REVERSE | XD | |
||
| 105 | 323660-08 | 2 | BRUSH | XD | |
||
| 106 | 330060-65 | 1 | CORDSET | XD | |
||
| 107 | 320785 | 1 | CORD PROTECTOR | XD | |
||
| 109 | 324552-06 | 1 | ELECTRONIC 240V | XD | |
||
| 110 | 324165-02 | 1 | INSERT | XD | |
||
| 111 | 323490-08 | 1 | LEVER | XD | |
||
| 112 | 323496-02 | 2 | BRUSH HOLDER | XD | |
||
| 114 | 491366-00 | 2 | BRUSH KIT | XD | |
||
| 115 | 872843 | 2 | SPRING | XD | |
||
| 117 | 329047-49 | 1 | BEARING SET | XD | |
||
| 118 | 330003-19 | 1 | BEARING | XD |  |
||
| 119 | 870052 | 1 | SLEEVE | XD | |
||
| 120 | 911276 | 1 | SCREW | XD | |
||
| 121 | 326184-08 | 1 | BAFFLE | XD | |
||
| 122 | 324188-05 | 1 | FIELDCASE | XD | |
||
| 123 | 916231 | 2 | SCREW | XD | |
||
| 124 | 323924-02 | 4 | SCREW | XD | |
||
| 125 | 324189-05 | 1 | HANDLE SA | XD | |
||
| 126 | 911026 | 3 | SCREW | XD | |
||
| 127 | 330065-13 | 2 | SCREW | XD | |
||
| 128 | 323534-00 | 1 | CONNECTOR | XD | |||
| 129 | 323635-10 | 2 | LEAD 70MM | XD | |
||
| 130 | 821070 | 1 | CORD CLAMP | XD | |
||
| 131 | 323924-08 | 2 | SCREW | XD | |||
| 132 | 878846 | 1 | LEAD 360MM | XD | |
||
| 133 | 877358 | 1 | LEAD 220MM | XD | |
||
| 134 | 877357 | 1 | LEAD 160MM BLACK | XD | |
||
| 135 | 877357 | 1 | LEAD 160MM BLACK | XD | |
||
| 136 | 323768-02 | 1 | LEAD 120MM BLACK | XD | |
||
| 140 | 327313-02 | 1 | SPINDLE SA | XD | |
||
| 141 | 930028-00 | 1 | O RING | XD | |
||
| 142 | 931890 | 1 | SPRING | XD | |
||
| 143 | 605040-25 | 1 | BEARING,BALL | XD | |
||
| 144 | 944137-00 | 1 | CIRCLIP | XD | |
||
| 145 | 931398 | 1 | RING | XD | |
||
| 146 | 1008288-00 | 1 | GEAR | XD | |
||
| 147 | 945706-00 | 1 | RATCHET | XD | |
||
| 148 | 917725 | 1 | BALL | 3.5mm | XD | |
|
| 149 | 330041-25 | 1 | PIN | XD | |
||
| 151 | 1006305-00 | 1 | SEAL | XD | |
||
| 152 | 323711-34 | 1 | O RING | XD | |
||
| 154 | 577850-01 | 1 | INTERSHAFT SA | XD | |
||
| 156 | 930102-00 | 2 | WASHER | XD | |
||
| 157 | 327314-00 | 1 | ACTUATOR | XD | |
||
| 158 | 326467-00 | 2 | DETENT | XD | |
||
| 159 | 327309-01 | 1 | KNOB | XD | |
||
| 160 | 330065-22 | 1 | SCREW | XD | |
||
| 161 | 327311-00 | 1 | GEARCASE SA | XD | |
||
| 162 | 327291-00 | 1 | SEAL | XD | |
||
| 164 | 583999-01 | 1 | GEARCASE COVER SA | XD | |
||
| 165 | 916010 | 1 | BUMPER | XD | |
||
| 166 | 330065-10 | 4 | SCREW | XD | |
||
| 168 | 5140071-68 | 1 | CHUCK 13MM | XD | |
||
| 169 | 330034-07 | 1 | CHUCK KEY | XD | |
||
| 170 | 575237-00 | 1 | SCREW | XD | |
||
| 171 | 939794-02 | 1 | HANDLE SIDE SA | XD | |
||
| 172 | 580787-00 | 1 | DEPTH STOP | XD | |
||
| 173 | 327033-00 | 2 | DAMPER | XD | |
||
| 800 | 870889-02 | 1 | GREASE | XD | |
||
| 830 | 559596-99 | 1 | S.T.PULLER | XD | |
