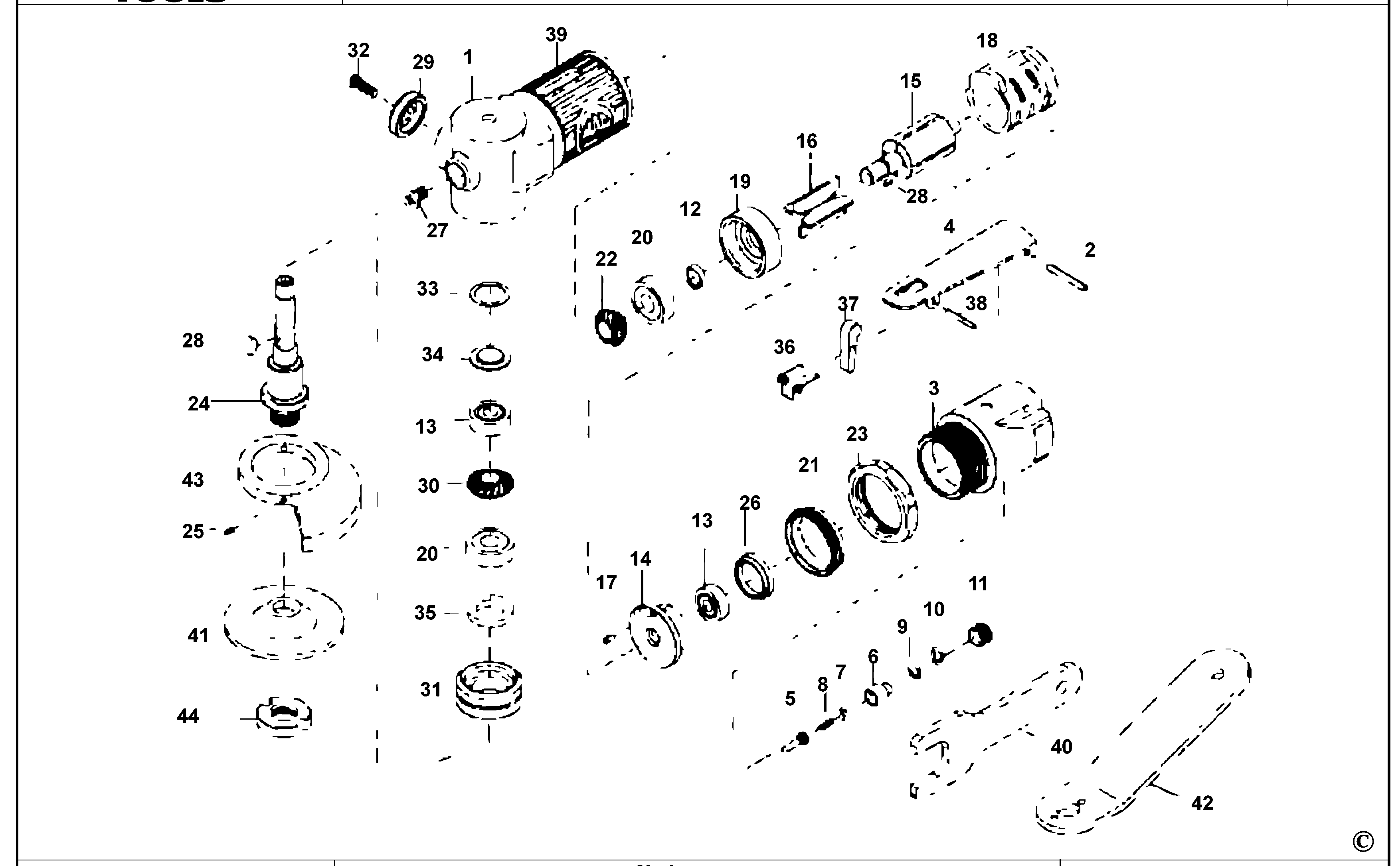

AG200 GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | AG200-01 | 1 | HOUSING MOTOR | GB |  |
||
| 2 | AD3800AH-02 | 1 | PIN | GB | |
||
| 3 | AG200-03 | 1 | BODY | GB | |
||
| 4 | AG200-04 | 1 | LEVER | GB | |
||
| 5 | AG200-05 | 1 | VALVE STEM | GB | |
||
| 6 | AG200-06 | 1 | VALVE | GB | |
||
| 7 | AD54013 | 1 | O RING | GB | |
||
| 8 | AG200-08 | 1 | SPRING | GB | |
||
| 9 | AG200-09 | 1 | O RING | GB | |
||
| 10 | AG200-10 | 1 | O RING | GB | |
||
| 11 | AG200-11 | 1 | PLUG | GB | |
||
| 12 | AG200-12 | 1 | SPACER | GB | |
||
| 13 | AG200-13 | 1 | BEARING | GB | |
||
| 14 | AG200-14 | 1 | PLATE | GB | |
||
| 15 | AG200-15 | 1 | ROTOR | GB | |
||
| 16 | AG200-16 | 1 | BLADE | GB | |
||
| 17 | AG200-17 | 1 | PIN | GB | |||
| 18 | AG200-18 | 1 | CYLINDER | GB | |
||
| 19 | AG200-19 | 1 | PLATE | GB | |
||
| 20 | AD3800AH-20 | 1 | BEARING,BALL | GB | |
||
| 21 | AG200-21 | 1 | NUT | GB | |
||
| 22 | AG200-22 | 1 | PINION GEAR | GB | |
||
| 23 | AG200-23 | 1 | LOCK | GB | |
||
| 24 | AG200-24 | 1 | SPINDLE | GB | |||
| 25 | AG200-25 | 1 | SCREW | GB | |
||
| 26 | AG200-26 | 1 | CAP | GB | |
||
| 27 | AG200-27 | 1 | SCREW | GB | |
||
| 28 | AG200-28 | 1 | KEY | GB | |
||
| 29 | AG200-29 | 1 | COVER | GB | |
||
| 30 | AG200-30 | 1 | GEAR | GB | |
||
| 31 | AG200-31 | 1 | NUT | GB | |
||
| 32 | AG200-32 | 1 | SCREW | GB | |
||
| 33 | AG200-33 | 1 | FELT | GB | |
||
| 34 | AG200-34 | 1 | COVER | GB | |
||
| 35 | AG200-35 | 1 | SEAL | GB | |
||
| 36 | AG200-36 | 1 | SPRING | GB | |
||
| 37 | AG200-37 | 1 | BAR | GB | |
||
| 38 | AG200-38 | 1 | PIN | GB | |
||
| 39 | AG200-39 | 1 | GRIP | GB | |
||
| 40 | AG200-40 | 1 | SPANNER | GB | |
||
| 41 | 000000-00 | 1 | NO LONGER AVAILABLE | GB | |||
| 42 | AG200-42 | 1 | WRENCH SPECIAL | GB | |
||
| 43 | AG200-43 | 1 | GUARD | GB | |
||
| 44 | AG200-44 | 1 | NUT | GB | |
