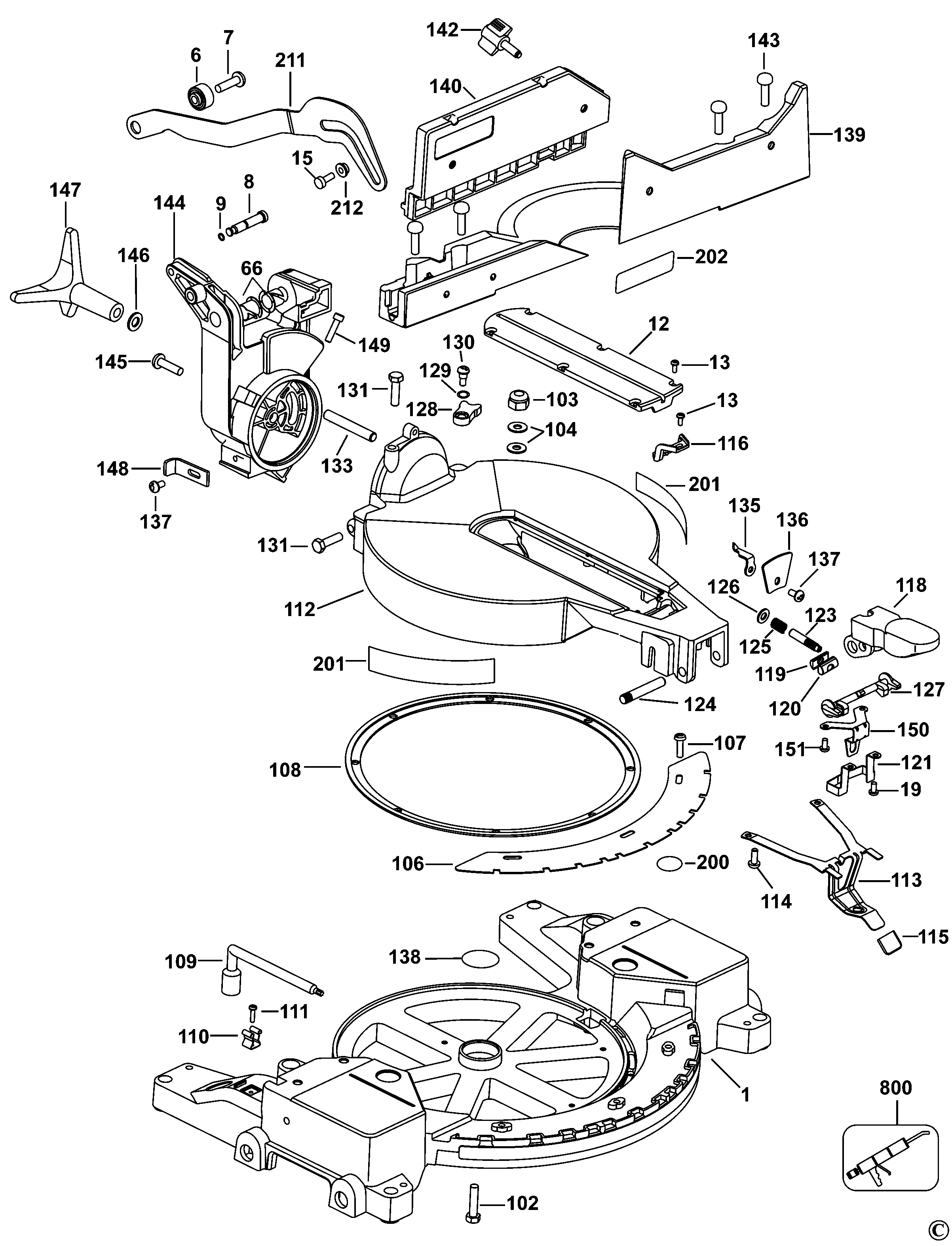

DW715 MITRE SAW Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N142886 | 1 | BASE SA | B1 |  |
||
| 2 | N169612 | 1 | ARM | B1 | |
||
| 3 | 146751-00 | 1 | SHAFT | B1 |  |
||
| 4 | 146732-00 | 2 | SPACER | B1 | |
||
| 5 | N034943 | 1 | SPRING TORSION | B1 | |
||
| 6 | 399042-00 | 1 | BUSHING | B1 | |
||
| 7 | 330045-32 | 1 | SCREW | M8x1.25x20 MTLTHDFMG | B1 | |
|
| 8 | 387130-00 | 1 | LOCKING PIN | B1 | |
||
| 9 | 34158-00 | 1 | SEAL | B1 | |
||
| 10 | 150075-00 | 2 | SCREW | B1 | |
||
| 11 | 148296-00 | 2 | WASHER | B1 | |
||
| 12 | 146726-02 | 1 | PLATE | B1 | |
||
| 13 | 330045-05 | 7 | SCREW | B1 | |
||
| 14 | N158824 | 1 | GUARD REAR | B1 | |
||
| 15 | 330045-23 | 3 | SCREW | B1 | |
||
| 16 | N142065 | 1 | DUST PORT | B1 | |
||
| 17 | 153460-00 | 1 | SCREW | B1 | |||
| 18 | 153669-00 | 1 | CORD CLAMP | B1 | |
||
| 19 | 330045-13 | 3 | SCREW | M5x0.8x10 MTL THDFMG | B1 | |
|
| 20 | N169605 | 1 | GUARD LOWER | B1 | |
||
| 21 | 394589-01 | 2 | SCREW | B1 | |
||
| 28 | 330019-32 | 4 | SCREW | B1 | |
||
| 29 | 145344-01 | 1 | BLADE BOLT | M8 X 20 LH | B1 | |
|
| 30 | 650680-00 | 1 | WASHER OUTER CLAMP | B1 | |
||
| 31 | 152636-00 | 1 | BLADE HOLDER | B1 | |
||
| 32 | N158823 | 1 | INNER FLANGE | B1 | |
||
| 34 | N126140 | 1 | HANDLE SA | B1 | |
||
| 35 | 330045-08 | 4 | SCREW | B1 | |
||
| 36 | N548978V | 1 | SWITCH | B1 | |
||
| 37 | 384127-01 | 2 | SCREW | B1 | |
||
| 38 | 330019-12 | 1 | SCREW | B1 | |
||
| 39 | 3618-00 | 1 | CORD CLAMP | B1 | |
||
| 40 | 330019-02 | 1 | SCREW | B1 | |
||
| 41 | 393520-00 | 1 | TERMINAL BLOCK | B1 | |
||
| 42 | N172224 | 1 | MODULE | B1 | |
||
| 43 | N168456 | 1 | CORDSET | B1 | |
||
| 44 | N189009 | 1 | LEADWIRE | B1 | |
||
| 45 | 396375-01 | 1 | HANDLE | B1 | |
||
| 46 | 330019-22 | 1 | SCREW | M5.74x32 | B1 | |
|
| 48 | N166968 | 1 | FIELDCASE SA | B1 | |
||
| 49 | N200392 | 1 | BRAND LABEL | B1 | |||
| 50 | N166966 | 1 | ARMATURE 240V | B1 | |
||
| 52 | N171521 | 1 | END CAP | B1 | |||
| 53 | N043347 | 1 | BEARING | B1 | |
||
| 54 | 605040-27 | 1 | BEARING | B1 | |
||
| 56 | 614366-00 | 1 | BAFFLE FAN | B1 | |
||
| 59 | 330019-11 | 2 | SCREW | M4.55x13 T20 | B1 | |
|
| 60 | 614375-00 | 4 | SCREW | B1 | |
||
| 62 | 330045-45 | 1 | SCREW | B1 | |
||
| 63 | N141492 | 1 | RATING PLATE | B1 | |
||
| 66 | 645746-00 | 2 | BUSHING | B1 | |
||
| 80 | N126162 | 1 | DUST BAG SA | B1 | |
||
| 102 | 98025-35 | 2 | SCREW | B1 | |||
| 103 | 330021-02 | 1 | NUT | B1 | |
||
| 104 | 153792-00 | 2 | WASHER | B1 | |
||
| 106 | 391292-01 | 1 | DETENT | B1 | |
||
| 107 | 604410-00 | 3 | SCREW | B1 | |
||
| 108 | 391353-00 | 1 | PLATE | B1 | |
||
| 109 | 608563-02 | 1 | WRENCH SPECIAL | T30 x 13mm | B1 | |
|
| 110 | 391358-01 | 1 | HOLDER | B1 | |
||
| 111 | 330045-06 | 1 | SCREW | B1 | |
||
| 112 | N169603 | 1 | TABLE SA | B1 | |
||
| 113 | 650130-00 | 1 | SPRING | B1 | |
||
| 114 | 330045-22 | 2 | SCREW | M6X10, T30 | B1 | ||
| 115 | 148611-00 | 1 | COVER | B1 | |
||
| 116 | 398693-00 | 1 | POINTER | B1 | |
||
| 118 | 649430-00 | 1 | LEVER LOCK | MITER | B1 | |
|
| 119 | 621321-00 | 1 | NUT | MITER LOCK | B1 | |
|
| 120 | 621322-00 | 1 | NUT | MITER LOCK | B1 | |
|
| 121 | N240659 | 1 | CLAMPING BAR | B1 | |
||
| 123 | 626610-00 | 1 | ROD | B1 | |
||
| 124 | 626611-00 | 1 | PIN | B1 | |
||
| 125 | 58698-00 | 1 | SPRING | B1 | |
||
| 126 | 330016-03 | 1 | WASHER | B1 | |
||
| 127 | 650034-00 | 1 | CAM LEVER | B1 | |
||
| 128 | 391347-00 | 1 | PAWL | B1 | |
||
| 129 | 153655-00 | 1 | WASHER | B1 | |
||
| 130 | 153639-00 | 1 | SCREW | B1 | |
||
| 131 | 153797-01 | 2 | SCREW | HEX HD 5/16-18x30mm | B1 | |
|
| 133 | 146760-02 | 1 | STUD | B1 | |
||
| 135 | 391345-00 | 1 | POINTER | B1 | |
||
| 136 | 393570-00 | 1 | DUST DEFLECTOR | B1 | |
||
| 137 | 330045-55 | 3 | SCREW | M5x55 MTL THD FMG | B1 | |
|
| 138 | 49787-00 | 1 | O RING | B1 | |
||
| 139 | 626409-00 | 1 | FENCE | B1 | |
||
| 140 | N012301 | 1 | FENCE LH | W/LABEL | B1 | |
|
| 142 | 147107-07 | 1 | KNOB LOWER | B1 | |
||
| 143 | 98105-03 | 4 | SCREW | M8x25 FT HD THD FMG | B1 | ||
| 144 | N057724 | 1 | TRUNNION | B1 | |
||
| 145 | N167379 | 1 | SCREW | T40/Slot w/Patch Loc | B1 | |
|
| 146 | 330016-04 | 1 | WASHER | B1 | |
||
| 147 | N126150 | 1 | HANDLE | B1 | |
||
| 148 | 391350-00 | 2 | STOP PLATE | B1 | |
||
| 149 | 391346-00 | 1 | SCREW | B1 | |
||
| 150 | 650051-00 | 1 | PLATE | MITER GUIDE | B1 | |
|
| 151 | 650142-00 | 2 | SCREW | B1 | |
||
| 152 | 146710-00 | 1 | WIPER | B1 | |
||
| 153 | 145350-03 | 1 | BUTTON | B1 | |||
| 154 | N161335 | 1 | SPINDLE LOCK | B1 | |
||
| 155 | N142660 | 1 | SPINDLE & GEAR SA | B1 | |
||
| 156 | N142856 | 1 | GASKET | B1 | |
||
| 157 | 330045-14 | 1 | SCREW | B1 | |
||
| 158 | 701297-00 | 1 | SEAL | B1 | |
||
| 159 | 398736-00 | 1 | SPRING | B1 | |
||
| 189 | 5140186-31 | 1 | BRUSH PAIR | B1 | |
||
| 190 | 614368-00 | 2 | BRUSH CAP | B1 | |
||
| 200 | 394976-00 | 1 | LABEL | WARNING | B1 | |
|
| 201 | 630414-00 | 2 | WARNING LABEL | B1 | |||
| 202 | 630416-00 | 1 | WARNING LABEL | B1 | |||
| 203 | 148608-00 | 2 | INSERT | B1 | |
||
| 204 | 330004-06 | 1 | BEARING NEEDLE | B1 | |
||
| 205 | 393706-00 | 1 | LABEL | B1 | |
||
| 206 | 630403-00 | 1 | WARNING LABEL | B1 | |||
| 207 | N142192 | 1 | GUARD PLATE | B1 | |
||
| 208 | 330045-71 | 1 | SCREW | B1 | |
||
| 209 | 621037-00 | 1 | PLATE | B1 | |
||
| 210 | 146768-00 | 1 | BUMPER | B1 | |
||
| 211 | 391314-00 | 1 | LINK | B1 | |||
| 212 | 146740-01 | 1 | BUSH | B1 | |
||
| 213 | N391680 | 1 | RETAINER | B1 | |||
| 214 | N391680 | 1 | RETAINER | B1 | |||
| 215 | N034013 | 1 | SPRING | B1 | |
||
| 216 | 148295-00 | 1 | SLEEVE | B1 | |
||
| 217 | 146774-00 | 2 | ROLLER | B1 | |
||
| 218 | 603232-00 | 2 | CIRCLIP | EXTERNAL | B1 | |
|
| 223 | 87205-00 | 2 | PLUG | B1 | |
||
| 224 | 330045-25 | 1 | SCREW.TEMP | M6x25 MTL THD FMG | B1 | |
|
| 800 | 93488-00 | 1 | GREASE | B1 | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | B1 | |
