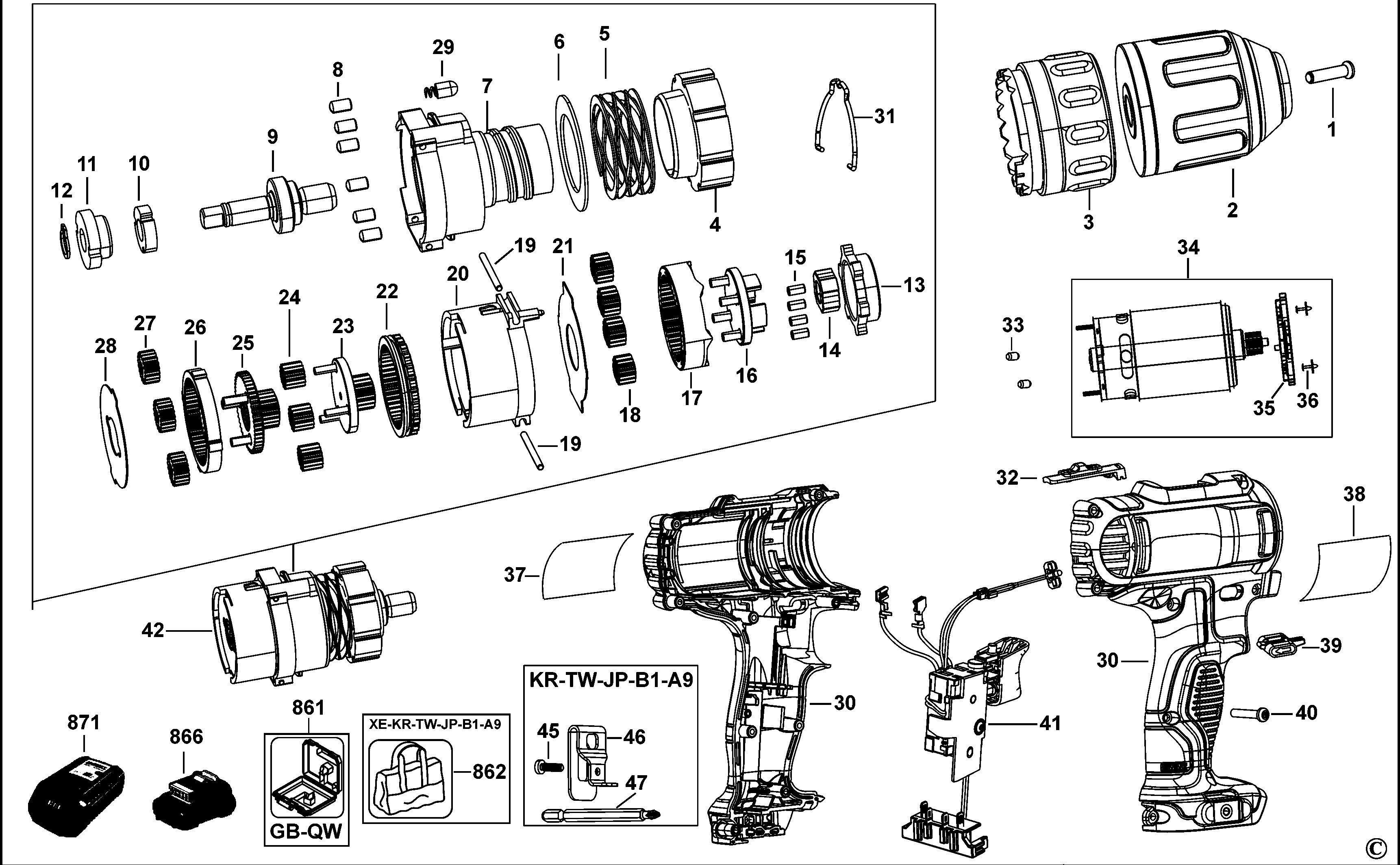

DCD710 CORDLESS DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 149518-01 | 1 | SCREW | B1 |  |
||
| 2 | N037542 | 1 | CHUCK KEYLESS | B1 | |||
| 3 | N034293 | 1 | COLLAR | B1 | |
||
| 4 | N032525 | 1 | ADJUSTER TORQUE | B1 |  |
||
| 5 | N032418 | 1 | SPRING | B1 | |
||
| 6 | N032524 | 1 | WASHER | B1 | |
||
| 7 | N032368 | 1 | HOUSING | B1 | |
||
| 8 | N032415 | 6 | PIN.CONICAL | B1 | |
||
| 9 | N078596 | 1 | SPINDLE SA | B1 | |
||
| 10 | N043820 | 1 | FELT SEAL | B1 | |
||
| 11 | N032761 | 1 | SLEEVE BEARING | B1 | |
||
| 12 | N034090 | 1 | RETAINER | B1 | |
||
| 13 | N032377 | 1 | LOCKING DEVICE | B1 | |
||
| 14 | N054706 | 1 | ANVIL | B1 | |
||
| 15 | N042040 | 4 | ROLLER | B1 | |
||
| 16 | N079008 | 1 | CARRIER SA | 3RD RED | B1 | |
|
| 17 | N079009 | 1 | GEAR | B1 | |
||
| 18 | N030759 | 4 | GEAR | B1 | |
||
| 19 | N030767 | 2 | PIN | B1 | |
||
| 20 | N030766 | 1 | HOUSING REAR | B1 | |
||
| 21 | N030761 | 1 | PLATE | B1 | |
||
| 22 | N079010 | 1 | GEAR | B1 | |
||
| 23 | N079016 | 1 | CARRIER SA | B1 | |
||
| 24 | N030765 | 3 | GEAR | B1 | |
||
| 25 | N079017 | 1 | CARRIER SA | B1 | |
||
| 26 | N079018 | 1 | GEAR | B1 | |
||
| 27 | N017243 | 3 | GEAR | B1 | |
||
| 28 | N034093 | 1 | PLATE | B1 | |
||
| 29 | 326467-00 | 1 | DETENT | B1 | |
||
| 30 | N031199 | 1 | CLAMSHELL SET | B1 | |
||
| 31 | N037108 | 1 | WIRE STEEL | B1 | |
||
| 32 | N037111 | 1 | SELECTOR | B1 | |
||
| 33 | N031603 | 2 | RUBBER | B1 | |
||
| 34 | N446251 | 1 | MOTOR SA | B1 | |
||
| 35 | N034382 | 1 | PLATE | B1 | |||
| 36 | 330024-54 | 2 | SCREW | B1 | |
||
| 37 | N128489 | 1 | BRAND LABEL | B1 | |
||
| 38 | N299700 | 1 | RATING LABEL | B1 | |
||
| 39 | N017247 | 1 | ACTUATOR FWD/REV | B1 | |
||
| 40 | 682211-00 | 9 | SCREW | B1 | |
||
| 41 | N075234 | 1 | SWITCH SA | B1 | |||
| 42 | N075843 | 1 | TRANSMISSION SA | B1 | |
||
| 45 | N042665 | 1 | SCREW | B1 | |
||
| 46 | N026657 | 1 | HOOK | B1 | |
||
| 47 | N041367 | 1 | BIT SCREWDRIVER | B1 | |
||
| 862 | N041318 | 1 | BAG | B1 | |||
| 866 | N140056 | 2 | BATTERY 10.8V - 1.5AH - 16.2WH | DCD710S2 | B1 | |
|
| 866 | N140056 | 3 | BATTERY 10.8V - 1.5AH - 16.2WH | DCD710S3 | B1 | |
|
| 871 | DCB100-QW | 1 | CHARGER 10.8V | B1 |
